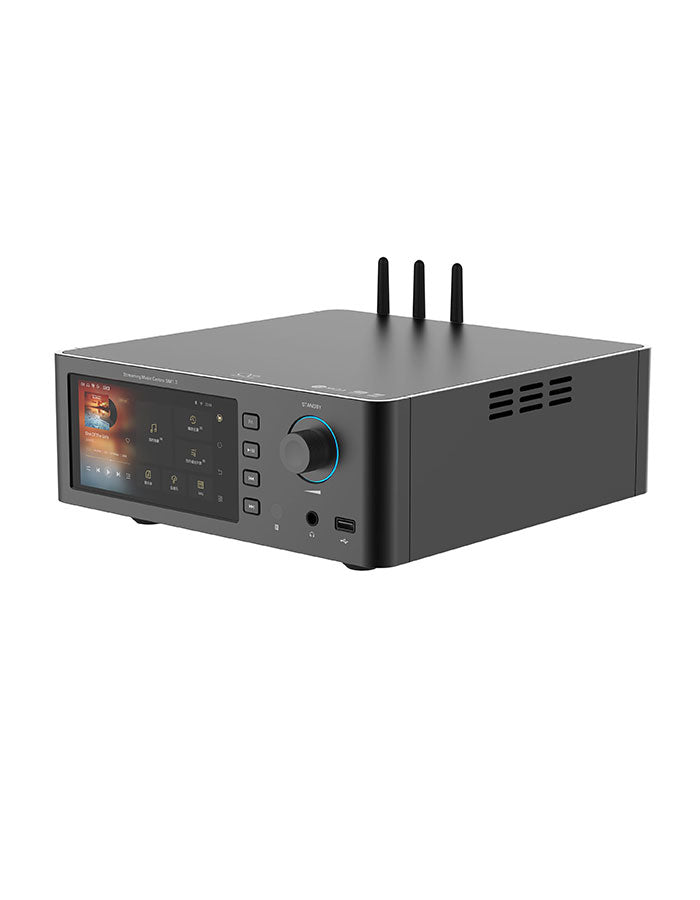

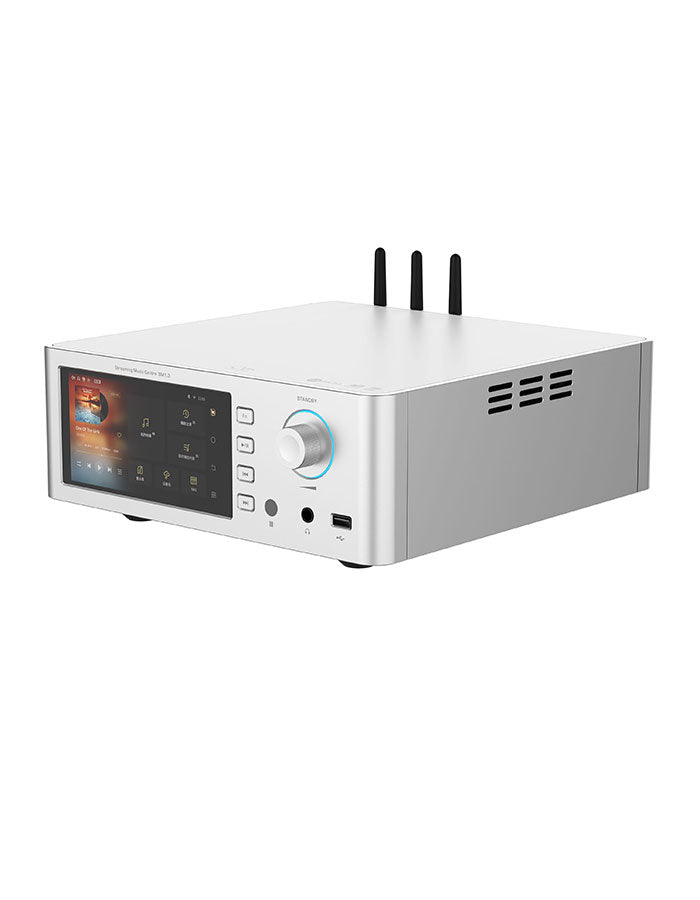

Shanling SM1.3 Desktop DAC/Streamer/Headphone Amplifier
In stock
Looking at the Shanling SM1.3 doesn’t give you any idea of the power, performance, and punch that come so naturally to this high-resolution streamer/DAC. Hearing it conveys a completely different impression. One you won’t soon forget.
Brand New In-House Developed System: upgraded Rockchip CPU 4GB & 64 GB ROM, highly customized user inferface, newly developed companion app for iOS and Android, flagship AKM AK4499EX DAC with AK4191 modulator, dual transformer split power supply, built-in dedicated headphone amplifier, SSD Slot, hi-res 32 bit, 768 kHz, DSSD512 & MQA

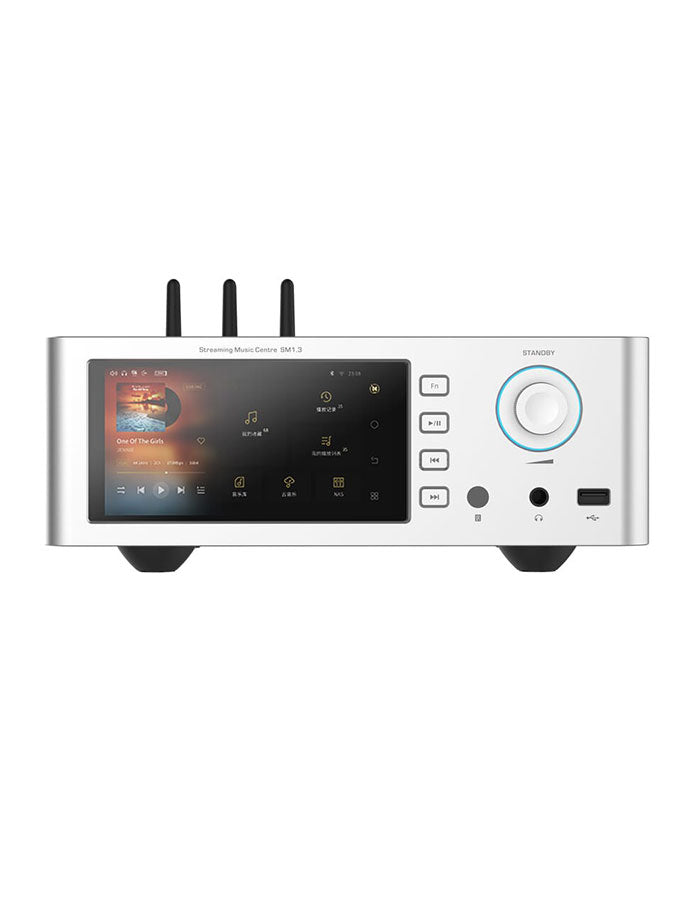

Refined & Robust: Following the standard set by the SACD & CD players, the SM1.3 adopts fairly minimalistic design that makes it easily fit into many households. Aluminum construction combined with glass top, pleasingly rounded shapes and a stunning 1080p 5.8- inch display makes for one high-quality feeling high-end device.
Convenient Menu Structure: Freshly designed UI focuses on simpler and faster access to all levels of the system, with further optimized main menu, settings and playback controls. Reduced number of elements and clear labeling leads to a cleaner lookingn system that's swift to navigate through.
Instant Music Access: Main menu provides immediate playback control and direct access to the music library.
Cross-Platform Compatibility: User interface was unified between SM1.3 and the new companion app, providing a friction- free transition between the device and it's remote operation.
Built in Streaming Options: With streaming apps directly at hand, you can enjoy Spotify, Tidal, Qobuz, Apple Music, Apple Classical, Amazon Music, Presto Music or KKBox. And with the new system for app updates, your streaming will always be up to date.
Fully Supported NAS: Connect SM1.3 to your local server for a convenient streaming experience, now with additional support of Samba for easier set up.
Weight: 6.4kg
Screen: 5.8-inch 1080P Sharp Touch Screen
Processor: Rockchip ARM CPU
DAC System: AKM AK4191EQ + AK4499EX DAC Chip
Storage: 64 GB Internal Memory + SSD M.2 Slot
External Drive Capacity: up to 2TB
Power Supply: 220 or 110V Region Locked
Bluetooth Version: 5.2
Bluetooth Codecs: LDAC, aptX HD, aptX Adaptive, aptX LL, aptX, AAC, SBC
Dual-Band WiFi 6: 2.4G / 5G
Supported Audio Formats: DSD, DXD, APE, FLAC, WAV, AIFF/AIF, DTS, MP3, WMA, AAC, OGG, ALAC, MP2, M4A, AC3, OPUS, TAK, etc. Supports CUE.
Hi-Res support: 768kHz / 32bit DSD512
Technical Parameters
RCA Output:
Output Level: 2.36V
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.0003%
Dynamic Range: 118dB
Channel Separation: 117dB
Signal-to-Noise Ratio: 118dB
XLR Output:
Output Level: 4.72V
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.0003%
Dynamic Range: 121dB
Channel Separation: 117dB
Signal-to-Noise Ratio: 121dB
Headphone Output:
Output Power:
Low Gain: 19mW@32Ω
Medium Gain: 180mW@32Ω
High Gain: 1015mW@32Ω
High Gain: 132mW@300Ω
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.0013%@32Ω
Dynamic Range: 117dB@32Ω
Channel Separation: 70dB@32Ω
Signal-to-Noise Ratio: 117dB@32Ω
Noise: 111dB
Output Impedance: 4.7Ω

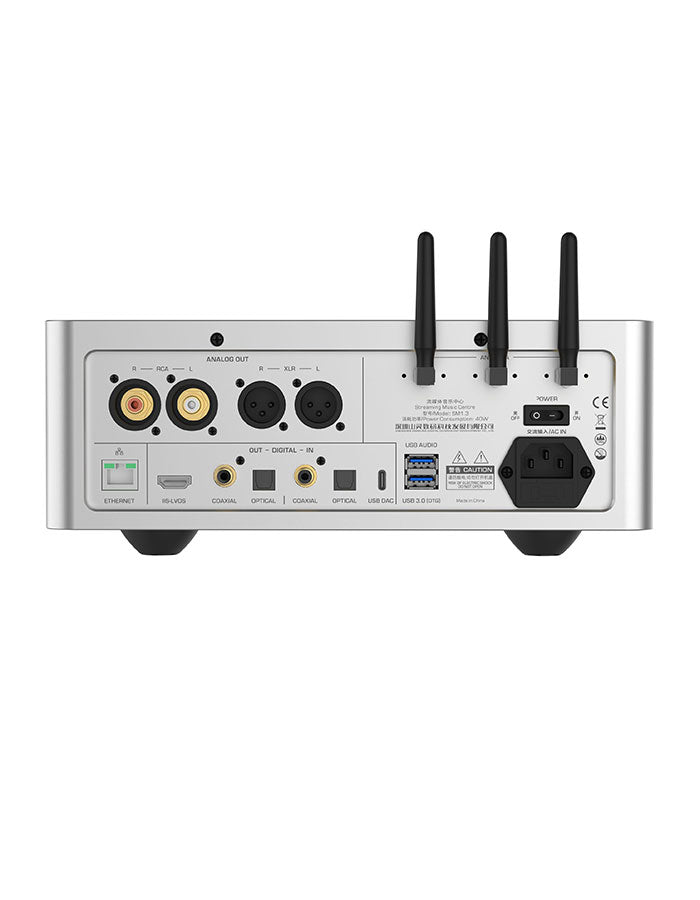

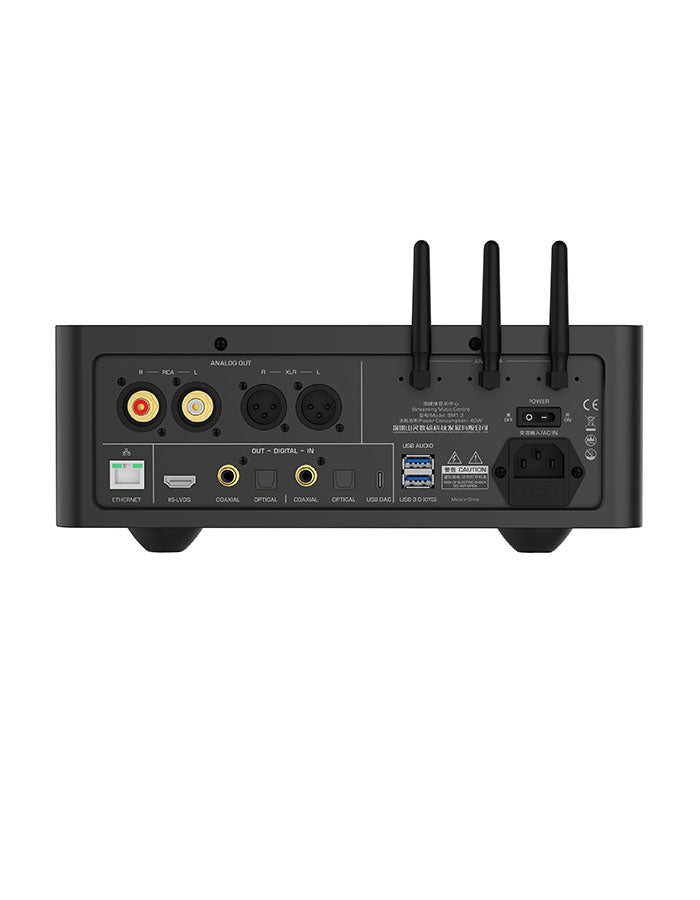

Digital Ports Specifications
Coaxial Input: PCM192kHz / 24bit
Optical Input: PCM192kHz / 24bit
USB Input: PCM768kHz / 32bit, DSD512
Coaxial Output: PCM192kHz / 24bit
Optical Output: PCM192kHz / 24bit
USB Output: PCM768kHz / 32bit, DSD512
I²S Output: PCM768kHz, DSD512
