Eversolo T10 Professional Grade Streaming Transport

Complementing its advanced power architecture, the T10 adopts a comprehensive electrical isolation design across its interfaces, creating multiple layers of isolation throughout critical digital signal paths. This approach helps minimize the effects of noise, interference, and signal crosstalk during audio transmission.

Inside the chassis, dedicated physical partitioning and electromagnetic shielding for the display further reduce interference coupling between subsystems, helping each circuit operate within a cleaner and more stable environment.

These engineering decisions are not intended to impose a particular sonic character. Instead, they are designed to reduce sources of uncertainty throughout the playback chain. With a quieter electrical environment, musical detail and dynamic nuance can emerge with greater clarity and naturalness.

The T10 incorporates an ultra-low phase-noise OCXO Crystal Oscillator, which minimizes frequency drift caused by changes in ambient temperature through precise thermal regulation. Working in conjunction with a low-noise PLL (Phase-Locked Loop) system, it further refines the clock signal and helps reduce the effects of jitter during digital transmission.

A more stable clocking environment contributes to more precise imaging, more natural vocal placement, and a more relaxed, engaging listening experience overall.

To meet the requirements of more advanced audio systems, the T10 also supports a 10MHz external master clock input and is compatible with both 50Ω and 75Ω impedance standards. This allows seamless integration with dedicated master clock systems for enhanced synchronization across the entire playback chain.

Beyond its digital audio architecture, the T10 also delivers substantial improvements in overall system performance. Powered by a high-performance 64-bit octa-core processor, together with 8GB of RAM and 64GB of onboard storage, it provides significantly greater responsiveness when managing large music libraries, switching between multiple tasks, and handling high-resolution audio workloads.

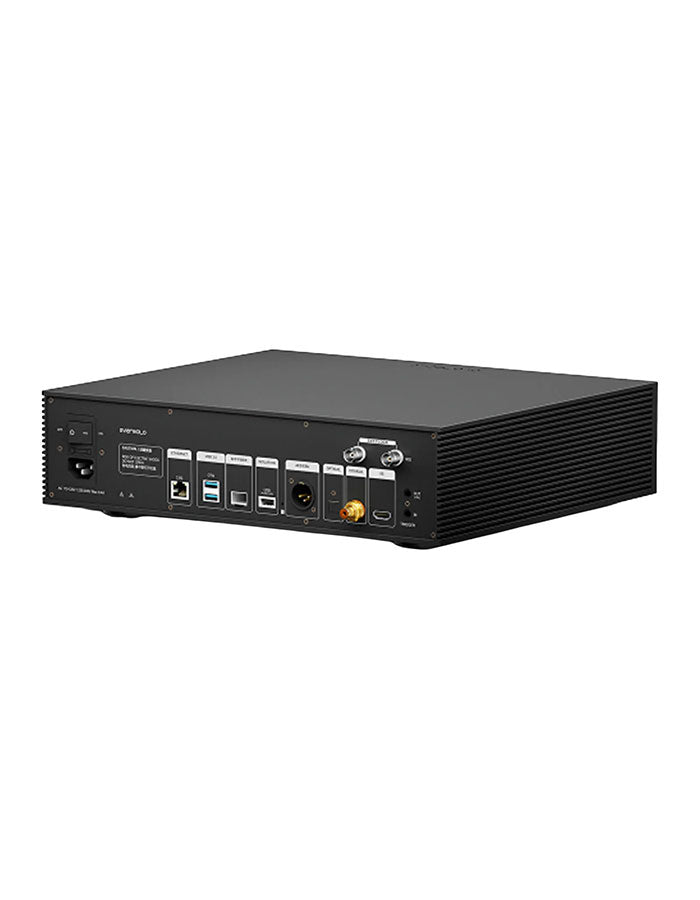

The T10 offers a comprehensive range of digital outputs, including IIS, USB Audio, AES/EBU, and Coaxial connections.

To ensure broad compatibility with different DAC architectures and pin configurations, the IIS interface supports eight selectable output modes. Both the USB Audio and Coaxial outputs incorporate high-precision isolation design to further reduce interference.

For network connectivity, the T10 is equipped with both a 2.5G Ethernet port and an SFP fiber interface. The 2.5G connection provides stable and efficient data transmission for high-bitrate audio streaming and large music libraries, while the SFP fiber connection can further reduce electrical interference from network equipment. Together, they offer greater flexibility and a cleaner connection path for high-performance digital audio systems.

Display  8.6″ LCD Touchscreen
Size  365 mm × 310 mm × 88 mm (W × D × H)
Memory  8GB DDR4 + 64GB eMMC
Power Supply  Custom O-Type Linear Power Supply
System Clock  Femtosecond Clock
USB-A Ports USB 3.0 ×2
Wi-Fi Dual-band Wi-Fi 6 (2.4G + 5G)
Ethernet  RJ-45 (10/100/1000/2500Mbps)
SFP Fiber Network Supports Gigabit single-mode single-fiber and single-mode dual-fiber optical modules (SFP module not included).
Built-in SSD Slots  Dual M.2 NVMe 3.0 2280 slots, supporting up to 16TB total storage expansion (SSD not included)
Music Services  TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, IDAGIO, Calm Radio, Internet Radio, TuneIn, Radio, Paradise, Deezer, SoundCloud, Presto Music, Apple Music…
Streaming Spotify Connect Lossless, TIDAL Connect, Qobuz Connect, DLNA, and more…
Control Methods Touchscreen, Android/iPhone/iPad/TV app control, remote control, Trigger Out
Audio Clock OCXO Clock system+ Phase-Locked Loop Technology
Music Playback  Supports up to stereo DSD512 Native and PCM 768kHz/32-bit
Isolated USB Audio Output Supports up to stereo DSD512 Native and PCM 768kHz/32-bit
Isolated IIS Audio Output Supports up to stereo DSD512 Native and PCM 768kHz/32-bit
Optical / Coaxial / AES/EBU Outputs Supports up to stereo PCM 192kHz/24-bit and DoP64
External Clock Input  Supports external 10MHz / 25MHz clock input with 50Ω / 75Ω impedance
