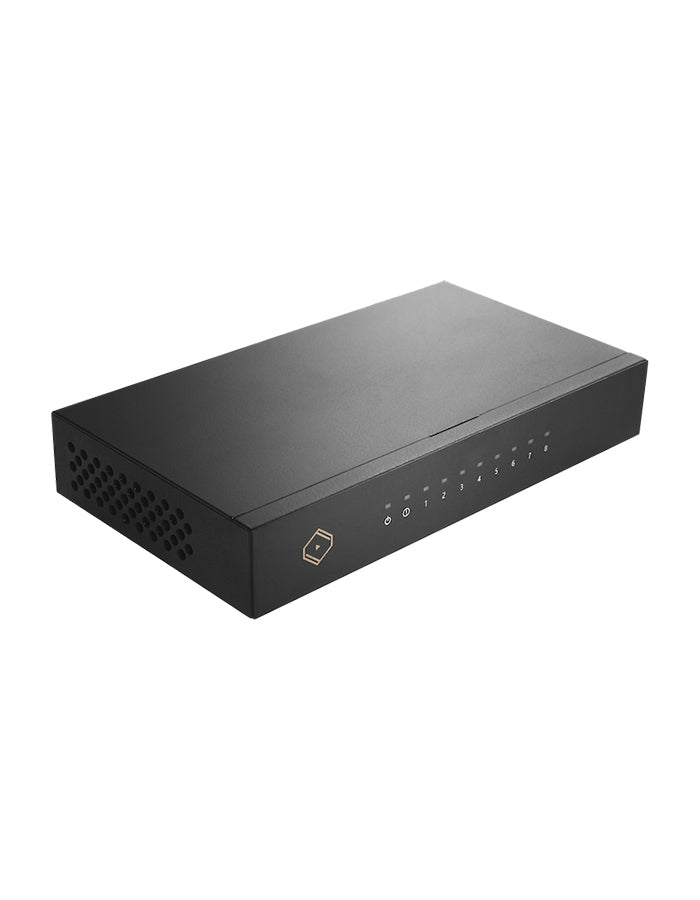

Silent Angel N8 Ethernet Switch
By improving power signal quality and network signal quality and TCXO technology, N8 improves the network signal quality. On N8, there are totally 8 high quality gigabit Ethernet ports, which make it possible to connecting to network ports on all audio devices at once. Through the network signal quality improvements from N8, it introduce significant improvement in music streaming playback through streaming service or NAS.
Silent Angel customized TCXO (Temperature Compensation crystal Oscillator) is highly accurate. The accuracy is 0.1ppm, which is much higher than normal crystal and higher than a normal TCXO. With this TCXO, N8 is able to generate more accurate network signal and provide more stable music data transmission.
Furthermore, to reduce noise from digital circuits, N8 has special chosen EMI absorber at the inner side of bottom case to absorb the EMI (Electromagnetic Interference) from the inner digital circuit and make the network signal and clock circuit more stable and clear. Ensure N8 works more stable and generate more clear network signals.N8 Features:

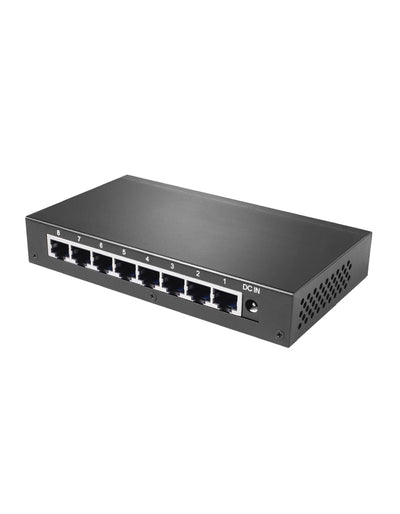

- Eight AUDIO GRADE 100 / 1000 Base-T Gigabit Ethernet Ports.
- Superior main clock accuracy.
- Customized Silent Angel Noise Absorber (SANA).
- Two noise isolator for main power circuit.
- Two noise isolator for clock generator circuit.
- Medical Grade power adaptor
|Interface||8 x Audio Grade 100 / 1000 Base-T|
|LED||1 x Power LED (Green)
1 x Alarm LED (Red)
8 x Port Status LEDs (Link / Activity)
|Main Clock Accuracy||0.1 ppm at 25 °C|
|EMI Absorber||Silent Angel Noise Absorber (SANA)|
|Noise Isolator||Main Power Circuit: 17.78 dB @ 100MHz x2
Clock Gen. Circuit: 20.79 dB @ 100MHz x2
|Power Adaptor||Medical Grade Power Adaptor*|
Power and Case
|Product Power Input||External Power 5VDC at 1A|
|Power Consumption||Max. 5W|
|Product Dimension||154.5 mm x 85 mm x 26 mm|
|Package Dimension||244 mm x 214 mm x 66 mm|
|Case Material||Metal in Black|
|Weight||1.2 KG ( Gross Weight )|
|Temperature||Operating 0 ~ 35 °C
Storage -20 ~ 70 °C
|Humidity||Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 95% RH (non-condensing)
