Garlubidor Divinity DAC
In stock
**Pre-order for December Shipping!**

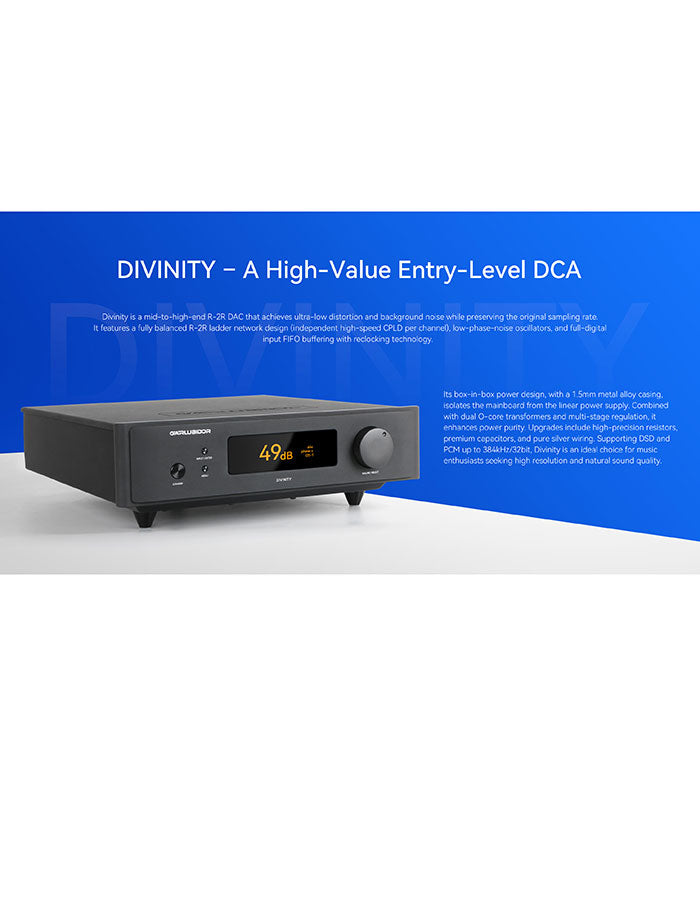

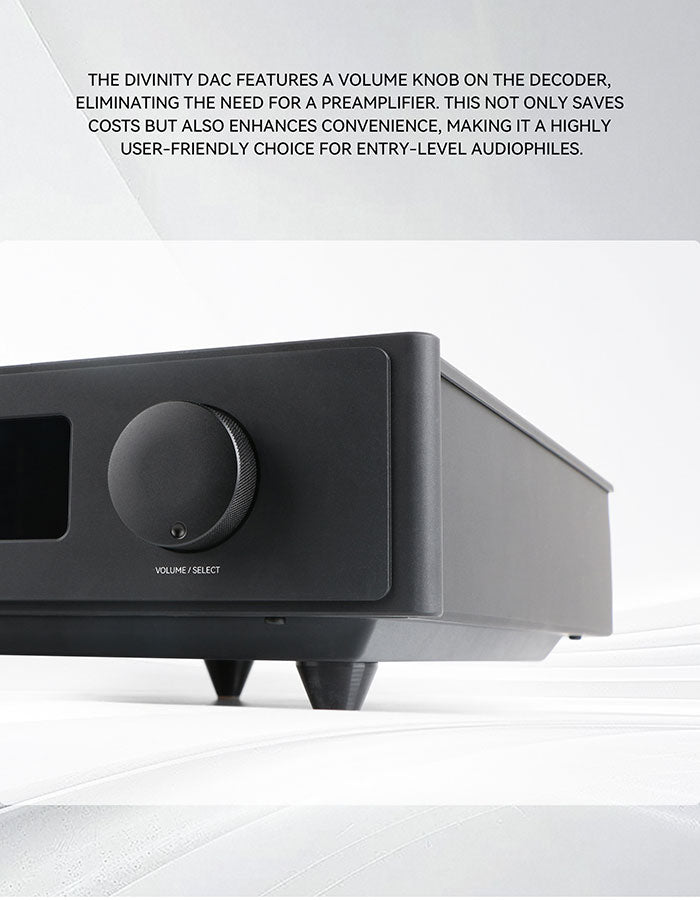

Divinity is a mid-to-high-end R-2R DAC that achieves ultra-low distortion and background noise while preserving the original sampling rate. It features a fully balanced R-2R ladder network design (independent high-speed CPLD per channel), low-phase-noise oscillators, and full-digital input FIFO buffering with reclocking technology. Featuring a knob on the decoder, it eliminates the need for a preamplifier. This not only saves costs but also enhances convenience, making it a highly user-friendly choice for entry-level audiophiles.

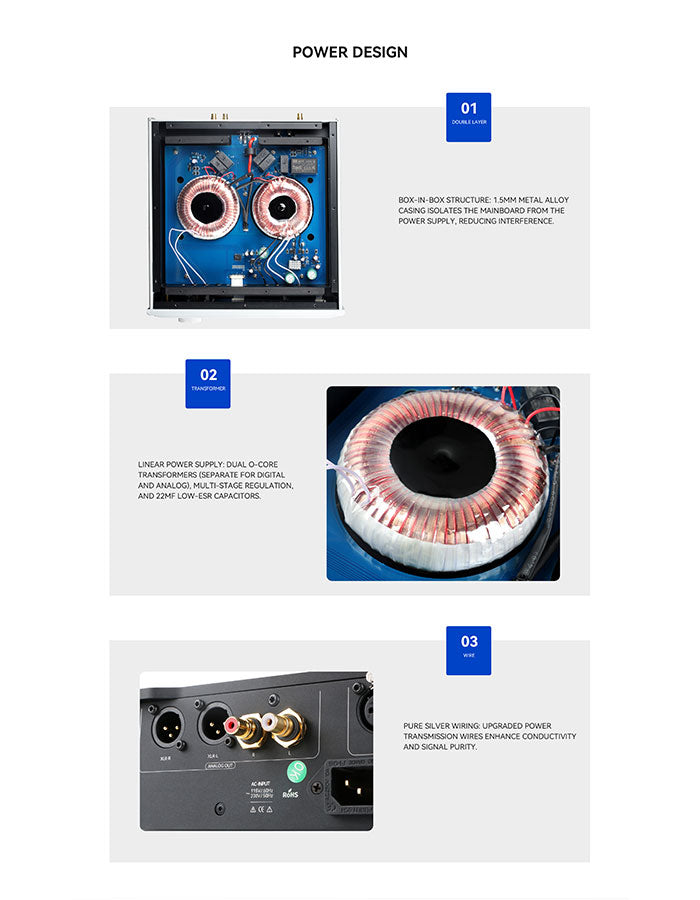

Its box-in-box power design, with a 1.5mm metal alloy casing, isolates the mainboard from the linear power supply. Combined with dual O-core transformers and multi-stage regulation, it enhances power purity. Upgrades include high-precision resistors, premium capacitors, and pure silver wiring. Supporting DSD and PCM up to 384kHz/32bit, Divinity is an ideal choice for music enthusiasts seeking high resolution and natural sound quality.

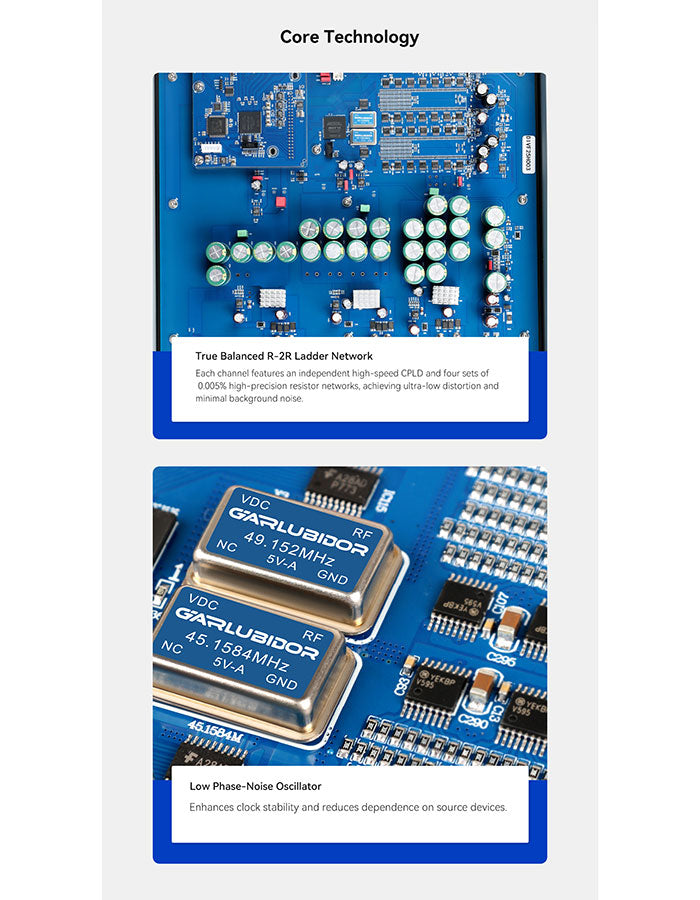

True Balanced R-2R Ladder Network - Each channel features an independent high-speed CPLD and four sets of 0.005% high-precision resistor networks, achieving ultra-low distortion and minimal background noise.
Low Phase-Noise Oscillator - Enchances clock stability and reduces dependence on source devices.

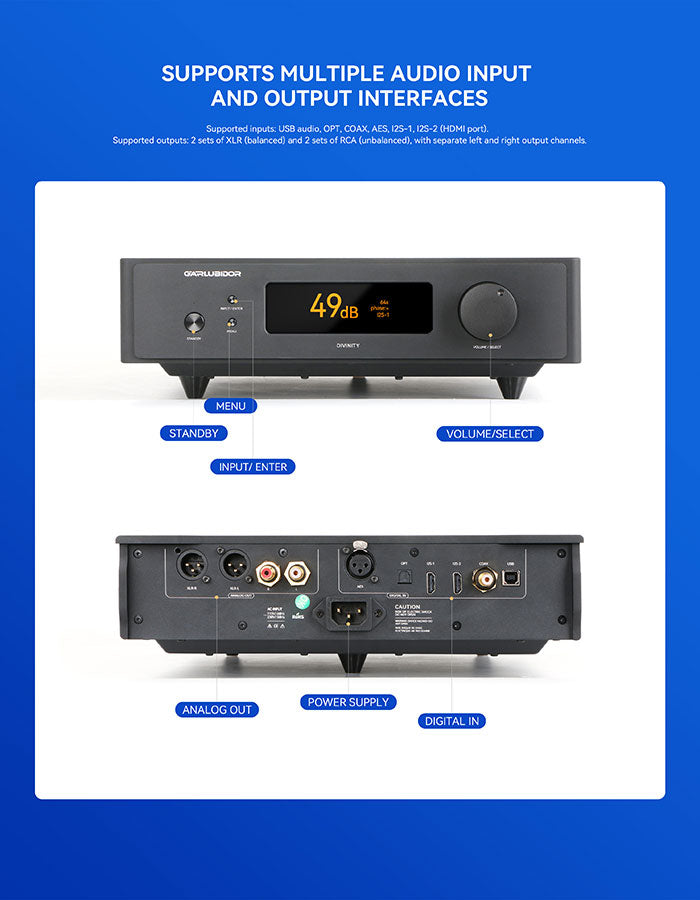

Supports Multiple Audio Input and Output Interfaces - Supported inputs: USB audio, OPT, COAX, AES, 12S-1, 12S-2 (HDMI port). Supported outputs: 2 sets of XLR (balanced) and 2 sets of RCA (unbalanced), with separate left and right output channels.

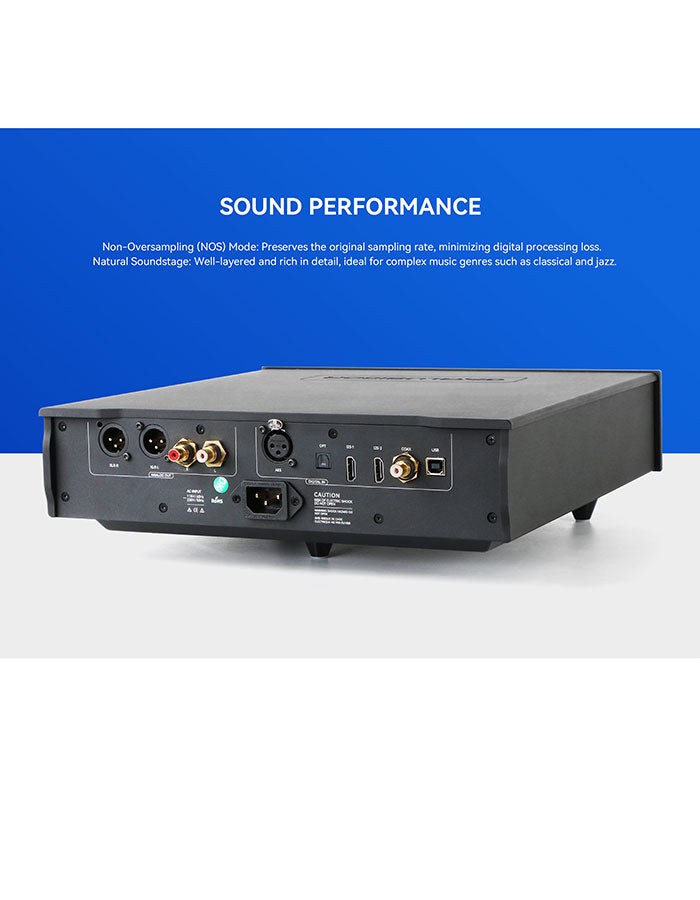

Sound Performance - Non-oversampling (NOS) mode: preserves the original sampling rate, minimizing digital processing loss. Natural soundstage: well-layered and rich in detail, ideal for complex music genres sch as classical and jazz.

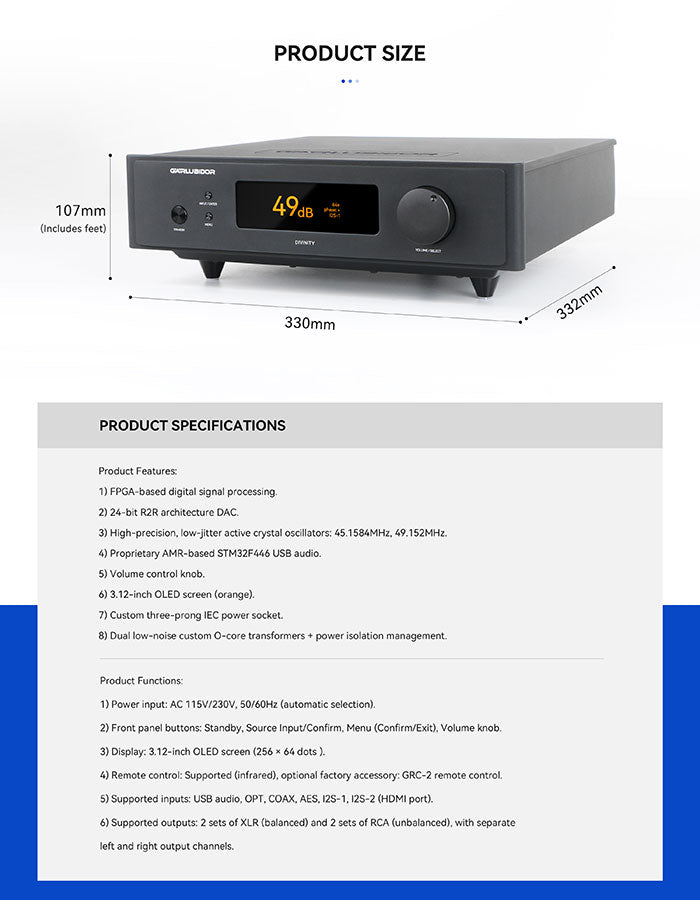

- FPGA: digital signal processing
- DAC architecture: 24-bit R2R
- Clocking: high precision, low jitter active crystal oscillators (45.1584 MHz, 49.152 MHz)
- USB interface: STM32F446 proprietary USB audio based on AMR
- Sound control: physical volume control button
- Display: OLED screen (3.12 inches, orange, 256 × 64 dots)
- Chassis: customised tripod-shaped power tailstock
- Power supply: dual low-noise O-shaped customised transformers with power isolation management
- Power input: AC ~115 V / 60 Hz, ~230 V / 50 Hz (automatic selection)
- Panel buttons: standby button, audio input / confirm button, menu (confirm / exit) button, voice control button
- Remote control: infrared supported, optional GRC-2 remote control
-
Digital inputs:
- USB audio
- OPT
- COAX
- AES
- I2S-1
- I2S-2 (HDMI socket)
- Analog outputs: 2 × XLR (balanced) and 2 × RCA (unbalanced), left and right channels respectively
- Package contents: DAC unit only. Power cable not included. Remote control optional.
-
Important logistics notice:
Due to logistics restrictions, detachable batteries are prohibited from being included in transport. Remote control shipments do not include batteries. Customers must provide their own CR2032 3V button battery. Thank you for your understanding.
