Silent Angel Forrester F2 Linear Power Supply
1 In stock
The stable linear power supply with highly accurate versatile DC outputs to support Hi-Fi system. Power is the bloodstream to all electronic devices, and it's especially crucial for the highly sensitive Hi-Fi audio equipment, being stable & less-noise, having low power consumption & guarding the audio nature. F2 is to simultaneously provide the the stable DC power signals to different Hi-Fi audio equipment.
A great solution to power high-frequency Hi-Fi audio system, and adjust the optimal power condition for Hi-Fi sound quality. Employs 4 types of DC output, 12V/3A; 12V/1A; 5V/2A; 5V/1A, regarding 5V outputs, there are also USB interfaces for user to choose. By connecting to Bastei, DC upgrade cable, F2 could serve the greater quality of power signal to Hi-Fi system, and improve the overall sound quality. Fully symmetric toroidal-transformer-formed circuit, and low-noise MOSFET paralleled to lower inner electronic interference, also with high-permeability EMI absorber embedded to eliminate high frequency electrical noise. Adopts thick aluminum alloy for all panels, the front and back panels are thick as 8 mm, all the designs are meant to reduce any possible machine vibrations & noises. SECC processing galvanized steel for top and bottom cases, which is highly anti-oxidation and highly anti-corrosion. From inner circuitry to outer enclosure, all the designs are built to pursue ultimate Hi-Fi quality, F2 would bring the consistency and integrity and vividness back to life in digital music.
Power Input: IEC (AC) 115-230V or 120-240V, 1.5 at max
Power Use: 100W at max

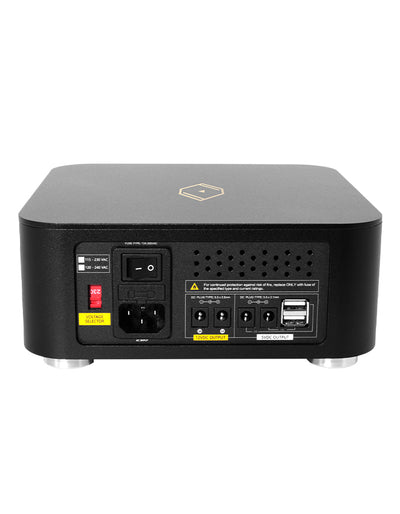

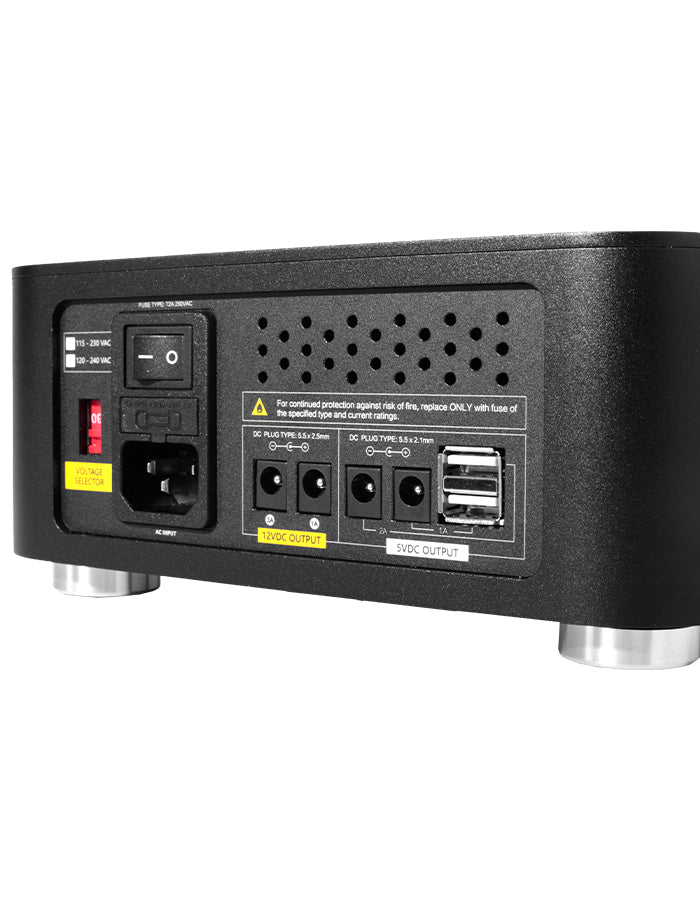

Interface:
(DC) 12V/3A plug*1, 5.5 x 2.5 mm; 12V/1A plug*1, 5.5 x 2.5 mm
(DC) 5V/2A plug*1, 5.5 x 2.1 mm; 5V/1A plug*1, 5.5 x 2.1 mm
(The same set of USB ports and DC plugs of 5V output cannot be connected simultaneously.)
(The two sets share the same current output)
The maximum current gross output of two 12V ports is 3A, which means if you connect 12/3A port to a device which requires exactly 12/3A input, then the 12V/1A port cannot be used.
The maximum current gross output of two 5V ports is 2A, which means if you connect 5V/2Aport to a device which requires exactly 5V/2A input, then the 5V/1A port cannot be used.
LED indicator:
Output Status*4
- Green light means power on and the condition is stable
- Red light means over current protection activated and power off
- No light means no power input
Output Over Temperature*2
- Yellow light means over temperature protection activated
- No light means temperature is normal or no power input
Dimensions: 200 x 200 x 111 mm (with footstands)
Weight: 4.2 kg
