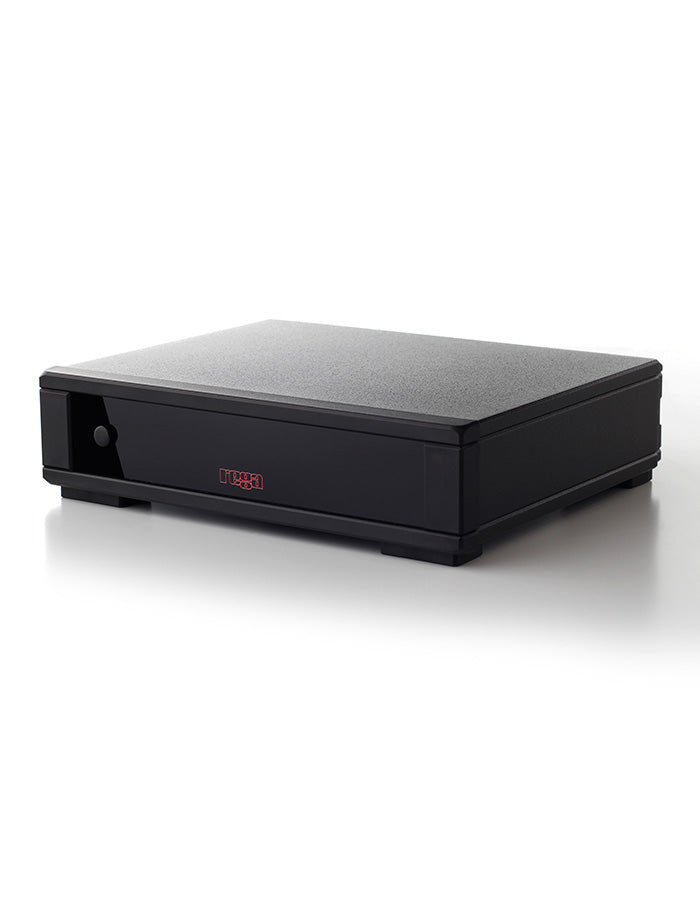

Rega Fono MM Mk5 Phono Stage

AvailabilityOut of stock

$555.00

The Fono MM MK5 phono stage has been designed to be effective, easy to use and above all, to reproduce music. The Fono MM MK5 uses a fully discrete, cascaded, complementary amplifier input stage, a configuration designed to optimize the performance of your moving magnet cartridge. Now housed in a brand new redesigned case to match the new Fono MC and Rega’s latest range of electronic components offering a modern look guaranteed to integrate in to any hi-fi system.

Quantity

Description
Specifications
Media Reviews

The aesthetic design of the Fono MM was as important as the quality of its electrical capabilities, so it benefits from the same updated aluminum case as the Rega Neo and Fono MC amplifier, giving it a design which offers a familiar feel and moreover brings it in line with its illustrious bigger brothers. The RIAA equalization has been split into two stages to minimize interaction. Polyester capacitors have been used in the signal path and polypropylene capacitors are used in the RIAA equalization circuits.

KEY FEATURES
Dedicated Moving Magnet stage
Simple connectivity and operation
Custom case design
Two stage RIAA Equalization
What Hi-Fi? Award winner 2017/2018/2019/2020/2021
Lifetime warranty against manufacture defects

Input Sensitivity
1.7 mV for 200 mV Output

Input Loading
47 kΩ in parallel with 100 pF

Maximum Input Level
60 mV at 1 kHz

Gain
41.4 dB at 1 kHz

Output Impedance
200 Ω

Recommended Minimum Output Load Resistance
5 kΩ

Frequency response (50KΩ output load)
15 Hz (-3 dB) to 100 kHz (-0.2 dB)

RIAA Accuracy (50 kΩ Output Load)
Better than ±0.2 dB 100 Hz to 100 kHz

Power Requirements
24 V AC at 80 mA maximum

For full technical specifications, download FONO MM MK5 USER MANUAL below.
