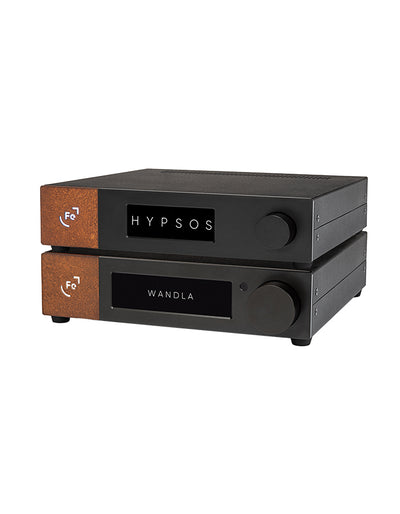

Ferrum WANDLA & HYPSOS Bundle
2 In stock
WANDLA can be upgraded with HYPSOS Hybrid Power System using our proprietary Ferrum Power Link (FPL) connection, making both units perform to their highest levels. While WANDLA performs very good right out of the box, it is made to excel above and beyond when used together with HYPSOS. Not only does HYPSOS work better in this combination, WANDLA will also perform even better than it normally does. The truly balanced design of the preamplifier stage coupled with the discrete IC power amplifier technology in combination with the implementation of highly selected components is elevated to a level of its own.
Ferrum WANDLA - Dac/Pre
Operation: Fully balanced, proprietary IC power amp
DAC chip: ESS Sabre ES9038PRO
DAC resolution: 768k/32bit, DSD 256
Digital inputs:
-AES/EBU (up to 196kHz/24bit, DoP 64)
-Optical S/PDIF (up t/24bit)
-Coaxial S/PDIF (up to 192kHz/24bit, DoP 64)
-USB-C (up to 768kHz/32bit, DSD 256)
-ARC (up to 192kHz/24bit), TV input with CEC
-I2S (up to 768kHz/32bit, DSD 256), PS Audio® compatible
MQA®: decoder and renderer (on all digital inputs)
Analog inputs: RCA
Analog input Vmax: 9,5V RMS (2 – 3,5V RMS recommended)
Analogue input imp:47kΩ
Line outputs: balanced XLR; unbalanced RCA
Volume control: analogue with bypass option / digital for DAC operation only
Output level: @0dBFS, 1kHz sine 9,3V RMS balanced, 4,65V RMS unbalanced
Frequency response analong inputs: 10Hz – 200kHz +/- 0,1dB
DAC THD: 121dB (0,00009%); THD+N: -115dB (unweighted)
Analog input THD: 123dB @ 2V RMS output level
Dyn. range analog: 127dB (A-weighted)
Dyn. range digital: 127dB (A-weighted)
Crosstalk: 120dB for 1kHz, better than -100dB for 20Hz -20kHz
Output impedance: 22Ω unbalanced
Output impedance: 44Ω balanced
Power consumption: 10W idle / 15W max
Power inputs: 5,5/2,5 mm DC connector centre positive proprietary FPL 4-pin DC connector (FPL), 22-30VDC
Power adapter: 100-240 VAC to 24VDC
Dimensions: 21,7 x 20,6 x 5 cm
(WxDxH): 8.6 x 8.1 x 2.0 inch
Weight: 1,8 kg/3.97 lbs
Ferrum HYPSOS - Power Supply
Power input: 110-120 & 220-240V AC/50-60Hz (EU/US Version)
90 – 110Vac/50-60Hz (JP Version)IEC C14 power inlet, a fuse holder with power on/off switch plus two-stage EMI filter for low impedance load with better noise attenuation in low frequency applications
Mains cable: US/EU/UK
DC OUT cable: 5×2.5mm DC plug / 5×2.1mm
Output Voltage Range: 5-30 [V]
Max Continuous Output Current (for V_out below 13,3V): 6 [A]
Max Continuous Output Current (for V_out higher than 13,3V): l_out= 80[W] / DCout[V]
Maximum Impulse Current: 9A
Maximum Impulse Power: DC V_out*9A (270W for 30V)
Max Continuous Output Power (for V_out below 13,3V): P_out = V_out[V] * 6[A]
Max Continuous Output Power (for V_out higher than 13,3V): 80W
Dimensions (without knob, feet and connectors) (W x D x H , mm / inches): 217.5 x 206.5 x 50.0 / 8.6 x 8.1 x 2.0
Net weight (kg / lb): ~ 2,89 / ~ 6.2
Primary winding fuse: IEC 5x20mm, 250V 3.15A, slown-blown for Japan version / 250V 2A, slown-blown for Europe, US version
Secondary winding fuse: Littefuse 154004T, 4A
Power consumption: 230VAC, 50Hz @ 12VDC out/: Idle – 6VA @ 15W load – 30,7VA @ 60W load – 98VA @ 80W load – 133,9VA
