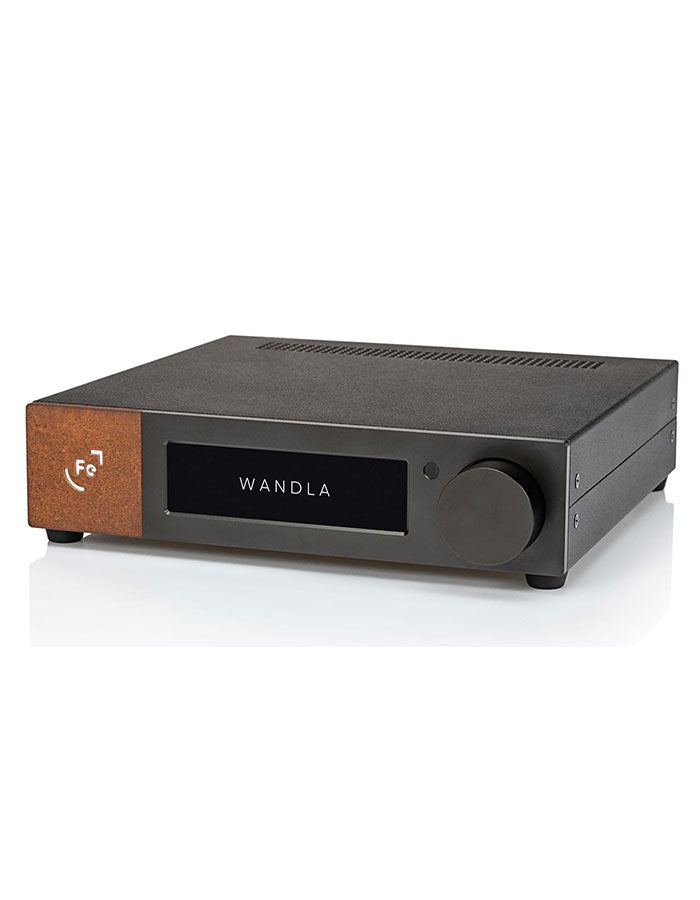

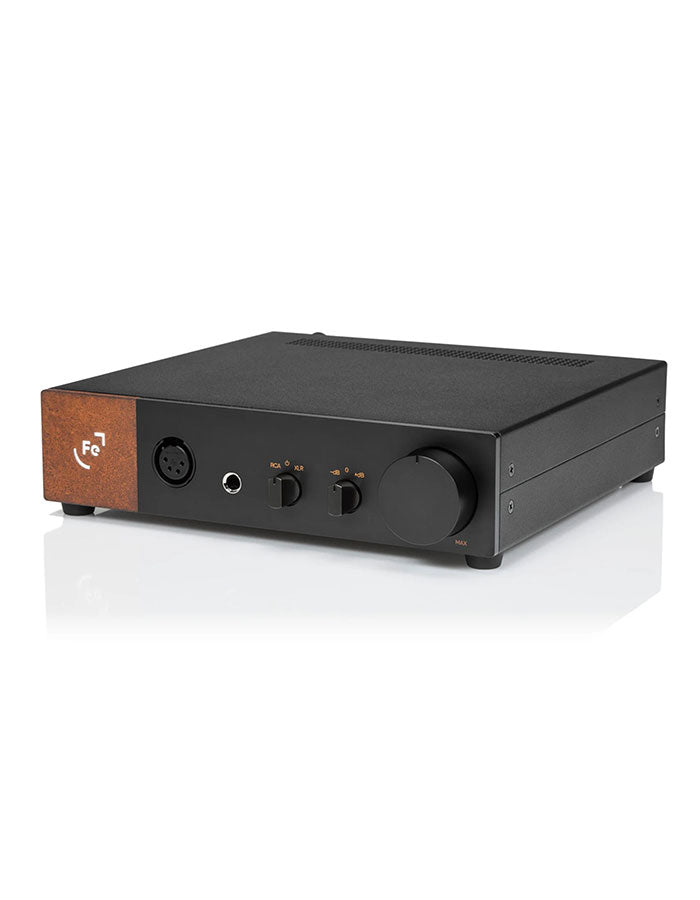

Ferrum WANDLA, OOR & HYPSOS Bundle
In stock

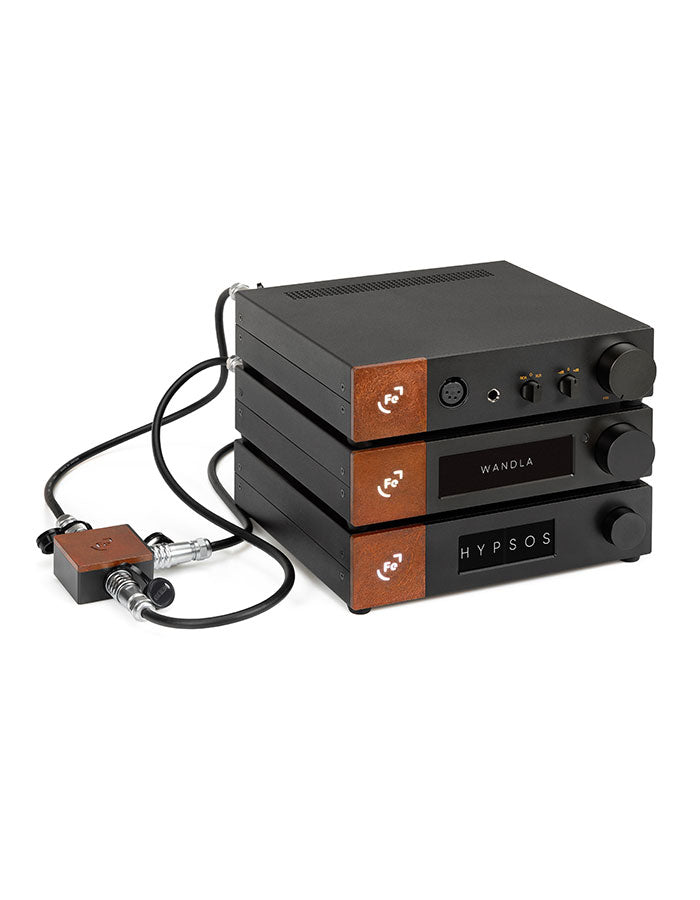

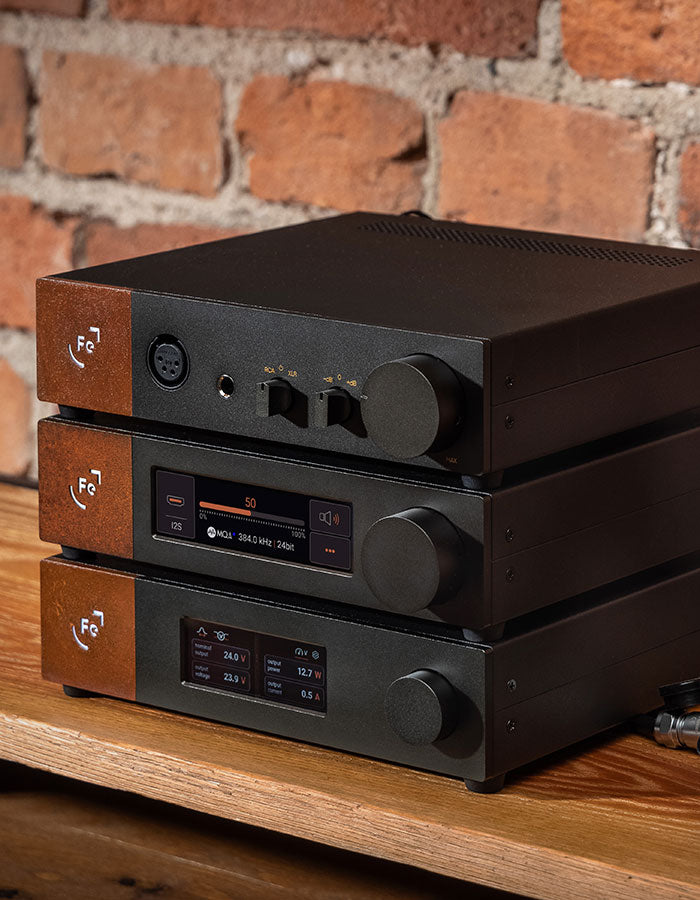

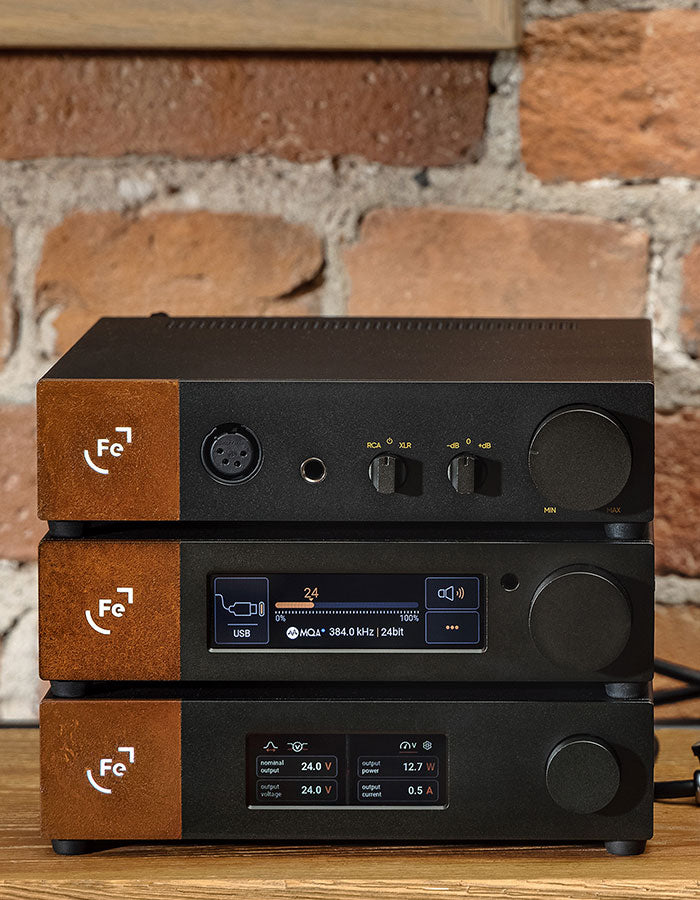

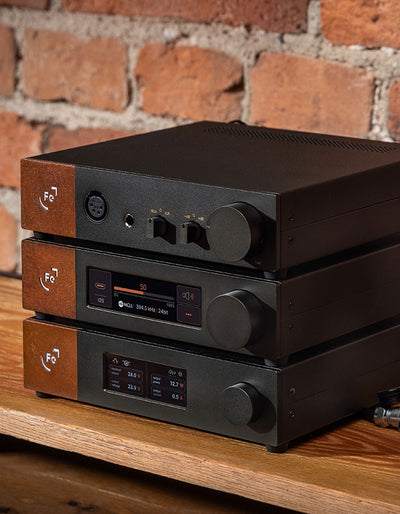

Power reserves are so abundantly available that HYPSOS could in fact easily power two devices at the same time, as long as they have the same supply voltage requirements. While we first started offering our Ferrum Power Splitter, we now offer HYPSOS with two power outputs. This means you can now connect two Ferrum devices, for instance OOR and WANDLA (or two other devices with the same power requirements) simultaneously, without the need for another external component and associated cable spaghetti. HYPSOS with double output brings you an extra level of upgradeability at an exciting price point, again proving Ferrum’s journey to change the landscape of high-end audio in relation to affordability is indeed a continuing saga.
Easy Setup Procedure - using pre-configured settings from the list of supported devices or setting custom parameters manually. Wide continuous output voltage range of 5-30V with up to 6A of current delivered to the load, divided over two outputs. Now HYPSOS is even more universal than it already was.
Sweet Spot Tuning (SST) - possibility to fine tune the output voltage for the best sound. The voltage level can be safely adjusted on the fly to allow easy comparison testing.
4T Sensing Design (4TSD) - ensuring the exact voltage level precisely at the point of the powered device DC input terminal - special cable design and feedback to ensure as constant voltage as possible at every moment. This technique eliminates the harmful effects of the cable’s resistance effectively improving transient response.
Advanced Automation - compatibility with Apple TV remote, Trigger in/out connector; possibility to automate power-up of the devices with standby mode even without dedicated trigger connection.
Extremely Safe to Use - Automatic Transformer Voltage Adjust (ATVA), electronic output voltage polarity switch and overvoltage, current limit and short protection.
Detailed and revealing yet unfatiguing sound - makes your current audio setup perform to its potential. Tweak the sound modifying the voltage level on the fly and use the preferred combination of the 4-Terminal Sensing and Spread Spectrum Mode settings.
HYPSOS Dual Output - comes with a high quality DC power cable fitted to order to connect to the most commonly used DC inputs. Custom cables can be made to order.
Specifications Ferrum HYPSOS Dual Output hybrid power system:
Power input: 110-120 V AC & 220-240 V AC / 50-60 Hz (EU/US)
100 V AC / 50-60 Hz (JP)
Mains: IEC C14 power inlet, fuse holder, power on/off, two-stage EMI filter
Mains cable: EU, UK, AU or US
DC out cable: 5.5 x 2.5 mm or 5.5 x 2.1 mm DC plug
Voltage, current and power specifications showed below are for both outputs combined. Same voltage is shared on both outputs. Current and power are combined from both outputs. 4TSD functionality is only active on the main output.
DC outp. voltage range: 5-30 V
Max. cont. outp. power: 60 W
Max. cont. outp. current: 6 A
Primary winding fuse: IEC 5×20 mm, 250 V 3.15 A, slow-blow (JP)
250 V 2 A, slow-blow (EU/US)
Power consumption: @ 230 V AC / 50 Hz and 12 V DC out:
no load (idle) – 6 VA, ~ 80 W load – 133.9 VA
Dimensions (W x D x H): 21.7 x 20.6 x 5 cm / 8.6 x 8.1 x 2 inch (without knob, feet and connectors)
Net weight: 3.05 kg / 6.72 lbs
