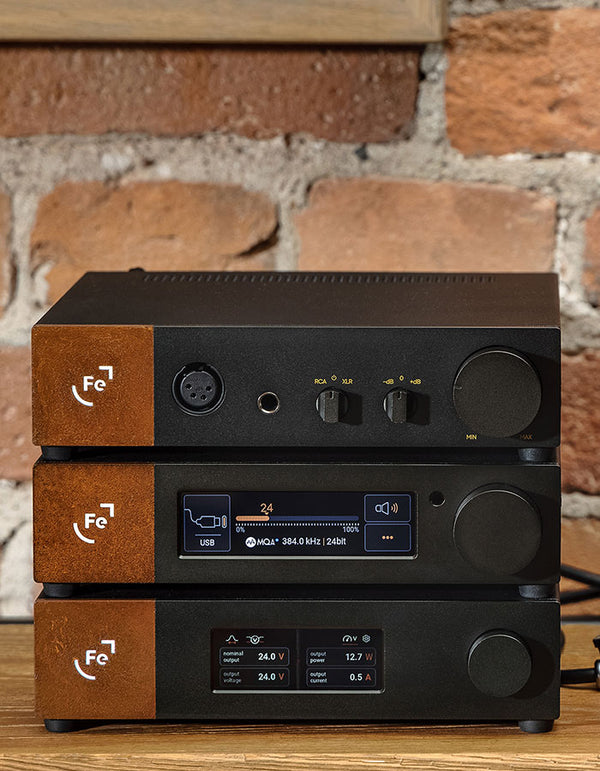

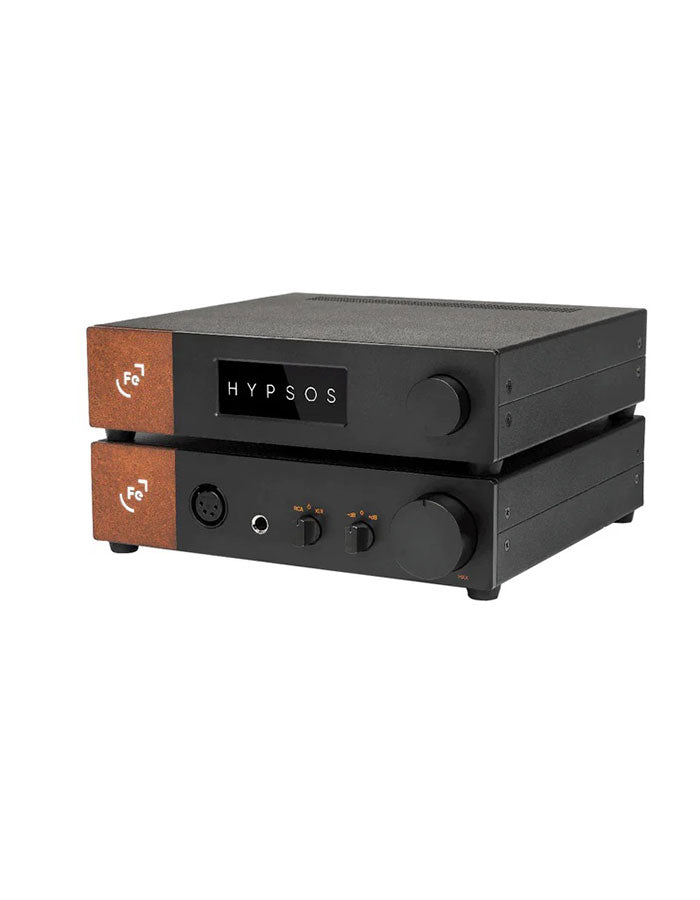

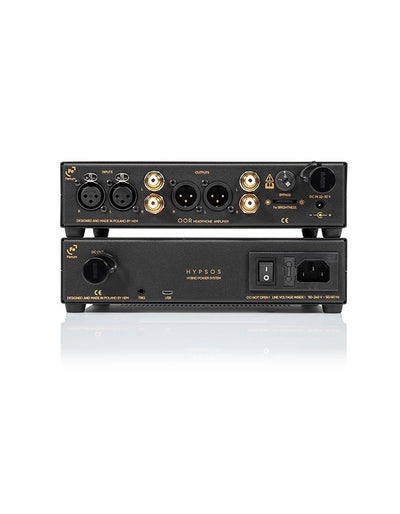

Ferrum OOR & HYPSOS Bundle
1 In stock
HYPSOS will perform to its abolute maximum, unleashing unheard musicality from the combination with OOR. Combining OOR with HYPSOS really exceeds the sum of the parts and will result in ultimate enjoyment of your favorite music.
Ferrum OOR - Headphone Amplifier
Gain (dB):balanced -4 dB, + 6dB, +16 dB / single ended -10 dB, 0 dB, 10 dB
Operation: Fully balanced, proprietary discrete power amp technology
Inputs: XLR, RCA, 2.5 mm DC connector centre positive, proprietary 4-pin DC connector
Outputs: Balanced 4-pin XLR, 6.35 mm jack
Frequency Response: 20 Hz – 100 kHz 0.1 dB
Output Power Single Ended: 400 mW into 300 Ω, 2 W into 60 Ω
Output Power Balanced: 1.600 mW into 300 Ω, 8 W into 60 Ω
THD on balanced output: 0.00011% / -119 dB, 1 mW into 50 Ω; 0.00028% / -111 dB, 100 mW into 50 Ω
THD on unbalanced output: 0.00008% / -122 dB, 1 mW into 50 Ω; 0.00028% / -111 dB, 100 mW into 50 Ω
Dynamic range: 130 dB (A-weighted)
Input Impedance: 94 kΩ
Output Impedance Single Ended: 22 Ω on pre-amp
Output Impedance Balanced: 44 Ω on pre-amp
Output headphones Impedance: < 0.3 Ω
Power Consumption: Idle <15 W
Power Adapter: 100/240 V AC to 22-30 V DC
Dimension (W x D x H) (In/cm): 8.6 x 8.1 x 2.0 inch / 21.7 x 20.6 x 5 cm
Weight (kg/lbs): 1.8 kg / 3.97 LBS
Price: 1.995 EUR/USD
Ferrum HYPSOS - Power Supply
Power input: 110-120 & 220-240V AC/50-60Hz (EU/US Version)
90 – 110Vac/50-60Hz (JP Version)IEC C14 power inlet, a fuse holder with power on/off switch plus two-stage EMI filter for low impedance load with better noise attenuation in low frequency applications
Mains cable: US/EU/UK
DC OUT cable: 5×2.5mm DC plug / 5×2.1mm
Output Voltage Range: 5-30 [V]
Max Continuous Output Current (for V_out below 13,3V): 6 [A]
Max Continuous Output Current (for V_out higher than 13,3V): l_out= 80[W] / DCout[V]
Maximum Impulse Current: 9A
Maximum Impulse Power: DC V_out*9A (270W for 30V)
Max Continuous Output Power (for V_out below 13,3V): P_out = V_out[V] * 6[A]
Max Continuous Output Power (for V_out higher than 13,3V): 80W
Dimensions (without knob, feet and connectors) (W x D x H , mm / inches): 217.5 x 206.5 x 50.0 / 8.6 x 8.1 x 2.0
Net weight (kg / lb): ~ 2,89 / ~ 6.2
Primary winding fuse: IEC 5x20mm, 250V 3.15A, slown-blown for Japan version / 250V 2A, slown-blown for Europe, US version
Secondary winding fuse: Littefuse 154004T, 4A
Power consumption: 230VAC, 50Hz @ 12VDC out/: Idle – 6VA @ 15W load – 30,7VA @ 60W load – 98VA @ 80W load – 133,9VA
