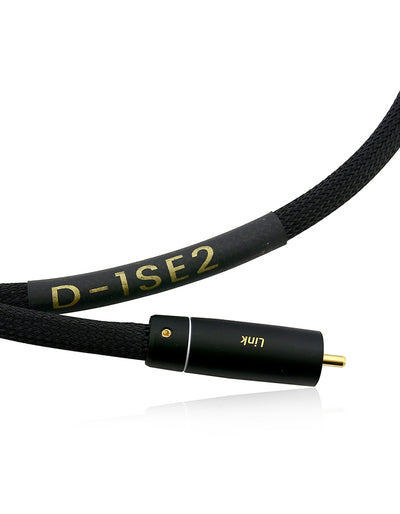

AAC D1-SE2 Digital Coax Cable with Gold RCA to BNC
PREMIUM PERFORMANCE, AFFORDABLE PRICE
Audio Art's D-1SE2 is a precision engineered, 75-ohm coaxial cable designed for accurate transmission of today's high definition digital audio signals. The design begins with a solid, silver-coated OFC center conductor to maintain a uniform 75-ohm impedance, and to minimize signal reflections. This significantly reduces data transmission anomalies such as jitter, which can cause myriad issues in your digital music's fidelity. The center conductor is encased in a closed cell foam FEP dielectric, for ultra-low signal absorption and loss. Noise rejection is maximized by an aluminum Mylar and heavy braid dual layer shield, providing 100% coverage and complete immunity to noise. A custom shop, hand assembled aesthetic, plus an audiophile quality ETI LINK Gold RCA's along with a high-performance Furutech FP-3-117(R) BNC's expertly terminated with Cardas QuadEutectic silver solder insure a beguiling musical performance.

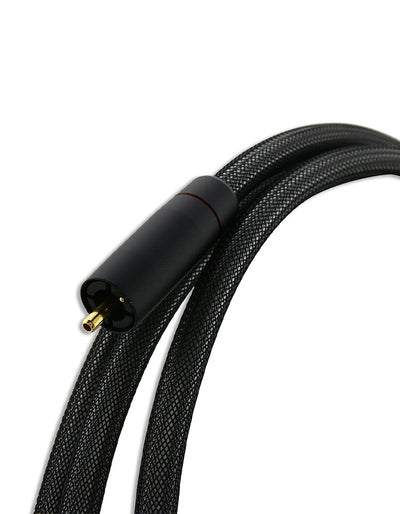

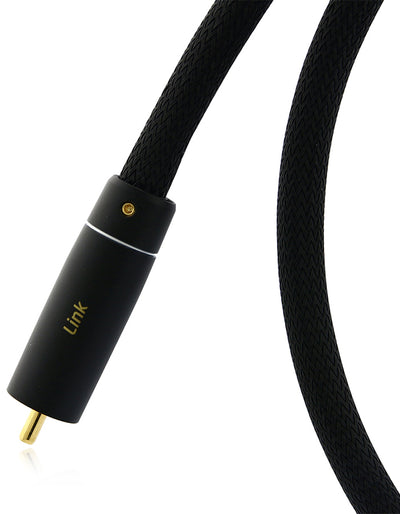

ETI RESEARCH LINK RCA
The new LINK RCA Connector was based upon the venerable Bullet Plug from ETI-Research, but this time with added benefits. The signal pin is now made from pure copper for even better conductivity and performance, while maintaining the original's pin design. An aluminum housing makes this new design far more impervious to today's EMI radiation levels floating around every residential audio system. As a result, LINK RCA has very good EMI/RF noise rejection to keep your digital data signal as clean as it possibly can be. LINK's direct cable-to-pin connection, and star grounding make it an idea choice for digital coaxial cable applications. FURUTECH FP-3-117(R) HIGH PERFORMANCE BNC

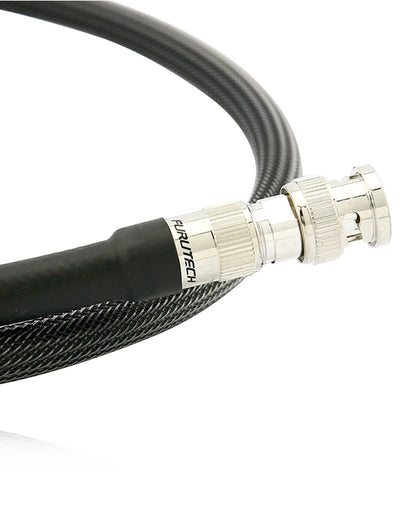

Furutech's precision engineered, audio grade FP-3-117(R) BNC connector is made from some of the finest materials in the industry today, and is designed to deliver the ultimate in high-fidelity digital data transmission. Rhodium-plate copper alloy body with Fluoropolymer PTFE Resin insulation. α (Alpha) Eutectic cast copper alloy center pin, soldered with audiophile grade Cardas Quad Eutectic solder.
THE CABLE AT THE CORE
A solid, silver-coated UFC Copper center conductor insures uniform impedance, and minimal signal reflections, both critical to accurate data transmission. The conductor is encased in a proprietary foam PTFE Matrix dielectric, offering an unbelievably low dielectric constant of 1.4, and the least signal loss of any material available today. The aluminum mylar / copper braid dual shield provides complete immunity to noise. Sonically, Audio Art’s D-1 Classic provides you with a coherent, musical balance and superior dynamics, while carefully controlling the digital audio anomaly known as jitter.
|Solid, Silver-Coated OFC Center Conductor|
|Closed Cell Foam FEP dielectric|
|Aluminum Mylar and Heavy Braid Dual Layer Shield|
|Single Crystal (OCC) Pure Silver Center Conductor|
|Dual Copper Mylar / Braided Silver-Plated OFC Shield|
|Woven Techflex Jacket|
|High Performance ETI LINK Gold and Silver RCA's and Furutech BNC's|
|Audiophile Quality WBT nextgen™ RCA's and Oyaide BNC's|
|Audiophile Grade Cardas Quad Eutectic Silver Solder|
|Custom Shop Assembly by Phil Martinez|
