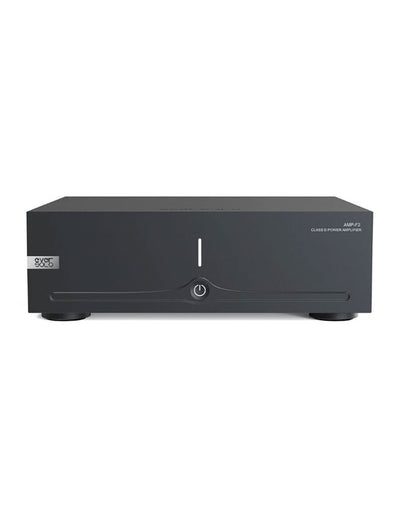

Eversolo AMP-F2
In stock
The AMP-F2, developed in collaboration between the Starke Sound team and the Eversolo team, is based on the innovative NS600 module created by the Starke Sound team. It boasts a high sampling rate of up to 600KHz. Simultaneously, it significantly reduces noise and enhances dynamic performance through the newly designed SAPS audio-specific switch power supply. It employs an efficient Class D amplification structure, coupled with optimized circuits to maximize audio quality. The AMP-F2 is bridgeable, allowing flexible configuration for 2-channel or mono-channel setups when needed.
Can be configured as a mono amplifier with the purchase of 2
Vigorous Output - Bridged Support
The AMP-F2 is equipped with Starke Sound's NS600 amplifier module, each channel can output a constant 250W RMS (42) @ 1% THD+N. When bridged, it can support up to 450W RMS (2) with THD+N still below 1%. This ability to handle extremely low-impedance loads ensures ample energy even in large and challenging speaker setups, particularly during high-dynamic low-frequency outputs.
Accurate Sound - Perfect Experience
The NS600 module employs PurePath™ Ultra-HD technology and advanced integrated feedback design, featuring high-speed gate driver error correction functions. This technology achieves ultra-low distortion across the entire audio frequency range, delivering perfect high-end audio quality.
Powerful Power Drive
Utilizing a 600W high-efficiency, low-ripple, low-EMI switch power supply, it delivers consistent and powerful output, extremely low noise, enhancing the overall dynamic performance of the system.
Environmentally Friendly Low Power Consumption
AMP-F2 has an extremely low standby power (0.5) and idle power consumption (14W), complying with the European Union ErP standards.

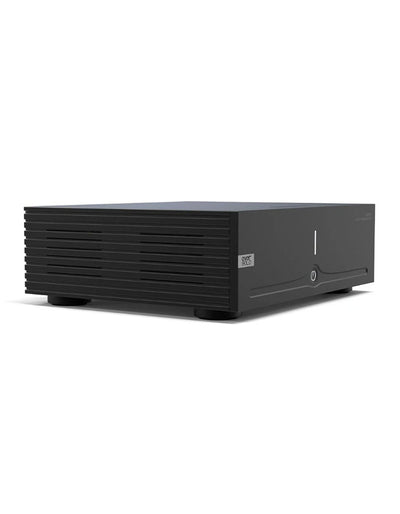

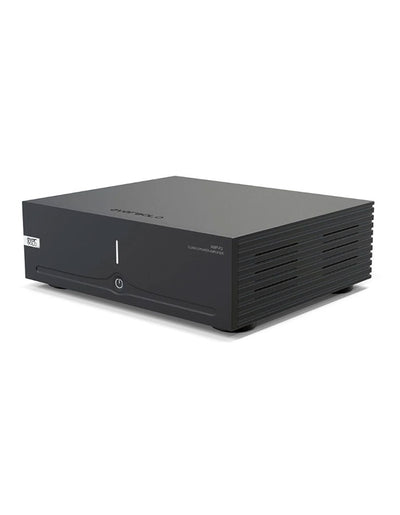

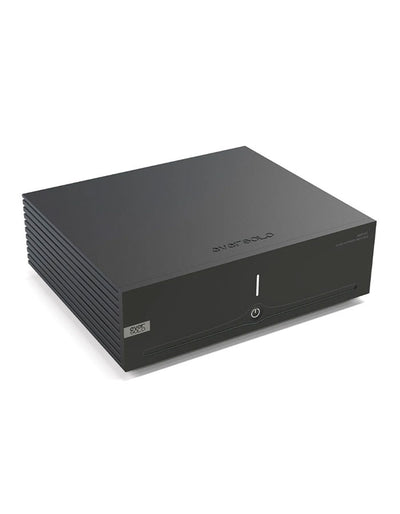

Aluminum Body Shielding Design
Complete self-protection and anti-interference design to avoid disturbances from various electrical environments.
One-Touch Activation - Seamless Control
Equipped with a powerful 12V trigger on the AMP-F2 amplifier, this 3.5mm mini-jack connection allows you to create a simple network between all Eversolo products and AMP-F2, ensuring a seamless power on and standby experience. Once connected, it enables one Eversolo product to control the power supply of all other products in the system. When you power on a single device, the rest of the system will automatically turn on.
Output Power:
145W RMS at 8 ohms (1% THD)
250W RMS at 4 ohms (1% THD)
280W RMS at 4 ohms (1% THD, BTL [used as mono amp])
450W RMS at 2 ohms (1% THD, BTL [used as mono amp])
Gain: 21.5dB
Channel Quantity: x 2
Amplifier Type: Class D
Frequency Response: 10Hz-20KHz - 1dB
Maximum Output Current Per Channel: 16.5A/33A(Bridge)
Signal-To-Noise Ratio (SNR): >110dB, "A" weighted at 4 ohm 250W
THD: 0.003% 10W at 1KHz

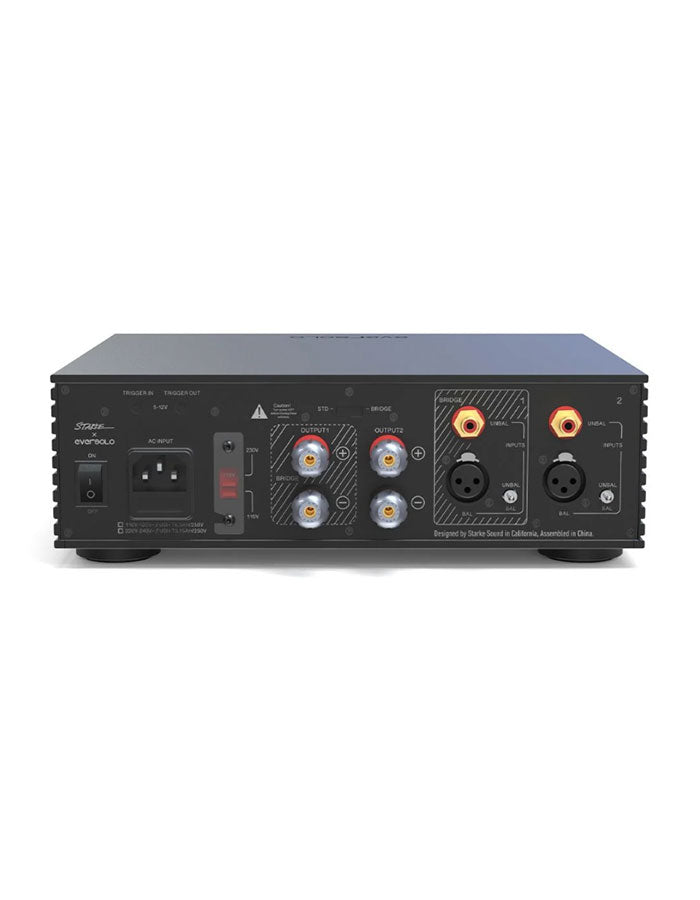

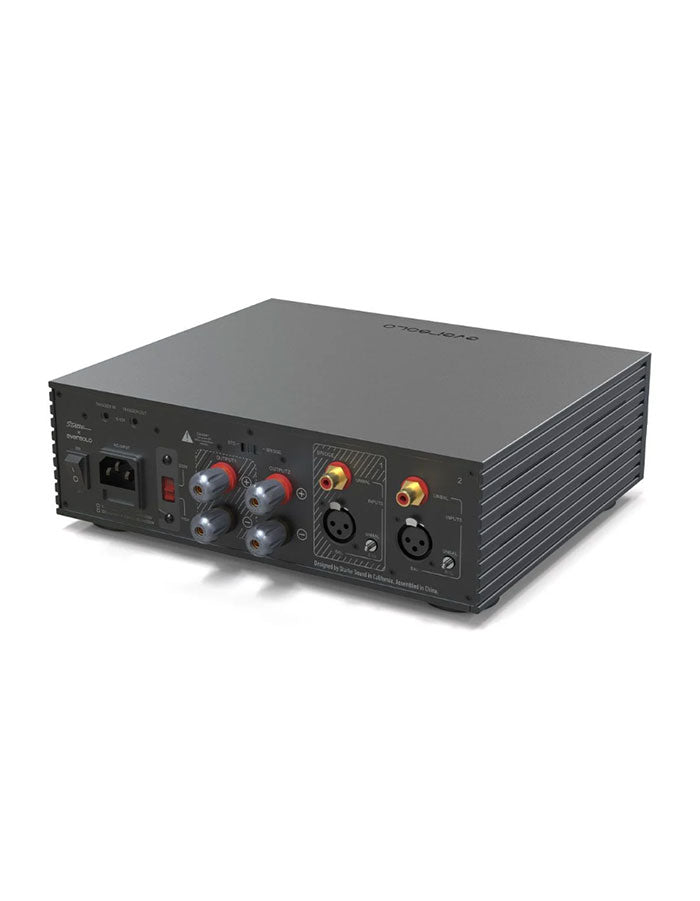

Input Terminals
2-Channel RCA Input
2-Channel XLR Input
Input Impedance (RCA): 11KQ
Input Impedance (XLR): 22K9
Input Sensitivity: 2.7V
Output Terminals: 2 pairs beryllium copper binding post custom made by Starke Sound
Output Impedance: 0.1362Ω(5 Hz to 100 kHz)
Minimum Load Impedance: 0.80Ω
True Balance Circuit: Yes
Heat: 65 BTU / hr
Power Consumption: Standby ≤0.5W Idle ≤14W (Maximum 900W)
Control Option: 12V trigger input & output
Cabinet: Aluminum (Black)
Size: 270x228x80 (mm)
