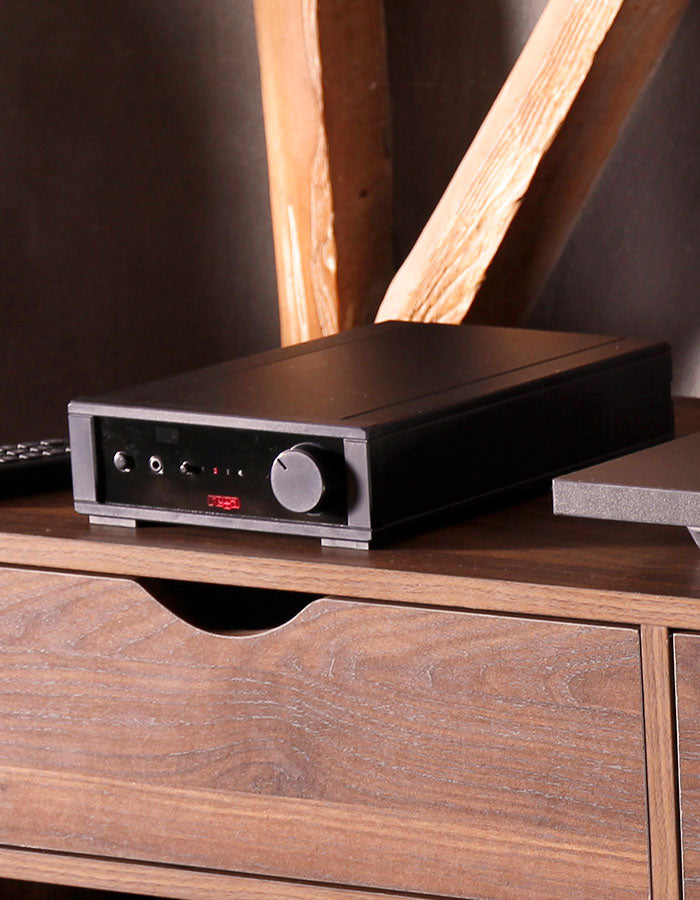

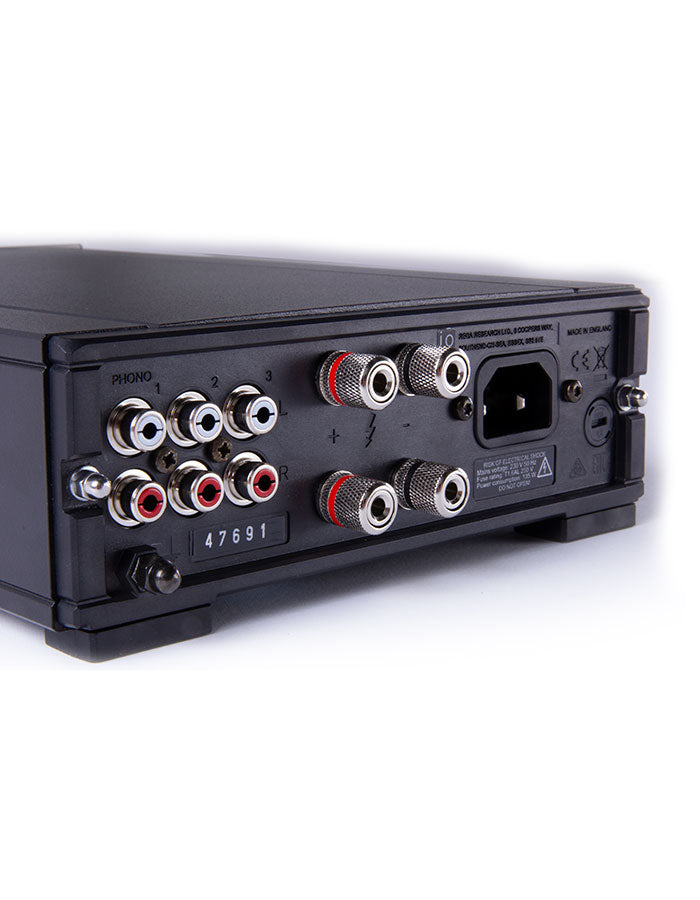

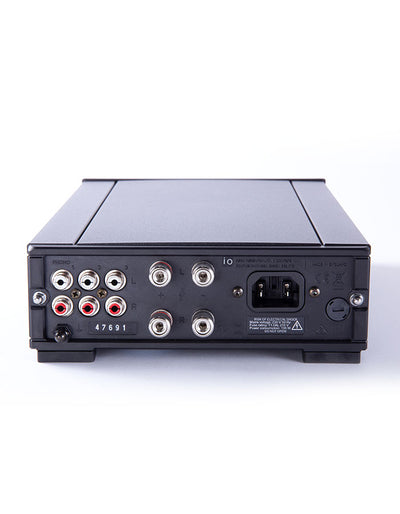

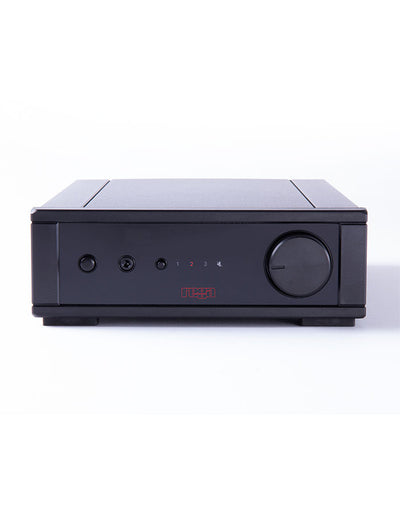

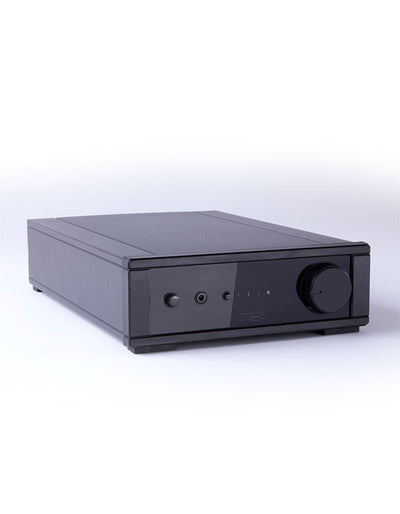

Rega io Integrated Amplifier
NEW FOR 2020! Rega’s smallest integrated amplifier that boasts 30-watt of class AB power fueled by Rega’s classic toroidal power supplies. Its small size can’t hide its big sound and is perfect for new music lovers just starting their audio adventure.
The all new io amplifier is designed with every music lover in mind. Simple to setup and operate, the io is designed to integrate seamlessly into any hi-fi system.

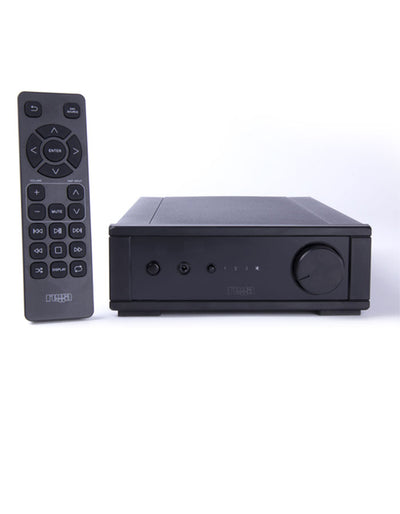

The compact size allows it to be used in a variety of systems and delivers a performance well beyond its price point. As you would expect, there is a high quality built in MM (moving magnet) phono stage, two line level inputs, a redesigned mini remote control handset and high quality headphone output that is cleverly integrated to deliver optimum performance without compromising the audio circuit.
All of these features combine to deliver a powerful, well balanced musical performance at an incredible price.
Power outputs at 230/115 V supply voltage
30 W RMS both channels driven into the rated load of 8 Ω
Input 1 (Phono) input sensitivity 2.1 mV @ 47 kΩ in parallel with 220 pF
Maximum input 1 (Phono) input level 100 mV
Input 2-3 (Line) input sensitivity 210 mV @ 47 kΩ
Maximum input 2-3 (Line) input level 10.25 V
No load 8 V
32 Ω 1.6 V
54 Ω 2.4 V
300 Ω 5.7 V
Source impedance: 109 Ω
135 W @ 230 V / 220 V / 115 V / 100 V into the rated load of 8 Ω
Phono: 15 Hz to 40 kHz (-3 dB points) / 27 Hz to 20.5 kHz (-1 dB points)
RIAA accuracy: (100Hz to 10 kHz) ±0.4 dB typically better than ±0.3 dB
Line: 12 Hz (-1 dB points) to 43 kHz (-3 dB points)
Batteries included –2 x AAA Alkaline.
T1.6 AL 250 V: 230 V / 50Hz and 220 V / 60 Hz
T3.15 AL 250 V: 115 V / 60 Hz and 100 V / 50/60 Hz
Dimensions (W x D x H) in mm
180 x 290 x 68
