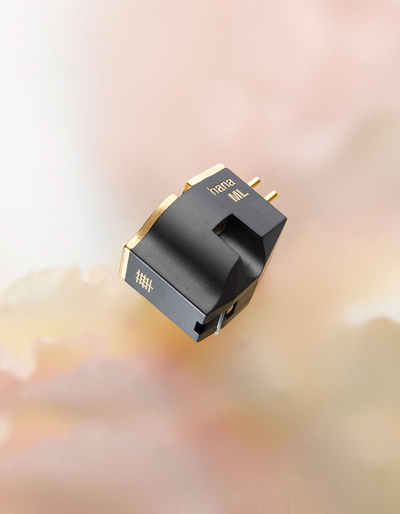

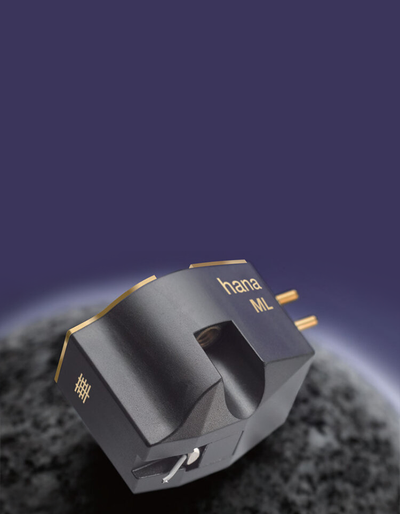

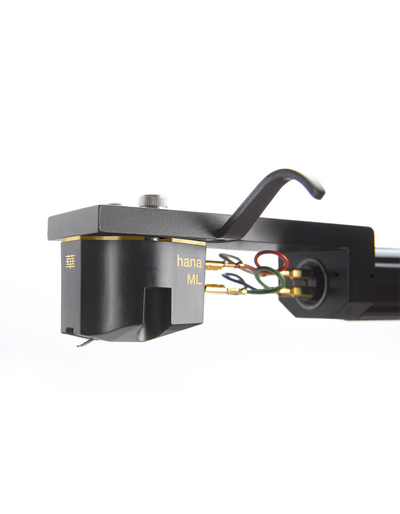

Hana ML & MH Phono Cartridges
1 In stock
Building upon the foundation of the critically acclaimed HANA sound, the ML aspires toward affordable perfection and represent the further evolution of the “Brilliant and Gorgeous” quality that has earned HANA its worldwide reputation.

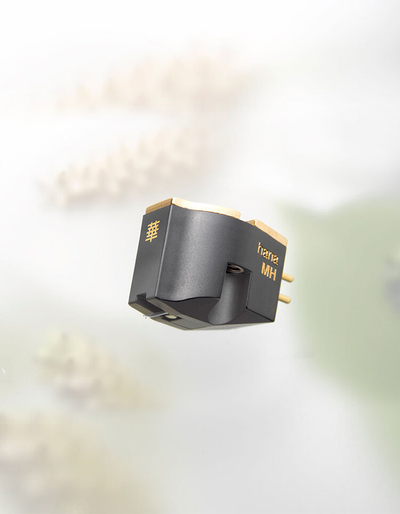

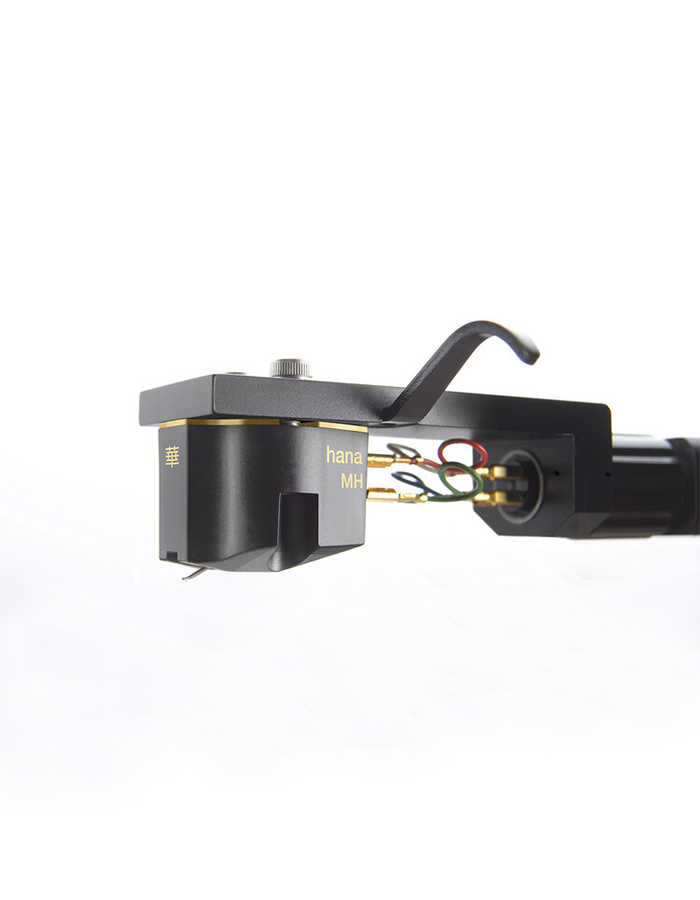

One of the world’s best High Output Moving Coil cartridges, the MH combines the technological advances of the Hana M Series with the optimal interface for moving magnet phono stages.
M Series Nude Microline stylus – Higher Specification Part
Befitting its name, the M Series uses a Nude Microline stylus, mimicking the cutting stylus and fitting more precisely into the vinyl groove. This enhances tracking to capture the most delicate musical details with better frequency reproduction, stereo imaging, and resolution.
High Purity copper wire – Higher Specification Part
Very high-purity copper wire is used for winding the ML coil with a new low impedance generator for optimized performance with a broader range of phono preamps
Delrin© cartridge body – Advanced Materials
The M Series cartridge body is injection molded from Delrin©, a high-tech polymer with improved mechanical characteristics for better resonance damping, to reveal more low level information and enhance dynamic range.
Cryogenic Processing - Unique Technical Treatment
Cryogenic processing is Cold Annealing at near absolute zero temperature that restructures metals at the molecular level, especially important in the Alnico based magnetic electro-motive circuit (cartridge signal generator). The M Series parts treated include the front yoke as well as center and rear components. The result is a more precise and controlled magnetic flux field for greater linearity and musical sound quality.
Brass Cap with Threaded fittings - Superior Mechanical Interface
The Delrin© cartridge body features an integral machined brass cap providing constrained mode layer damping and its heavier 9.5 gram weight provides expanded compatibility with a wider range of tonearms and turntables.
Built into the M Series Delrin© cartridge body are metal threaded fittings for headshell mounting hardware, offering easier attachment and a superior mechanical interface for better bass and dynamics.
M Series Nude Microline stylus – Higher Specification Part
Befitting its name, the M Series uses a Nude Microline stylus, mimicking the cutting stylus and fitting more precisely into the vinyl groove. This enhances tracking to capture the most delicate musical details with better frequency reproduction, stereo imaging, and resolution.
Delrin© cartridge body – Advanced Materials
The M Series cartridge body is injection molded from Delrin©, a high-tech polymer with improved mechanical characteristics for better resonance damping, to reveal more low level information and enhance dynamic range.
Cryogenic Processing - Unique Technical Treatment
Cryogenic processing is Cold Annealing at near absolute zero temperature that restructures metals at the molecular level, especially important in the Alnico based magnetic electro-motive circuit (cartridge signal generator). The M Series parts treated include the front yoke as well as center and rear components. The result is a more precise and controlled magnetic flux field for greater linearity and musical sound quality.
Brass Cap with Threaded fittings - Superior Mechanical Interface
The Delrin© cartridge body features an integral machined brass cap providing constrained mode layer damping and its heavier 9.5 gram weight provides expanded compatibility with a wider range of tonearms and turntables.
Built into the M Series Delrin© cartridge body are metal threaded fittings for headshell mounting hardware, offering easier attachment and a superior mechanical interface for better bass and dynamics.
ML & MH Specifications:
Stylus: Microline
Cantilever: Aluminum
Magnetic Circuitry: Pure Iron/ Treatment
Coil Wire: High Purity Copper
Cartridge Housing: POM (Delrin) / Brass
Output Level:
ML: 0.4mv/1kHz
MH: 2mv/1kHz
Output Balance: <1dB/1 KHz
Trackability: 70 µm/2g
Channel Separation: 30dB/1kHz
Frequency Response: 12-45,000Hz
Impedance:
ML: 7Ω/1kHz
MH: 130Ω/1kHz
Suggested Load Impedance:
ML: >100Ω
MH: 47kΩ
Magnet: Alnico
Vertical Tracking Force: 2g
Cartridge Weight: 9.5g
Height: 16.3mm
Body Color: Black w/Brass Plate
