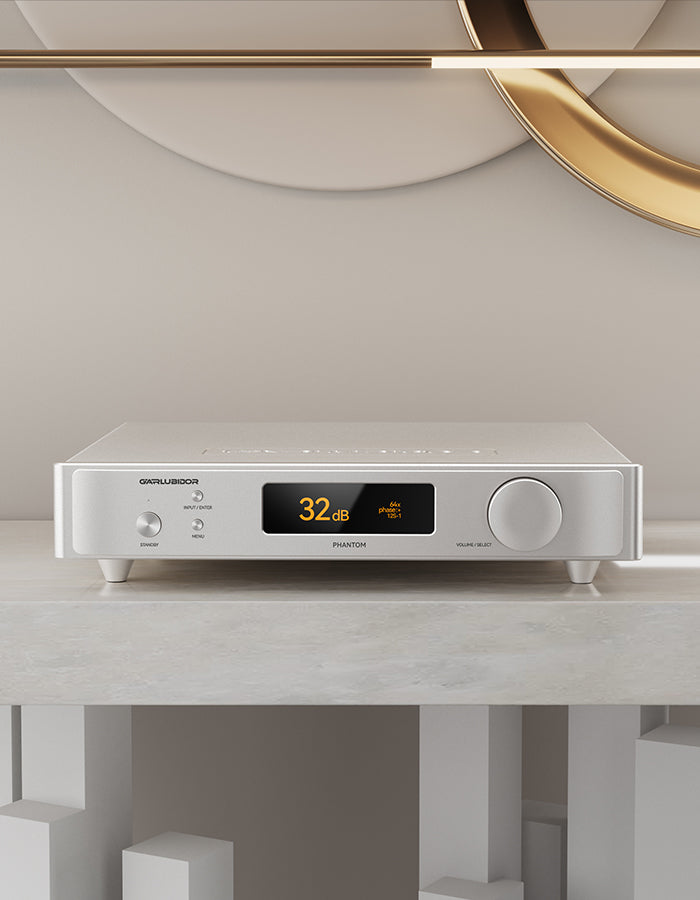

Phantom, an entry level DAC. The quality of the DAC plays a significant role in the overall sound quality, particularly in high-end audio systems. The Phantom redefines elegance and performance with its sleek, robust design, meticulously crafted from high-quality brushed aluminum. With it's classic dimensions, it integrates seamlessly into any high-end audio setup, exuding an unmistakable premium feel.
In stock, ships next business day!
Pairs well with
30-day returns - see return policy

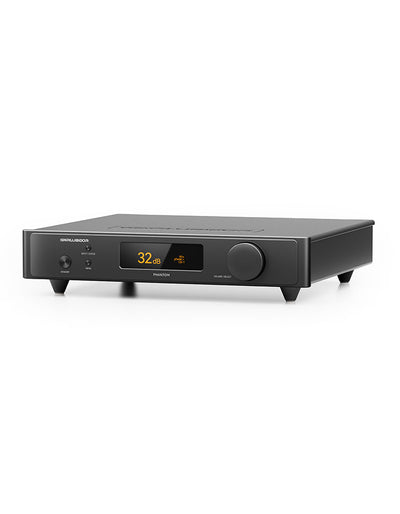

Garlubidor Phantom DAC
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Cables: FREE 2-4-day domestic shipping.
Components: FREE domestic shipping on most of our component and speaker products. -
Customer Support
Our expert audio enthusiast will guide you through this musical journey. Rob is available to answer your questions so that you can join the countless high-end audio systems satisfied clients.
-
FAQ’s
Audio Art Cable strategically assembles cost effective Hi-fi systems with overachieving performance. The cable mission is simple, deliver factory direct to consumers at an exceptional price. Components are curated from the best manufacturers around the world with a value that cannot be surpassed.
-
Contact Us
(619) 255-6451
rob@audioartcable.com
or click the chat icon
Product details
Description
The Architecture
24-bit R2R ladder DAC with FPGA-based signal processing. R2R ladder conversion prioritizes timing accuracy and musical naturalness over the measurement-optimization that delta-sigma chips are designed around. The tradeoffs are well-understood: R2R conversion sounds different — more analog in character, more forgiving of poor recordings, more engaged with the music — and the Phantom is a genuine implementation of the approach, not a marketing exercise.
Clocking is handled by a pair of high-precision, low-jitter active crystal oscillators — 45.1584MHz for the 44.1kHz sample rate family and 49.152MHz for the 48kHz family. Both families get a dedicated, purpose-built clock reference rather than deriving one from the other through division. USB audio uses a proprietary STM32F446 ARM-based implementation.
Connectivity

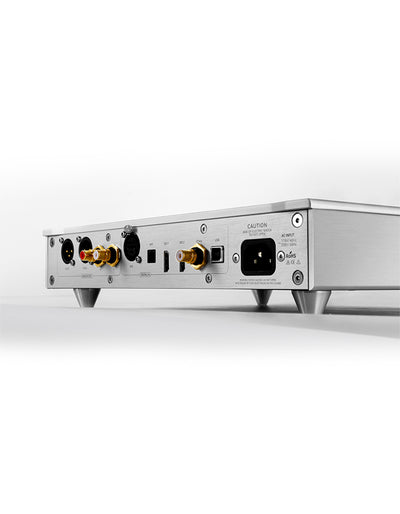

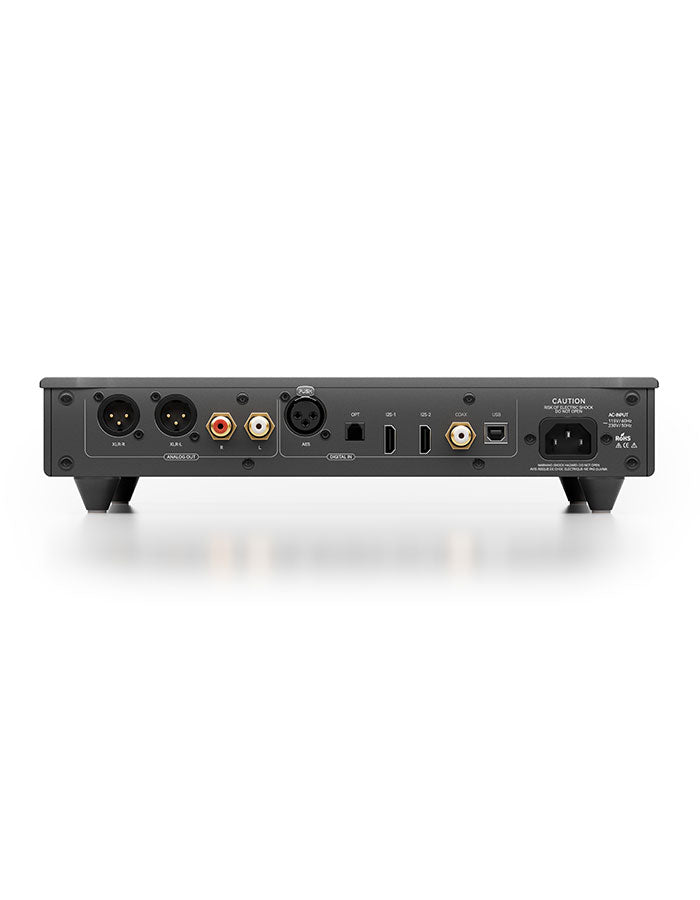

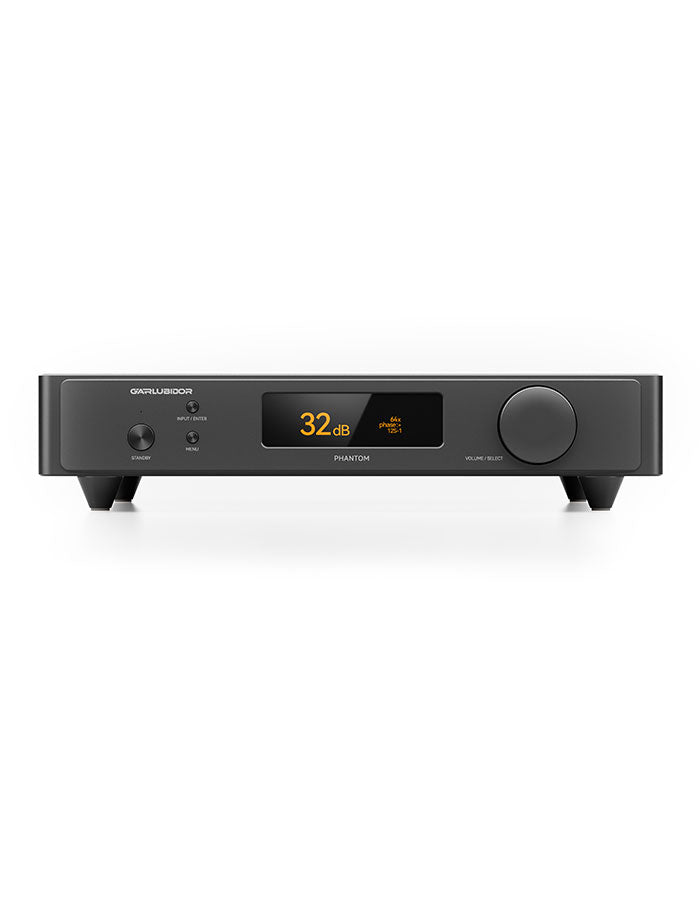

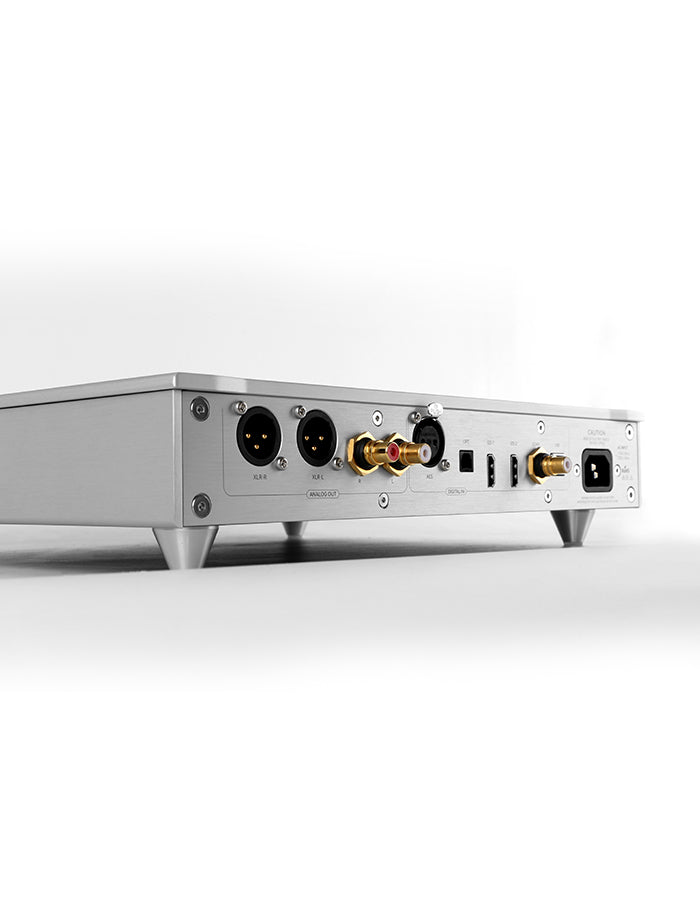

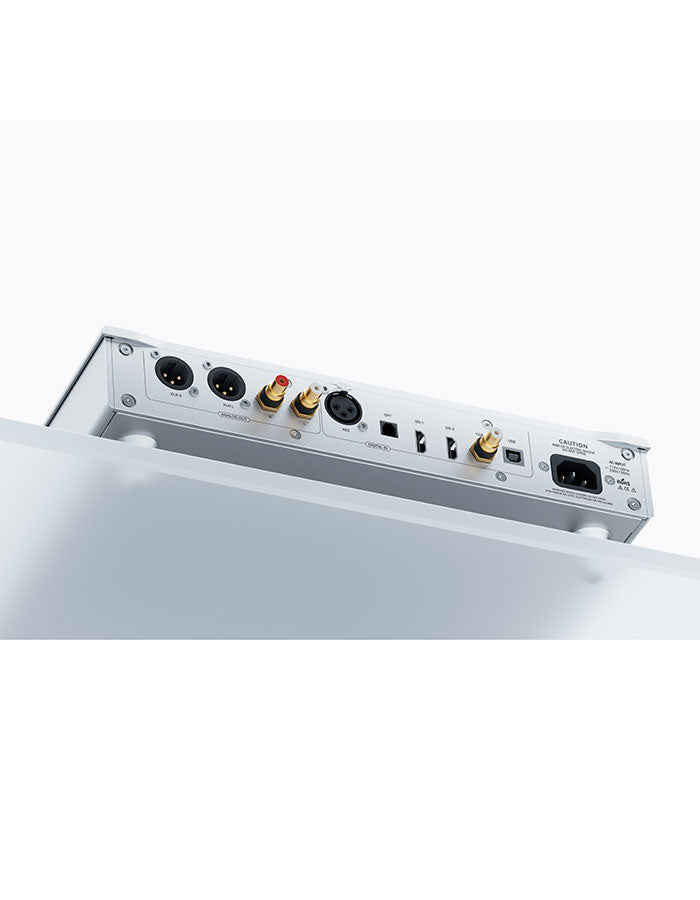

Inputs cover essentially everything: USB, optical, coaxial, AES/EBU, and two I2S inputs via HDMI sockets. The dual I2S inputs are notable — I2S compatibility is increasingly relevant as more streamers offer it as a primary output. Output is via balanced XLR and unbalanced RCA simultaneously. Front-panel volume control button, 2.23-inch orange OLED display, and IR remote control support (GRC-2 remote is a factory option).
The power supply uses a custom O-shaped low-noise transformer in a distinctive tripod-shaped tailstock — an aesthetic statement that also functions as vibration isolation for the transformer. Auto-selecting voltage handles both 115V and 230V operation without a manual switch.
Specifications
- FPGA: digital signal processing
- DAC architecture: 24-bit R2R
- Clocking: high precision, low jitter active crystal oscillators (45.1584 MHz, 49.152 MHz)
- USB interface: STM32F446 proprietary USB audio based on AMR
- Sound control: physical volume control button
- Display: OLED screen (2.23 inches, orange, 132 × 64 dot matrix)
- Chassis: customised tripod-shaped power tailstock
- Power supply: low-noise O-shaped customised transformer with low-noise power management
- Power input: AC ~115 V / 60 Hz, ~230 V / 50 Hz (automatic selection)
- Remote control: infrared supported, optional GRC-2 remote control
-
Digital inputs:
- USB audio
- OPT
- COAX
- AES
- I2S-1 (HDMI socket)
- I2S-2 (HDMI socket)
- Analog outputs: 2 × XLR (balanced), 2 × RCA (unbalanced), left and right channels respectively
