With the full reprogramming of ERCO’s software in combination with crucial changes in the analog circuitry, we are introducing a newer and better ERCO. The ERCO Gen 2 will bring our entry-level DAC one step closer to the performance levels of WANDLA, our flagship converter.
The whole design remains focused on a balanced and very transparent sound signature, making listening fatigue something of the past
Unique output cable design: two wires delivering the power and two wires providing the feedback to ensure flat voltage at every moment. We named this technique Ferrum Power Link (FPL) and it eliminates the harmful effects of the cable's resistance effectively improving transient response. The current delivery speed at the powered device's input is significantly improved.

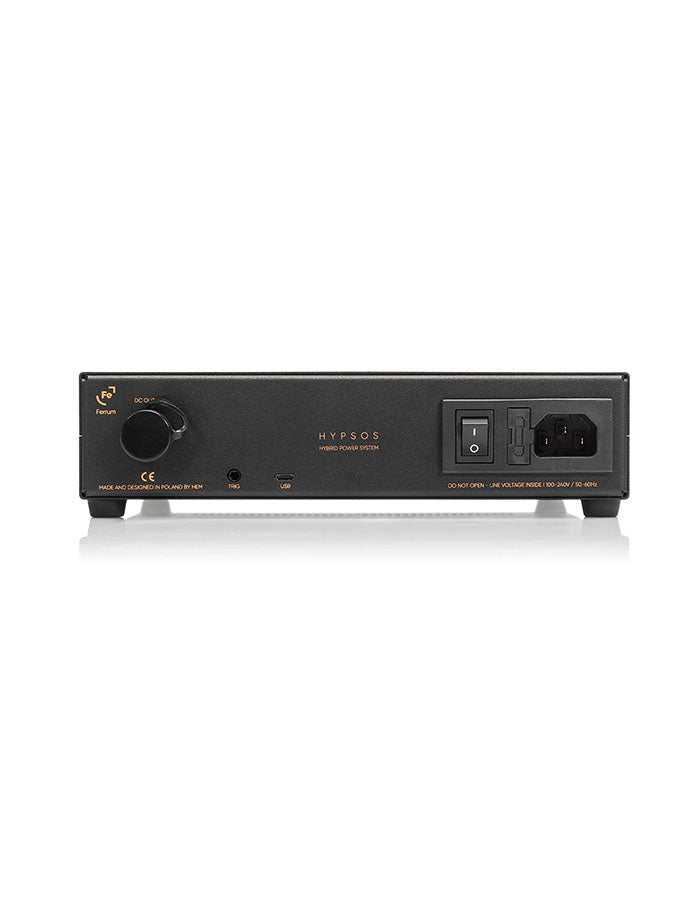

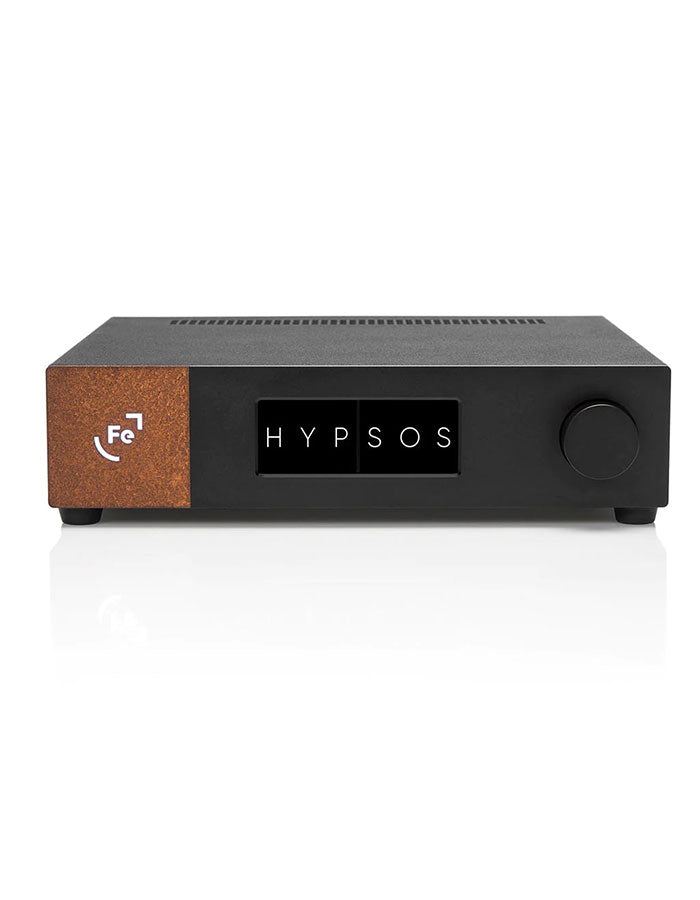

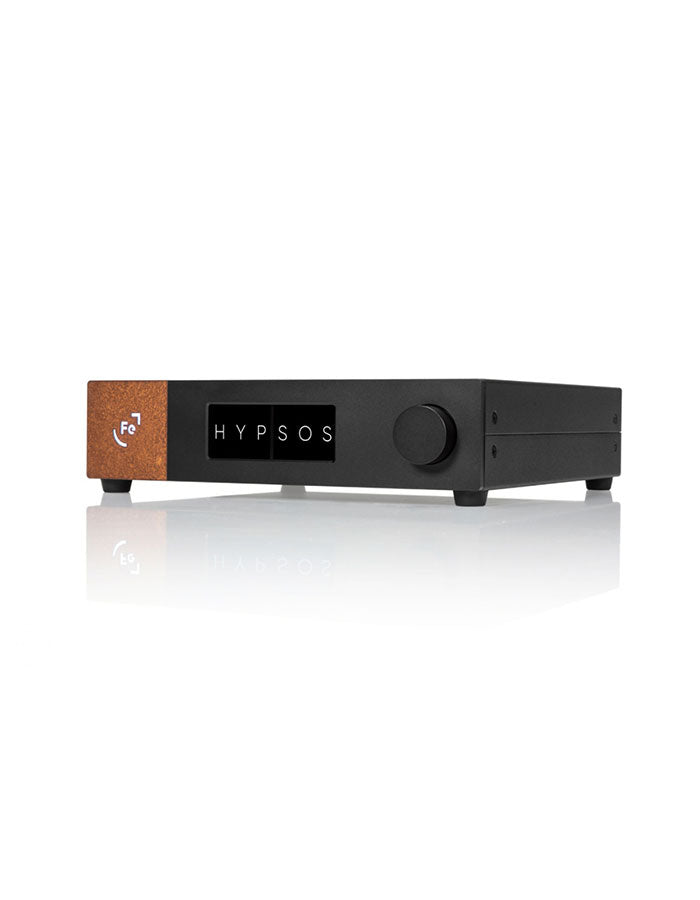

ERCO Gen2 comes with a carefully selected DC power adapter. To get the most out of ERCO Gen2 you can connect it with HYPSOS using our proprietary Ferrum Power Link DC power cable. HYPSOS then will perform to its maximum, unleashing unheard musicality from the combination with ERCO. This FPL cable can be ordered separately.
Pairs well with
In stock! Ships within 1-3 business days
30-day returns - see return policy

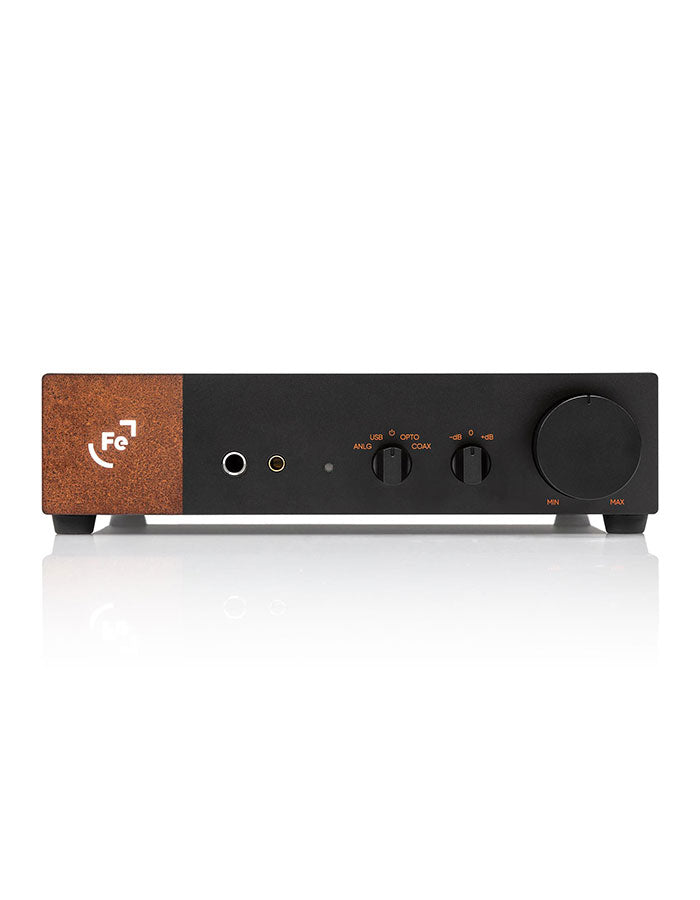

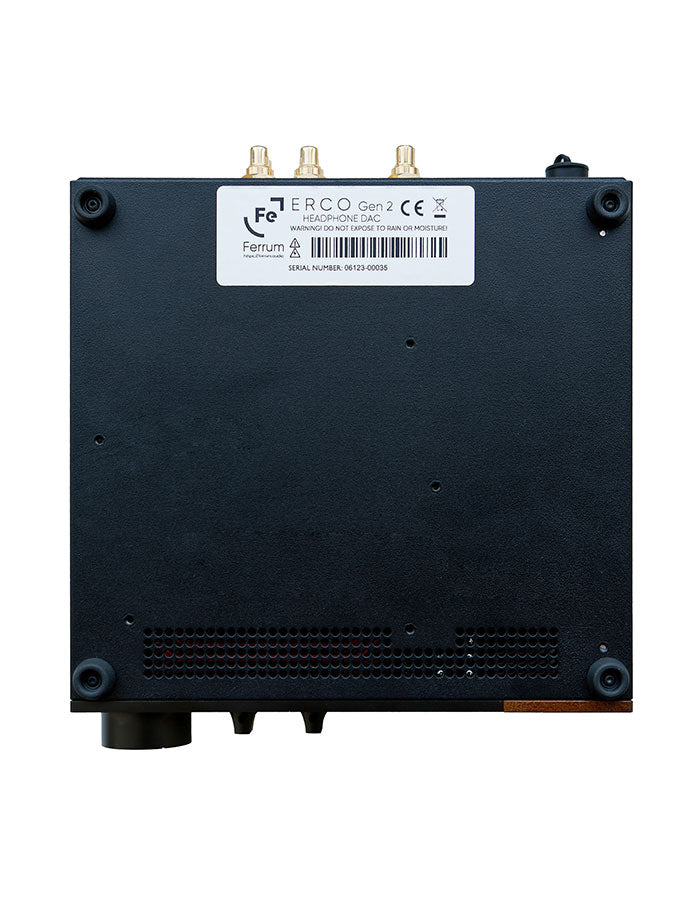

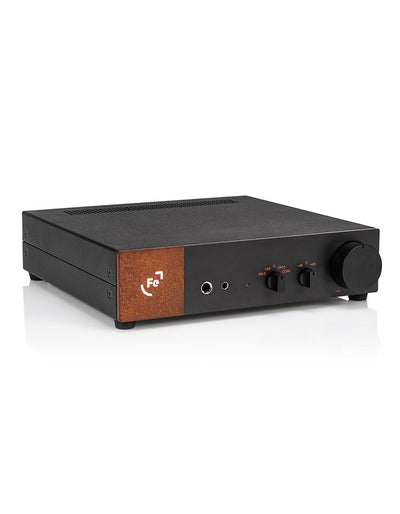

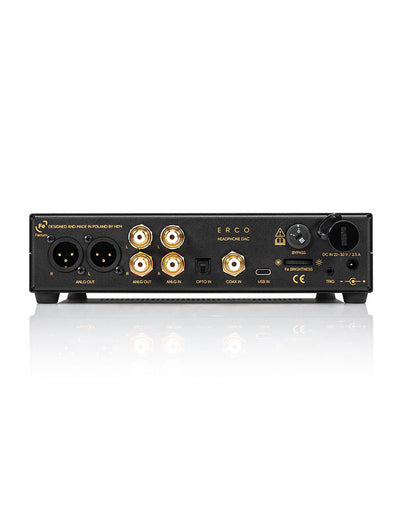

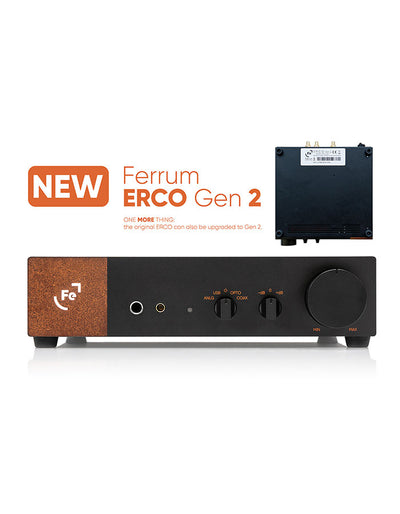

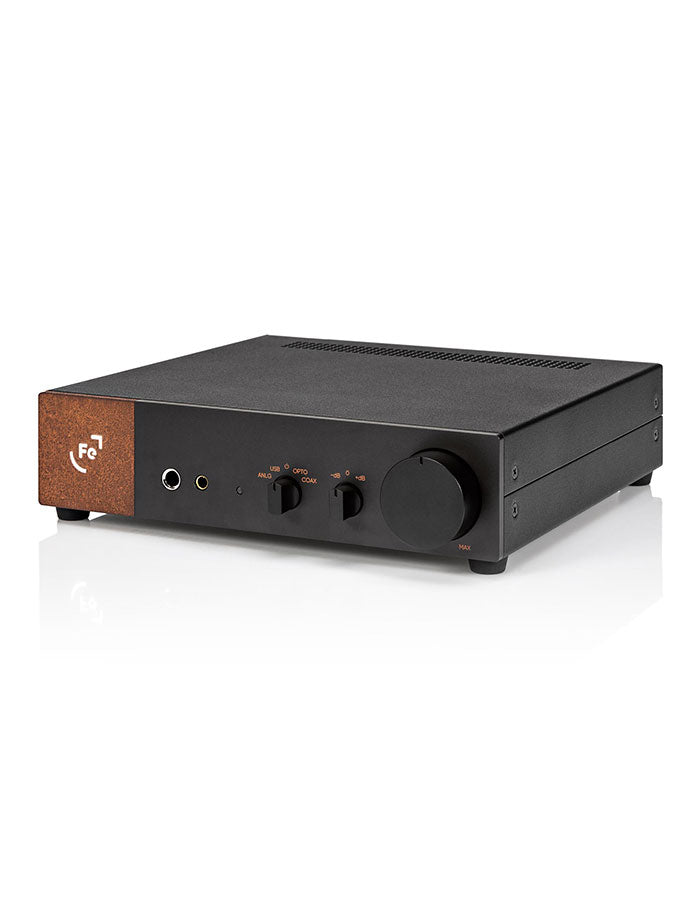

Ferrum ERCO Gen2 - Headphone Dac/Amp
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Cables: FREE 2-4-day domestic shipping.
Components: FREE domestic shipping on most of our component and speaker products. -
Customer Support
Our expert audio enthusiast will guide you through this musical journey. Rob is available to answer your questions so that you can join the countless high-end audio systems satisfied clients.
-
FAQ’s
Audio Art Cable strategically assembles cost effective Hi-fi systems with overachieving performance. The cable mission is simple, deliver factory direct to consumers at an exceptional price. Components are curated from the best manufacturers around the world with a value that cannot be surpassed.
-
Contact Us
(619) 255-6451
rob@audioartcable.com
or click the chat icon
Product details
Description
- ERCO fully balanced headphone DAC/AMP- The signal path is truly balanced from early D/A stage and becomes truly balanced using the RCA inputs.
- Improved I/V converter- The I/V converter stage has better overall performance and SERCE’s DSP engine provides oversampling using DDF preferred HQ Apodizing digital filter, which get the most out of the DAC chip almost emulating WANDLA performance.. Last but not least maximum resolution is now PCM 768kHz and DSD512.
- Improved DSP engine
- Improved Digital Filter (HQ Apodizing)
- Improved max resolution (768kHz/DSD512)
- Proprietary IC power amp design- Ultra-wideband ICs fine tuned for audio use to achieve the best possible analog quality.
- Proprietary optimized-for-audio digital inputs- Perfect mix of flagship Ferrum technology combined with high grade in house developed Digital to Analog conversion. Choose from three digital and one analog input.
- Proprietary optimized MQA rendering and decoding for ARM chip- Industry leading technology is applied. All digital ports are optimized for audio, MQA decoding and rendering is optimized for use with internal ARM chip.
- Proprietary 4-pin Ferrum connector for HYPSOS
- Balanced 4,4mm jack and unbalanced 6,35mm jack headphone outputs
- Balanced XLR and unbalanced RCA line outputs- Connect your favourite headphones to the balanced 4,4mm jack or unbalanced 6,35mm headphone jack outputs or powered loudspeakers on your desktop to the XLR or RCA outputs to perform to their max.
Specifications
- Headphone output gain: balanced -5.8 dB, +6 dB, +17.8 dB; single ended -11.8 dB, 0 dB, +11.8 dB
- Operation: fully balanced, proprietary IC power amp
- Power inputs: 5.5/2.5 mm DC connector center positive; proprietary FPL 4-pin DC connector (FPL)
- Analog inputs: RCA (Red book level 2V RMS recommended, PRO level supported)
- Digital inputs: USB-C (MQA, up to PCM 32-bit/768kHz, DSD512, DoP256); S/PDIF coaxial (MQA, up to PCM 24-bit/192 kHz, DoP64); S/PDIF optical (MQA, up to PCM 24-bit/96 kHz guaranteed, should work up to PCM 24-bit/192 kHz and DoP64 – depends of user’s optical cable and transmitter)
- DAC chip: ESS Sabre ES9028PRO
- PCM sample rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 / 352.8 / 384 / 705.6 / 768 kHz
- DSD sample rates: 2.8224 / 3.072 / 5.6448 / 6.144 / 11.2896 / 12.288 / 22.5792 / 24.576 MHz
- DAC resolution: PCM up to 768k@32bit; DSD up to 512 (22.6 MHz / 24.6 MHz)
- MQA: decoder and renderer (USB, OPTO and COAX inputs)
- Headphone jack outputs: balanced 4.4 mm (TRRRS); unbalanced 6.35 mm (TRS)
- Line outputs: balanced XLR; unbalanced RCA (both Red book level: 4V RMS bal./2V RMS unbal.)
- Volume control: analogue with bypass option (bypass for line outputs only)
- Frequency response: 10 Hz – 30 kHz (+/- 0.05 dB); 10 Hz – 200 kHz (+/- 1 dB)
- Output power unbalanced: 300 mW into 300 Ω; 1.7 W into 50 Ω
- Output power balanced: 1.2 W into 300 Ω; 6.1 W into 50 Ω
- THD on balanced output: < 0.00018% / -115 dB, 1 mW into 16 Ω; < 0.00018% / -115 dB, 100 mW into 16 Ω
- THD on unbalanced output: < 0.00032% / -110 dB, 1 mW into 16 Ω; < 0.00057% / -105 dB, 100 mW into 16 Ω
- Dynamic range analog: 129 dB (A-weighted)
- Dynamic range digital: 117 dB (A-weighted)
- Input impedance: 47 kΩ
- Output impedance unbalanced: 22 Ω on pre-amp
- Output impedance balanced: 44 Ω on pre-amp
- Output impedance Headphones: < 0.3 Ω
- Power consumption: idle <15 W
- Power adapter: 100-240 VAC to 22-30 VDC
- Dimensions (W x D x H): 21.7 cm x 20.6 cm x 5 cm / 8.6” x 8.1” x 2.0”
- Weight: 1.8 kg / 3.97 lbs
Media Reviews
You may also like

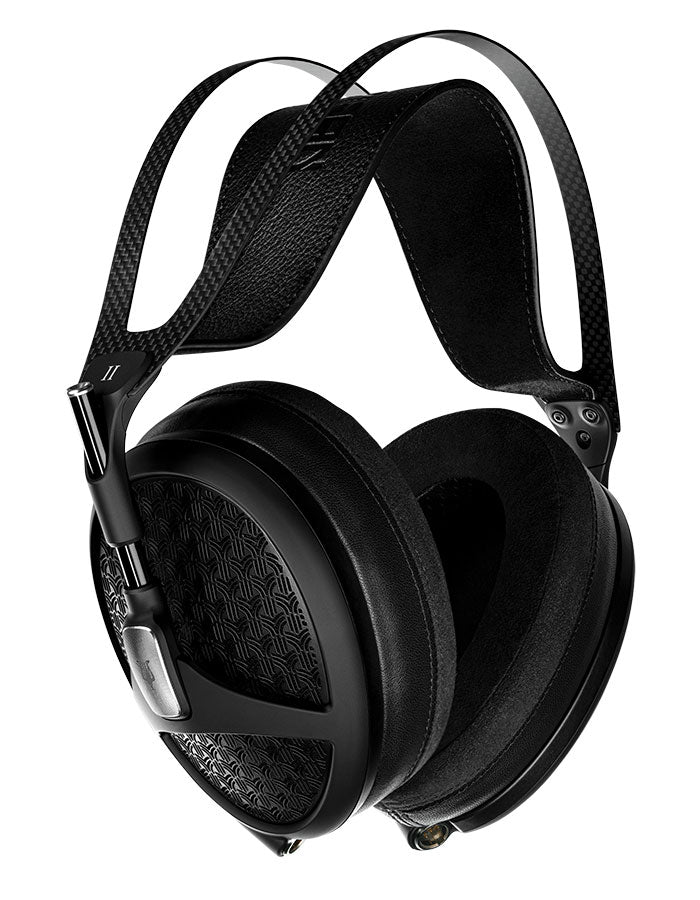

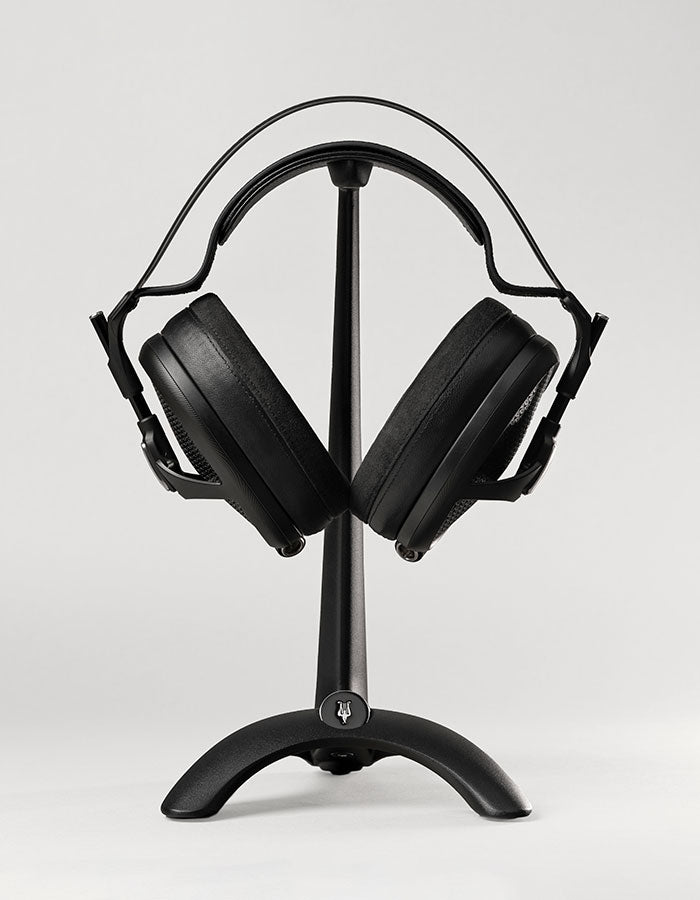

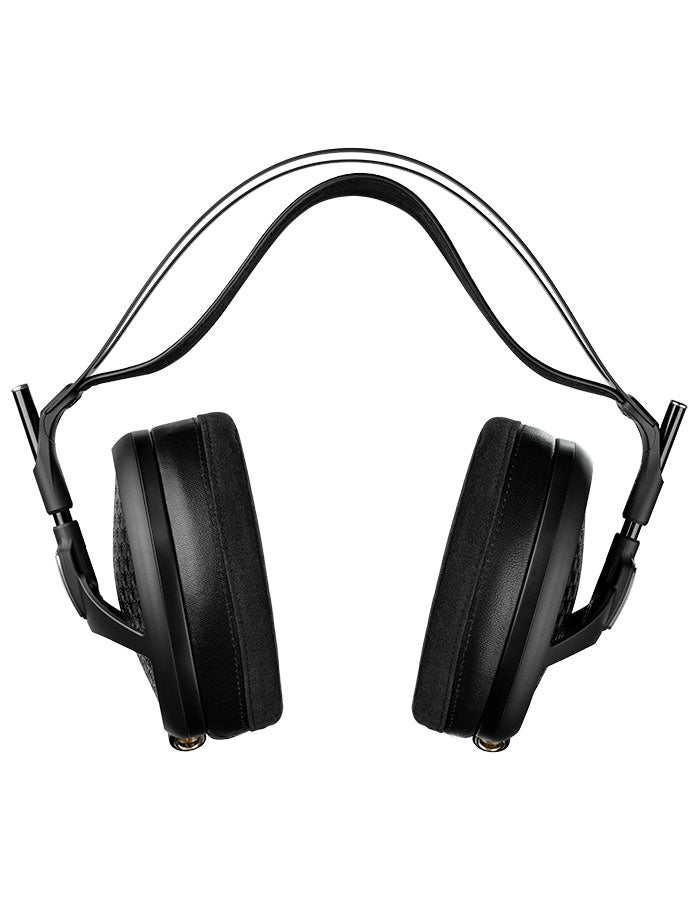

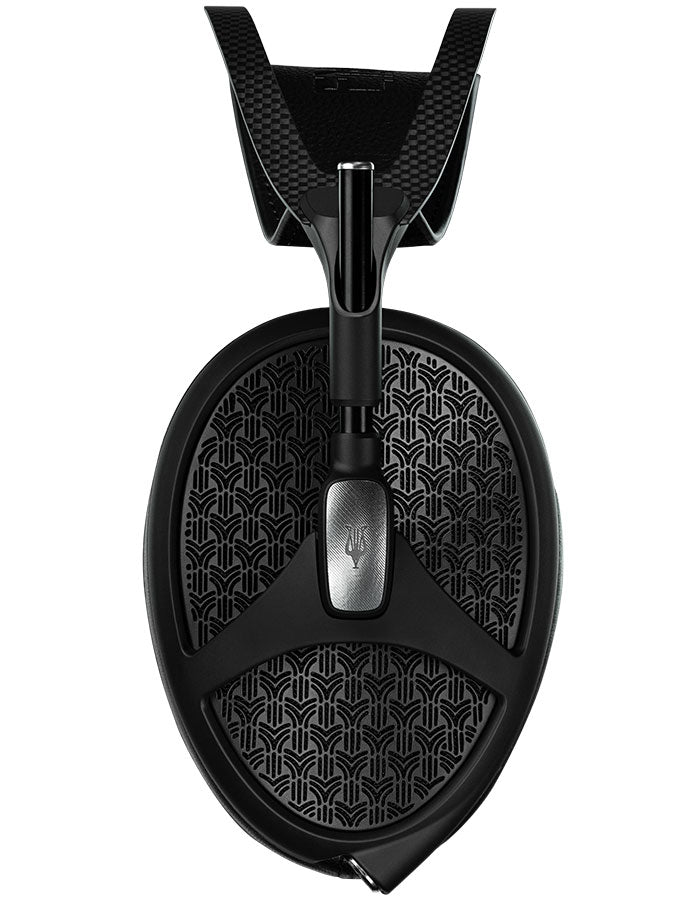

Meze Audio Empyrean II Headphone

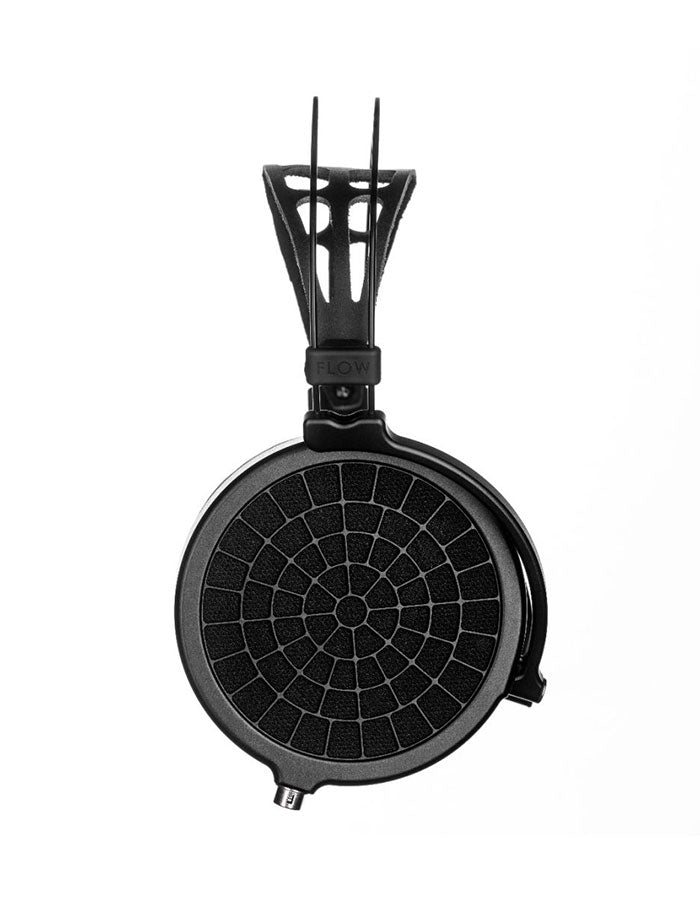

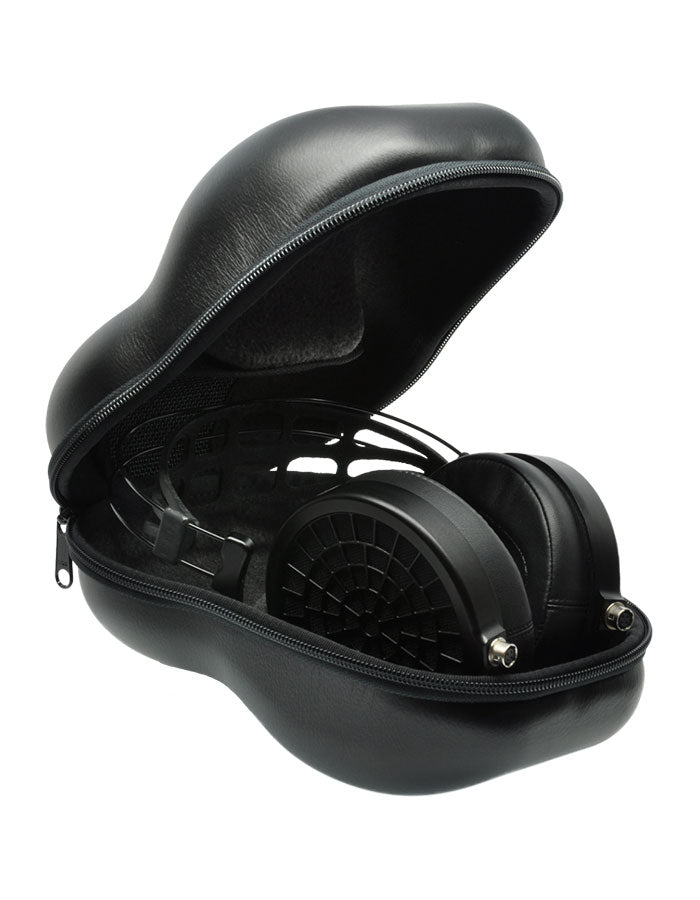

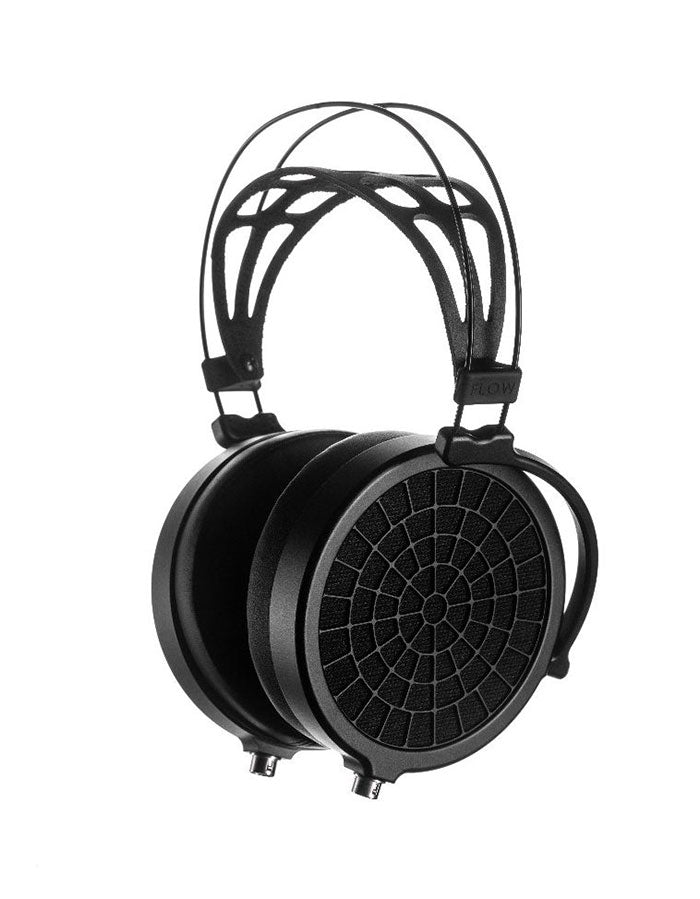

Dan Clark Audio Ether 2 System Headphones
