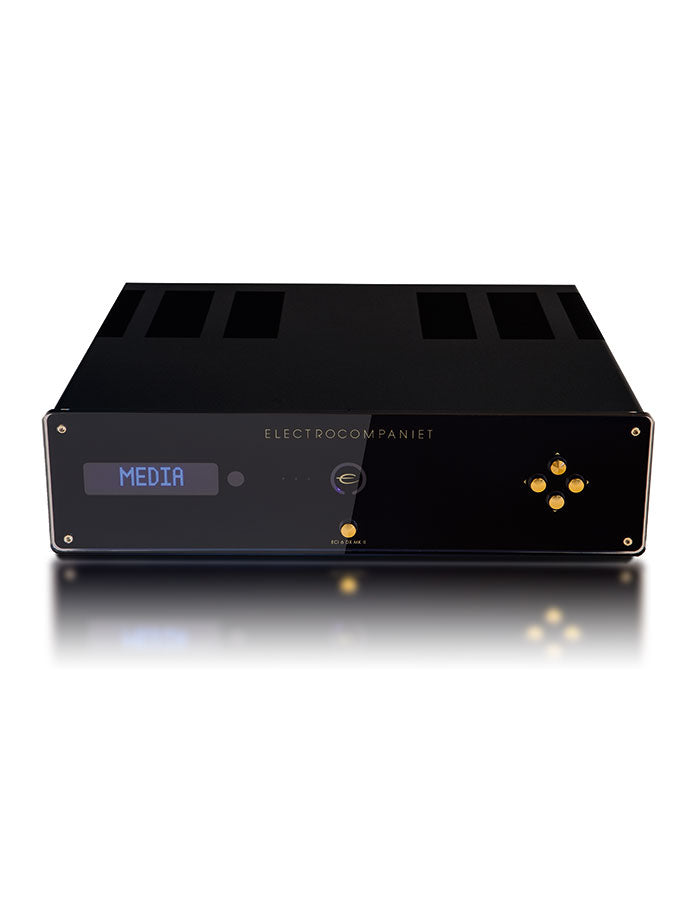

Electrocompaniet ECI 6 DX MKII Integrated Amp/Dac/Streamer
In stock
The new ECI 6 DX MKII combines a best-in-class feature set with cutting edge audio technology and true Electrocompaniet sound.
A single “all-in-one” unit, the 6DX is able to play whichever, wherever and whatever audio source you may have, and makes it sound like music was meant to be sounding.
At it's core, the ECI 6 DX MKII is a powerful integrated amplifier equipped with 4 analogue inputs, including fully balanced XLR. ECI 6 DX MKII offers 2 x 125 Watts into 8 ohms, 2x 200 watts into 4 ohms, and 2x 370 watts into 2 ohms, and is based on the successful ECI 5 MK II. To enhance the design further, Electrocompaniet has equipped the ECI 6 DX MKII with an improved and enhanced power supply along with a more sophisticated preamplifier module.
As a result ECI 6 DX MKII offers the discerning audio enthusiast an extremely substantial and dynamic amplifier, DAC, and streamer capable of controlling a wide range of speakers on the market.
| All measurements are made at 120V / 240V //50Hz / 60Hz | |
| Digital section | |
| D/A converter | 24 bit/192 kHz |
| Sample rate converter | 24bit / 192kHz |
| Inputs | SPDIF, 2x Toslink, 1x USB |
| USB | asynchronous up to 24bit/ 192kHz supported |
| SPDIF | 24bit/ 192kHz |
| Toslink | 24bit/ 96kHz |
| Streamer section |
|
| Streaming services |
|
| Supported formats | All popular formats including: WAV/WAVE, MP3, AAC+, Vorbis, ALAC, FLAC, APE, WMA, up to 192kHZ/24bit, DSD, up to DSD 128 (5.6 MHz) |
| Preamplifier section | |
|
Input impedance ( Balanced input ) |
47Kohm |
| Maximum input level | 10 Volt RMS |
|
Noise floor ( 1Vrms, 20 - 20 kHz, balanced) |
-135 dB |
|
THD + N (1Vrms, 20 - 20 kHz, balanced) |
<0.004% |
| Gain (Balanced) | 0 dB |
| Amplifier section | |
| Output Impedance | < 0,02 Ohm |
| Frequency response | 1 – 150 kHz |
| Channel separation | > 120 dB |
| THD ( 20 - 20 kHz) | < 0.004% |
| Maximum peak current | >100A |
| Damping factor 8 ohm load | >350 |
| I Input sensitivity 120W output | 1.3Vrms |
| Input sensitivity HT 120W output | 1Vrms |
| Gain HT Input | x36 (31 dB) |
| Rated output power |
8 ohms: 2 x 125 W 4 ohms: 2 x 200 W 2 ohms: 2 x 370 W |
| Power consumption | 110 W |
| Standby (no load or signal) | 1W |
| WEIGHT & DIMENSIONS | Weight: 20,5 Kg / 45 lbs. Width: 470 mm / 18.3 inches Depth: 430 mm / 16.9 inches Height: 128 mm / 5 inches |
