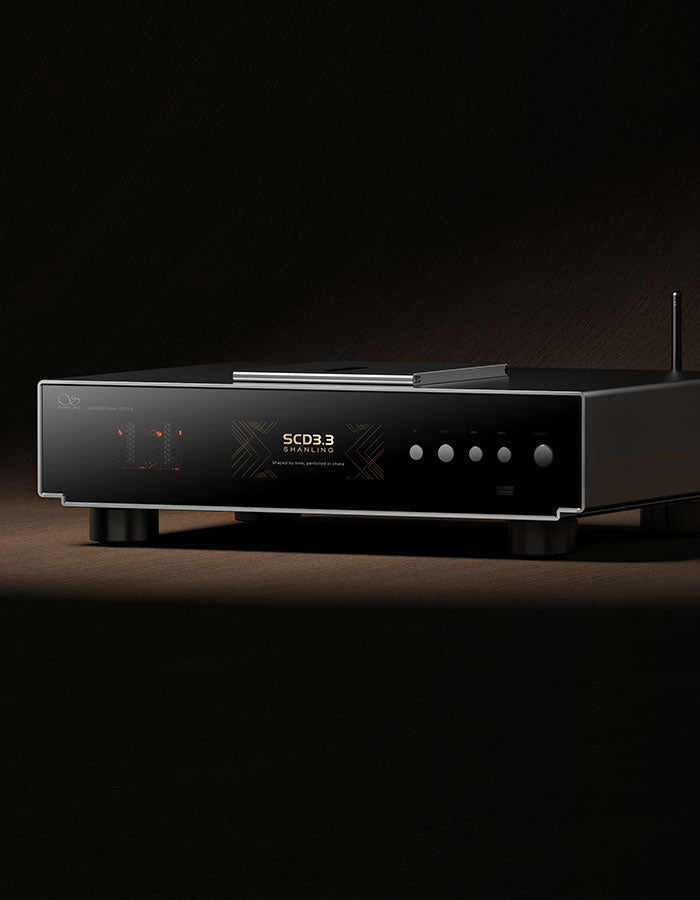

Shanling SCD3.3 SACD Player
Out of stock
**CONTACT US TO PRE-ORDER FOR EARLY FEBRUARY SHIPPING **
Combining Shanling's unique SACD reading capabilities with the 2nd generation of R2R DAC and adding in a classic tube audio output, representing the Ultimate Level of Audio Source for the most demanding Hi-Fi setups!
The Shanling SCD3.3 combines the classic SACD/CD playback experience with modern engineering solutions. This device is not simply a player, but an audiophile center that shows every detail of music in a new light. The massive housing houses a second-generation R2R DAC, which is built from 212 pieces of extremely precise resistors. This solution does not give the typical chip-based DAC sound, but a much more organic, analog-feeling sound - with detailed, airy, yet natural tones.
FEATURES
- Proprietary Disc System with HD850 Laser

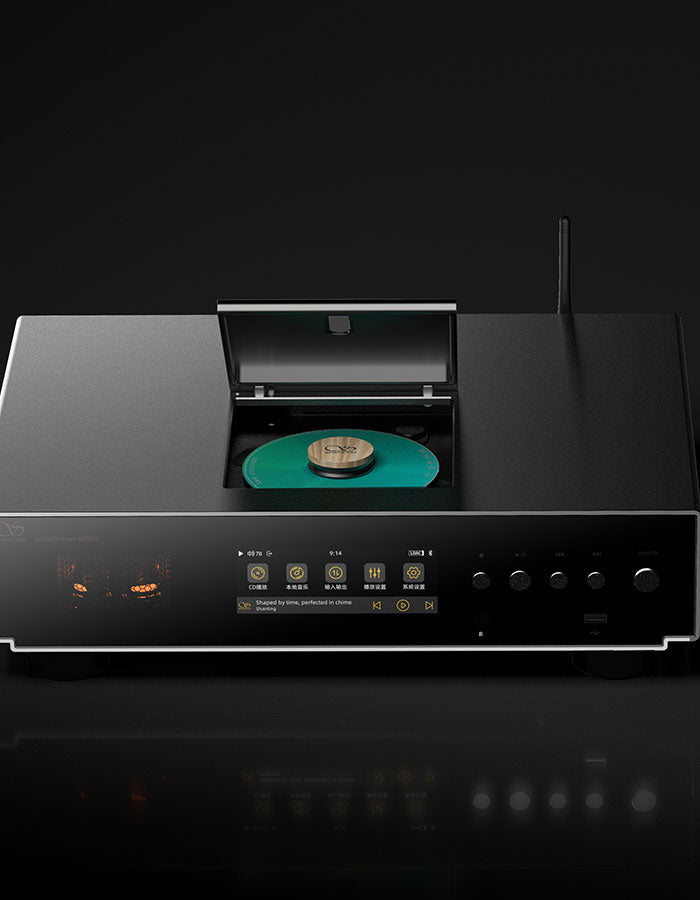

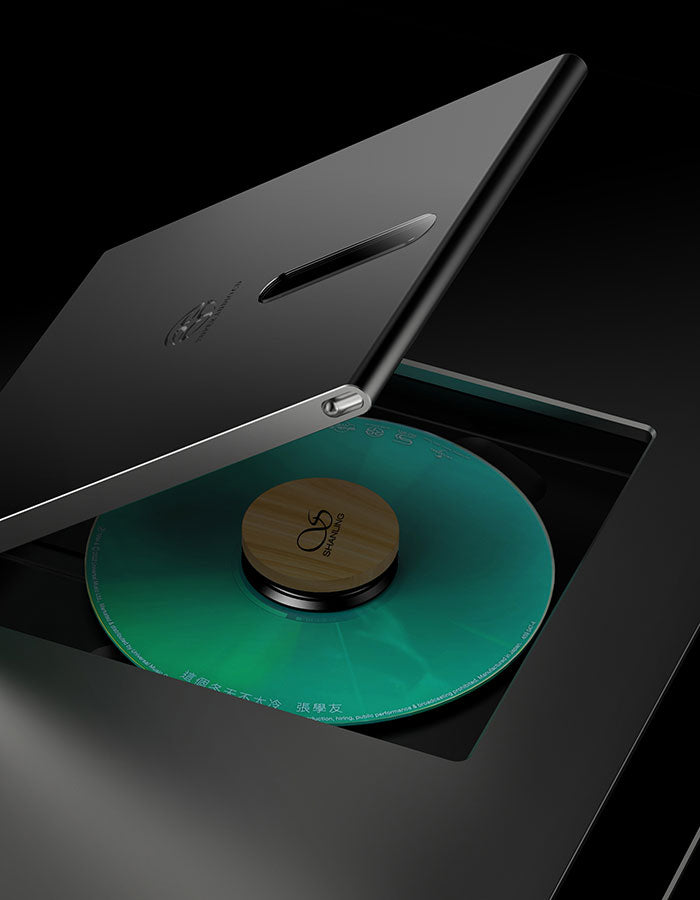

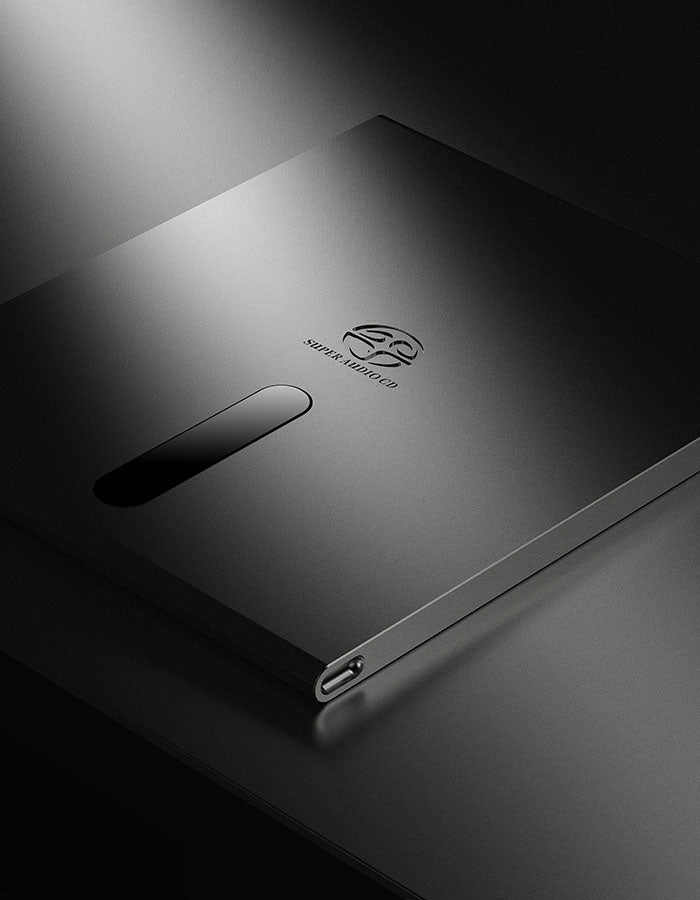

- Top-Loading Drive with dedicated CD Puck
- True DSD data from SACD for internal DAC and Digital Outputs (I2S & Coaxial)
- 2nd generation of R2R DAC module, utilizing 212x 0.01% ultra-precision resistors
- Classic 12AT7 Tube Output

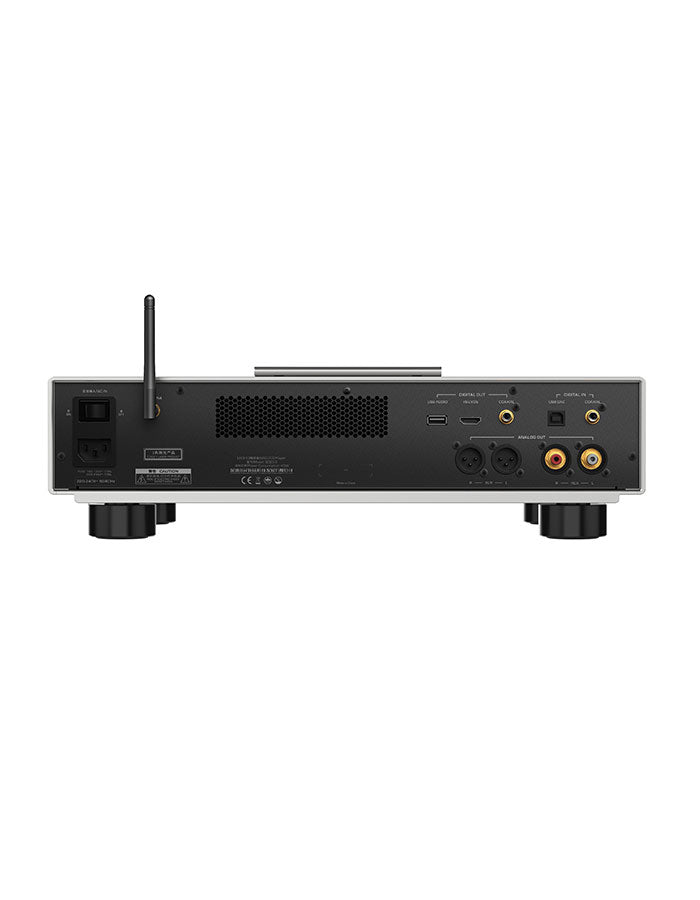

- RCA & XLR Outputs, Line-out & Pre-amplifier Mode
- FPGA-assisted I2S output with 10 pinout modes, offering Native DSD transport
- Dual 66W Transformer Power Supply

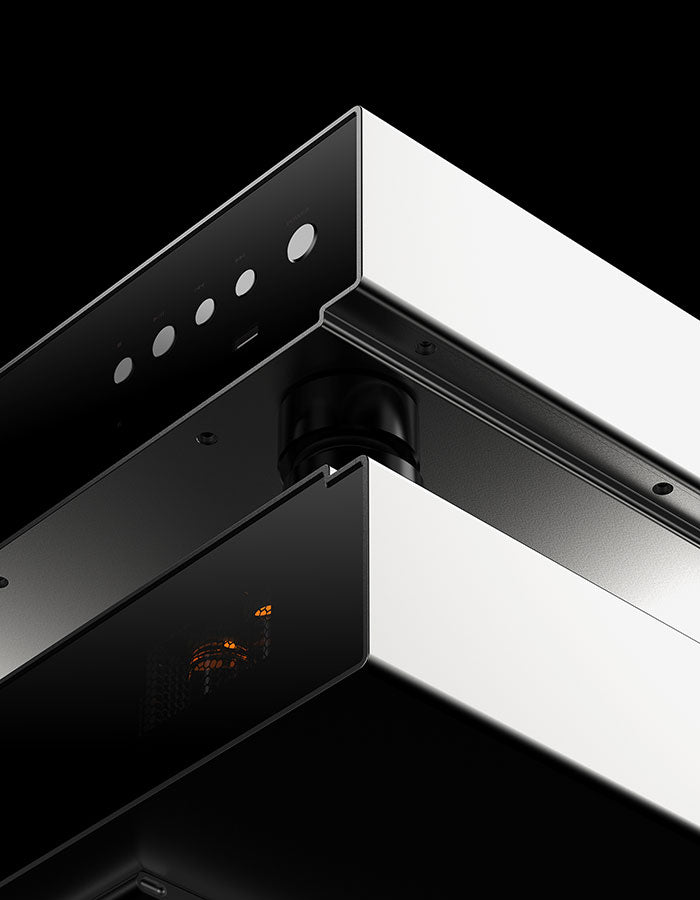

- Robust Aluminium chassis, total weight at 10kg
- In-House Developed Music Focused System
- USB Drive Playback & Bluetooth Receiver Function
- 5-Inch Touch screen, Remote Controller, Companion App
General
- Dimensions: 430 × 319 × 91 mm (without CD cover)
- Weight: ~10 kg
- Processor: Ingenic X2000
- Power: Dual R30 transformers (66 W total) + 15 W module
- Voltage: Region-locked 100 V or 220 V
Supported Playback Modes
- SACD/CD
- USB DAC
- Coaxial digital input
- USB Drive
- Bluetooth receiver
USB DAC / USB Output
- Processor: XMOS XU316 processor
- PCM: up to 768 kHz/32-bit
- DSD: up to DSD512
- (USB output not available for SACD playback)
Digital Output Limits
- I2S: PCM 768 kHz, DSD512 (DSD64 for SACD)
- Coaxial SPDIF: PCM 192 kHz, DoP DSD64
USB Drive Format Support
- PCM: 768 kHz/32-bit
- DSD: DSD512 (ISO, DSF, DFF)
- FLAC, WAV, AIFF, ALAC, APE, MP3, WMA, AAC, OGG, OPUS, M4A, MP2, AC3, DTS, M3U, M3U8
Analog Output Performance
-
RCA (Line Out):
Output Level: 2.45 Vrms;
Frequency Response: 20 Hz – 40 kHz (−0.3 dB);
THD+N: 0.15%;
Crosstalk: 110 dB;
Dynamic Range: 117 dB;
SNR: 117 dB -
XLR (Line Out):
Output Level: 4.9 Vrms;
Frequency Response: 20 Hz – 40 kHz (−0.3 dB);
THD+N: 0.15%;
Channel Separation: 110 dB;
Dynamic Range: 117 dB;
SNR: 117 dB
