The Shanling EC Zero AKM, a new addition to the high-end section of the portable CD player market, takes on the same features of the EC Zero T with it's highly stable CD playback, but opting for a more straightforward AKM DAC section and simpler amplifiers.
Pairs well with
25% off any AAC cable with the purchase of a component or speaker (automatically discounts in cart; excludes upgrades and accessories)
In stock! Ships within 1-3 business days
30-day returns - see return policy

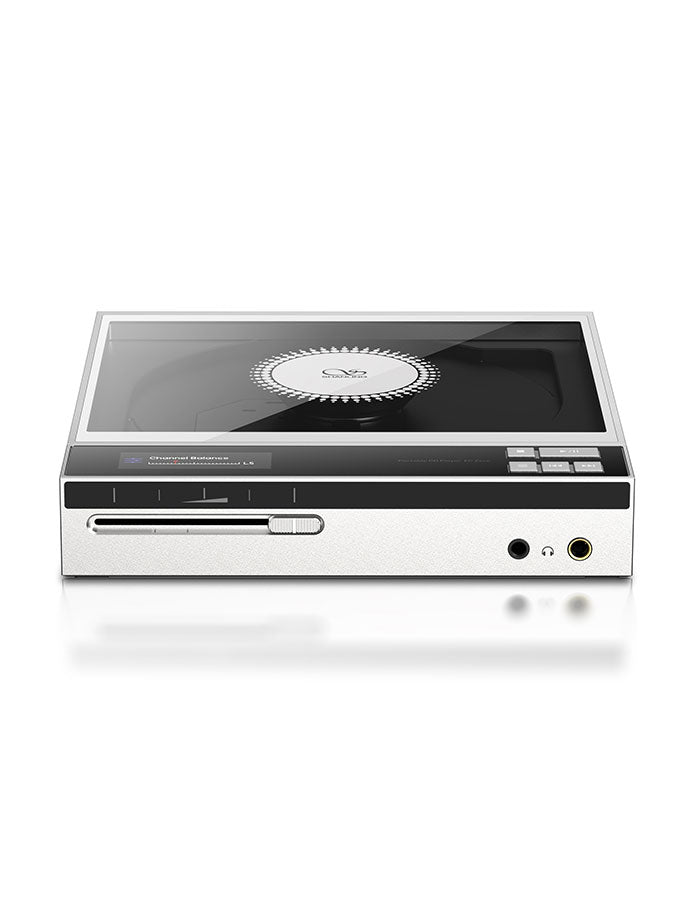

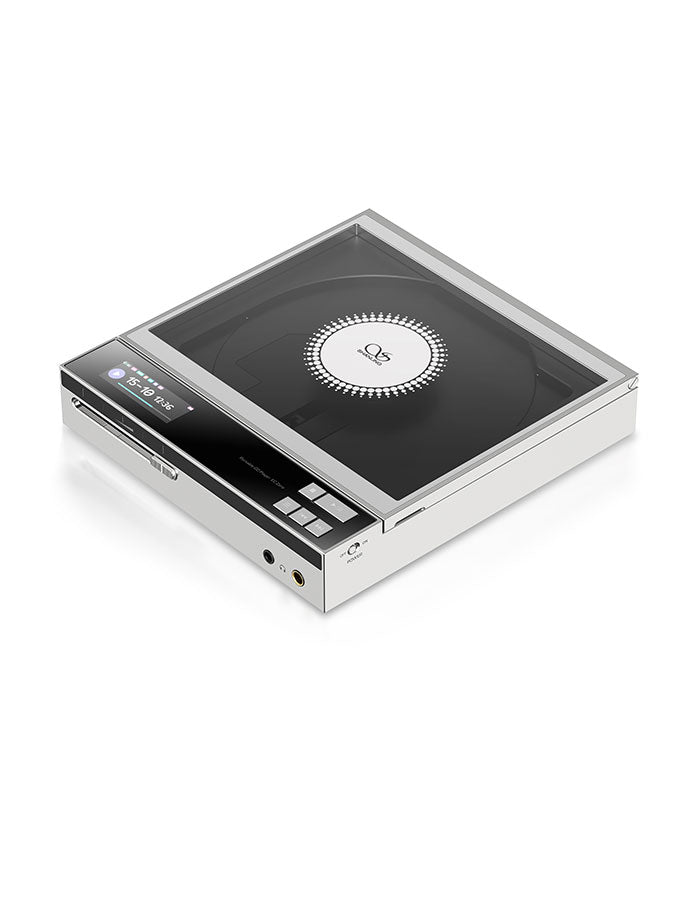

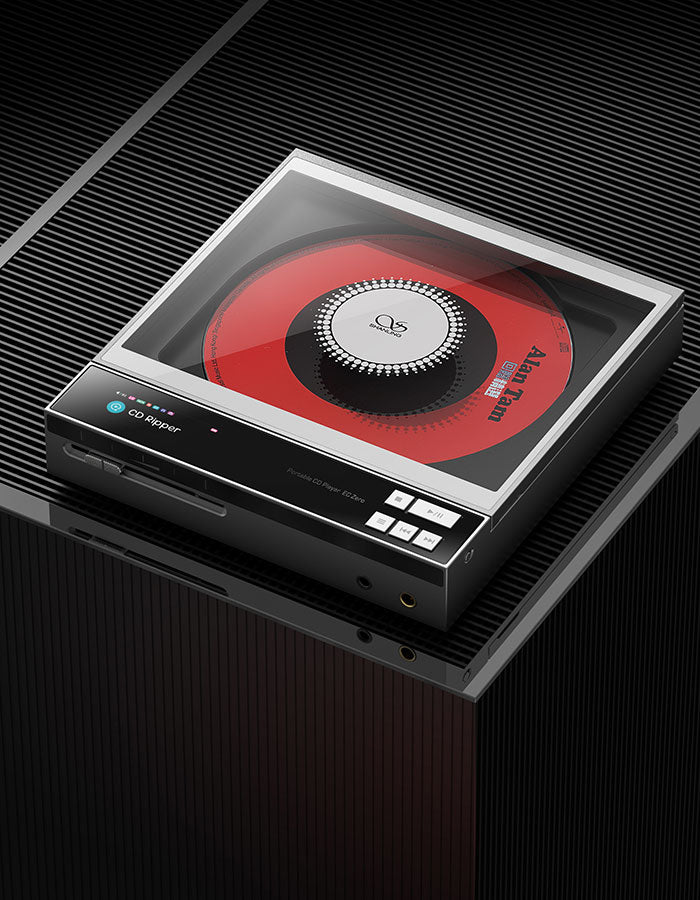

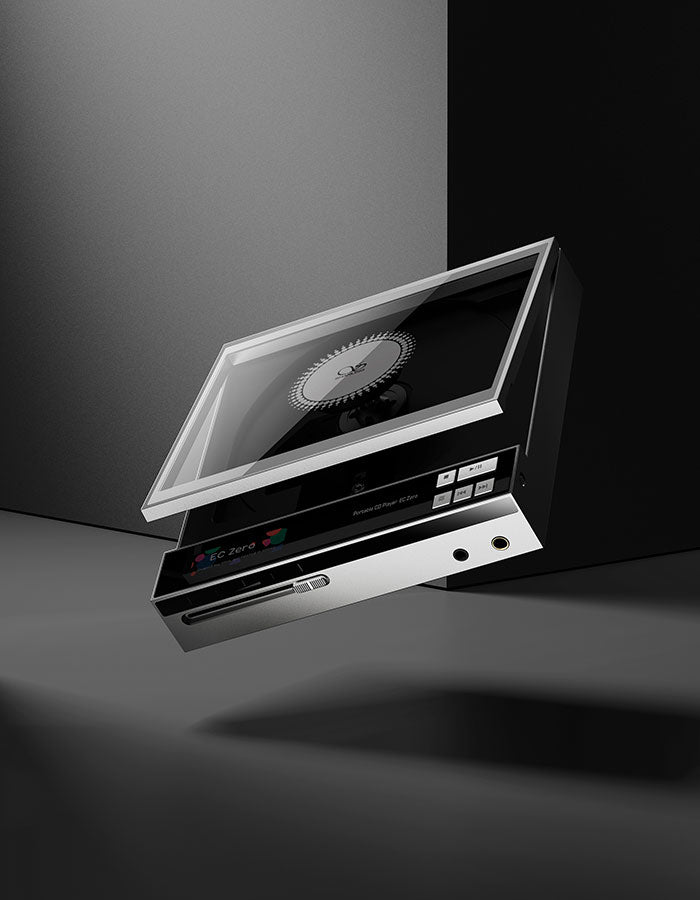

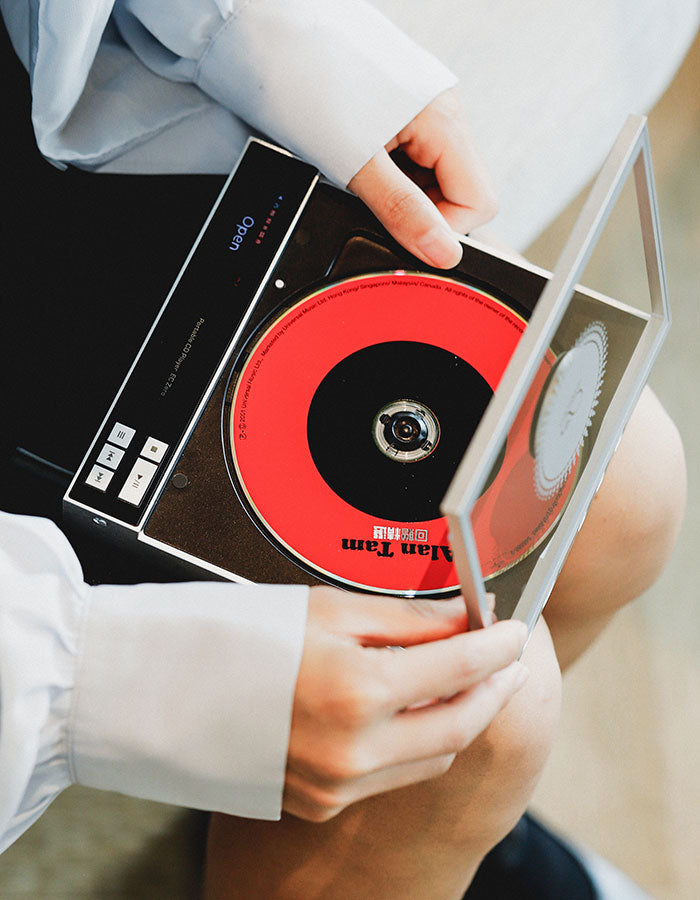

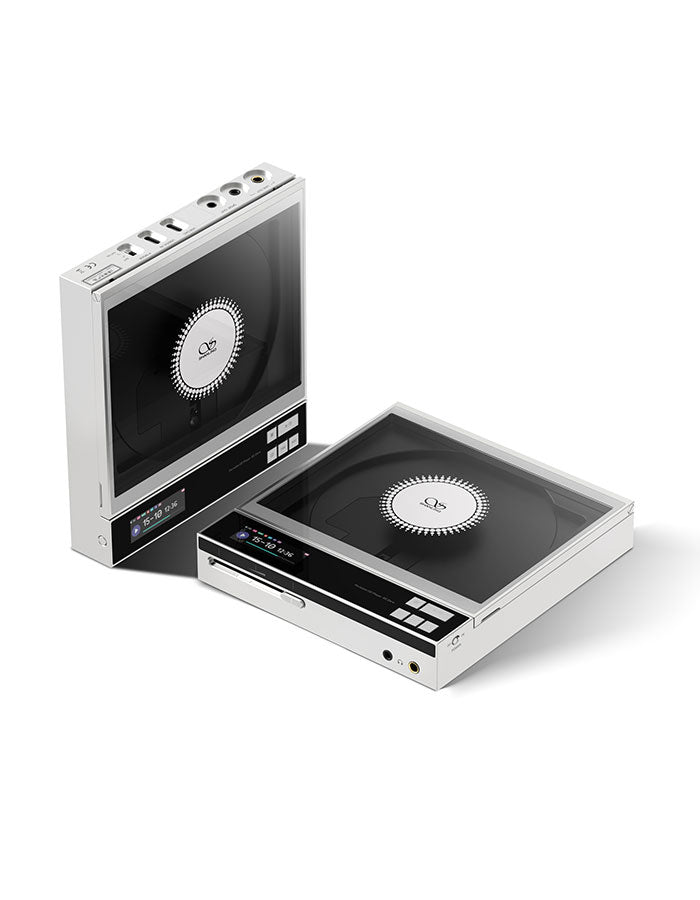

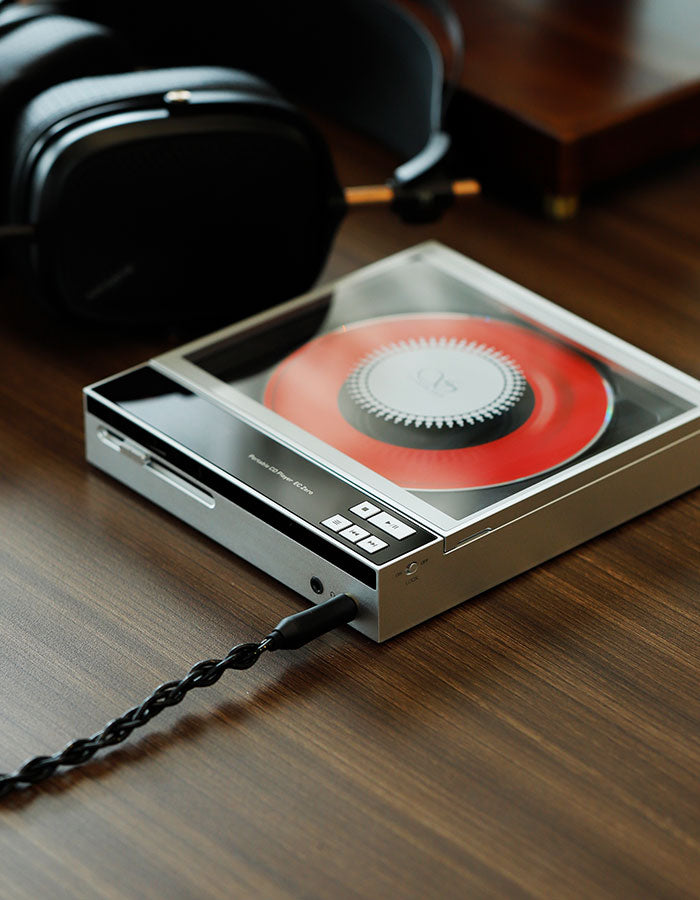

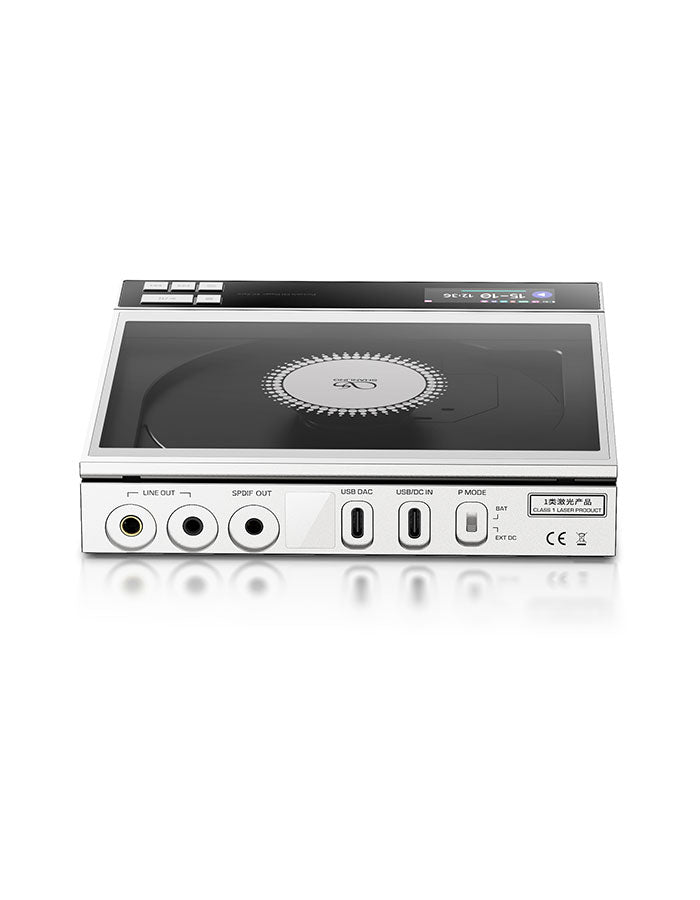

Shanling ECZero AKM Portable CD Player with AKM Chip
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Cables: FREE 2-4-day domestic shipping.
Components: FREE domestic shipping on most of our component and speaker products. -
Customer Support
Our expert audio enthusiast will guide you through this musical journey. Rob is available to answer your questions so that you can join the countless high-end audio systems satisfied clients.
-
FAQ’s
Audio Art Cable strategically assembles cost effective Hi-fi systems with overachieving performance. The cable mission is simple, deliver factory direct to consumers at an exceptional price. Components are curated from the best manufacturers around the world with a value that cannot be surpassed.
-
Contact Us
(619) 255-6451
rob@audioartcable.com
or click the chat icon
Product details
Description
Next Step for Shanling's Portable CD Players - Active Magnetic Clamp
A new magnetic design continuously adjusts its position and pressure on the disc, effectively improving the stability of its spin, which significantly reduces undesired mechanical noise and vibrations of the CD drive.
Custom CD System
Built with a new compact CD Drive system, ensuring a desktop-level performance with high accuracy, while providing gapless playback for all CDs.
Advanced Anti-Shake Systems
Designed with increased focus on portable use, EC Zero utilizes a range of systems that provide uninterrupted and skip-free CD playback while listening on the go. Vertical or horizontal position, walking or sitting down, the playback stability stays the same.
Top-Grade Construction
Each unit undergoes a long testing and calibration procedure during the production cycle, guaranteeing a perfectly balanced and stable CD mechanism, so critical for ideal disc rotation and audio reproduction.
Smooth Side of High-Fidelity - AKM AK4493S DAC & Dual SGM Amplifiers
AKM DACs play a big role in the audio designs of Shanling, with the AK4493S well proving its great capabilities in a range of our devices. Now EC Zero will utilize this DAC and all our extensive Hi-Fi knowledge to deliver warmer tuned and perfectly natural sounding CD playback on the go. Headphone section features a pair of SGM8262 amplifiers, delivering a transparent and powerful output, reaching up to 836mW @32 Ohms With the accurate 100-step volume control and swift volume slider, EC Zero will be a lovely pairing for both sensitive Earphones and harder to drive full-size Headphones.
What to expect from EC Zero AKM in comparison to EC Zero T?
- AKM AK4493S DAC
- Dual SGM8262-2 amplifiers
- Extended battery life up to 10 hours of continuous playback
- Comparable Output power when run on battery power
- Low output impedance for improved compatibility with sensitive IEMs
- Same inputs/outputs, features, design, UI, accessory compatibility
Specifications
- Dimensions: 158 × 150 × 28.6 mm
- Weight: 575.8g
- Display: 1.68-inch LCD screen
- Supported Formats: 768kHz/32bit, DSD512
- Gain Compensation: High/Low
- DAC: AKM AK4493S DAC
- Digital Filters: 5 selectable digital filters（*CD Ripping Function supports only FAT32 storage devices）
- Bluetooth Version: 5.3
- Bluetooth Transmission Support: aptX Adaptiv/aptX/SBC
Headphone Output (3.5mm)
- Low Gain: 52mW@32Ω
- High Gain: 122mW@32Ω
- High Gain (with external power): 213mW@32Ω
- USB DAC Frequency Response: 20Hz–40kHz (-1dB)
- CD Playback Frequency Response: 20Hz–20kHz (-0.5dB)
- THD+N: 0.0004% (A-weighted@1V)
- Dynamic Range: 117dB
- Channel Separation: 79dB
- SNR (Signal-to-Noise Ratio): 117dB
- Noise: 111dB
- Output Impedance: 0.6Ω
Line-Out Output (3.5mm)
- Voltage: 2.05Vrms
- Frequency Response: 20Hz–40kHz (-0.5 dB)
- THD+N: 0.0005%
- SNR: 117dB
Headphone Output (4.4mm Balanced)
- Low Gain: 211mW@32Ω
- High Gain: 525mW@32Ω
- High Gain (with external power): 836mW@32Ω
- USB DAC Frequency Response: 20Hz–40kHz (-1dB)
- CD Playback Frequency Response: 20Hz–20kHz (-0.5dB)
- THD+N: 0.0004% (A-weighted@2V)
- Dynamic Range: 119dB
- Channel Separation: 103dB
- SNR (Signal-to-Noise Ratio): 119dB
- Noise: 107dB
- Output Impedance: 0.8Ω
Balanced Line-Out (4.4mm)
- Voltage: 4.1Vrms
- Frequency Response: 20Hz–40kHz (-0.5 dB)
- THD+N: 0.0005%
- SNR: 119dB
Inside the Box
- 1 x Shanling EC Zero
- User Manual
