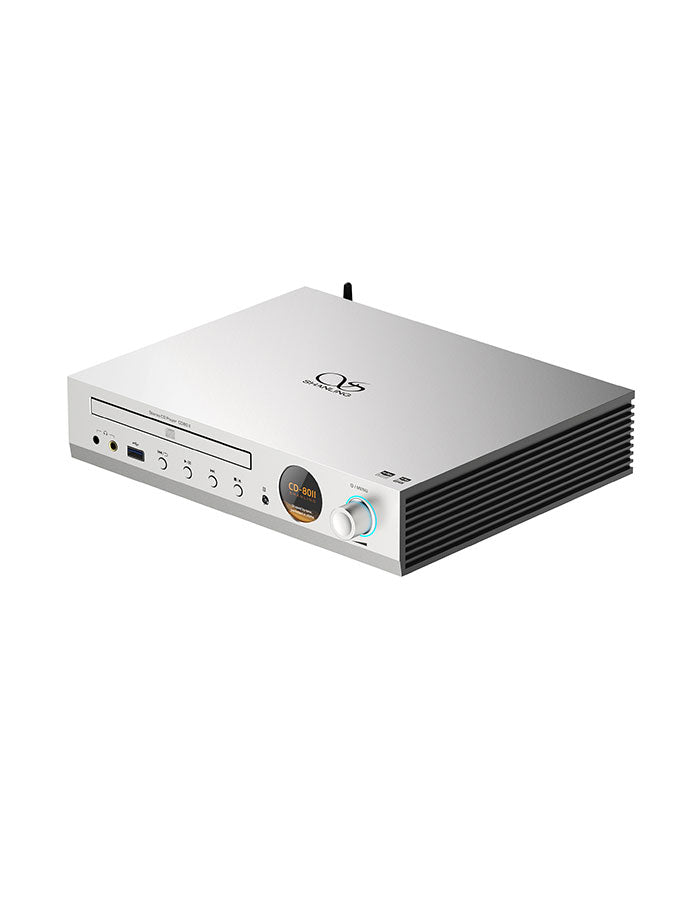

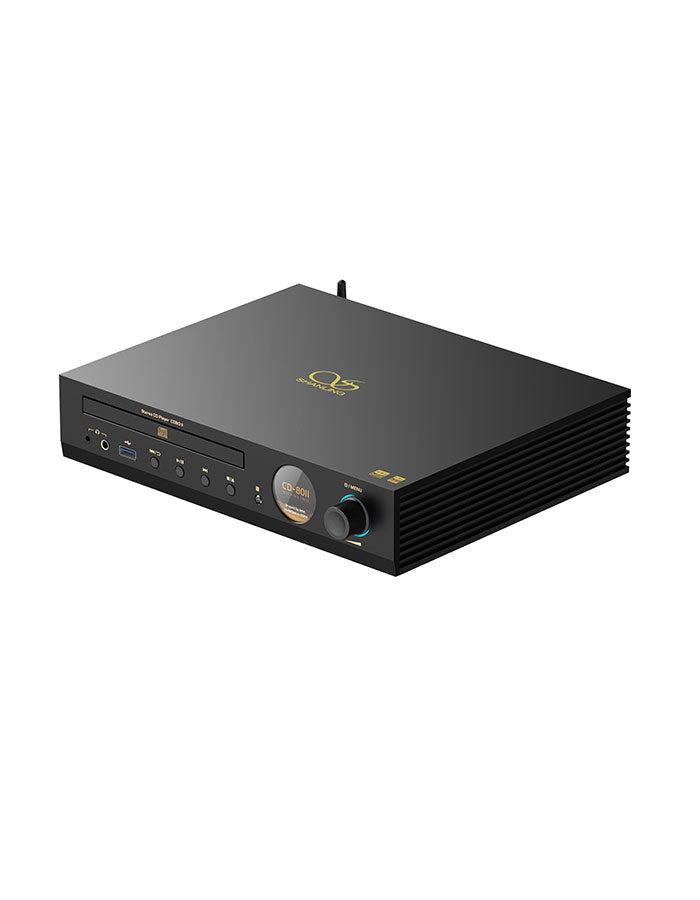

Shanling CD80II Modern & Versatile Compact CD Player

Key Features & Performance

• Dual DAC & Sound: Upgraded to a Cirrus Logic CS43198 DAC for a smoother, warmer sound compared to ESS chips, with Hi-Res Audio certification.
• Versatile Connectivity: Acts as a CD player, USB DAC (up to 384kHz/DSD256), Bluetooth receiver (LDAC, AAC, SBC), and line-level/variable output for amps.
• Powerful Headphone Amp: Features dual headphone amps with 3.5mm (215mW) and balanced 4.4mm (850mW @ 32Ω) outputs, capable of driving demanding headphones.

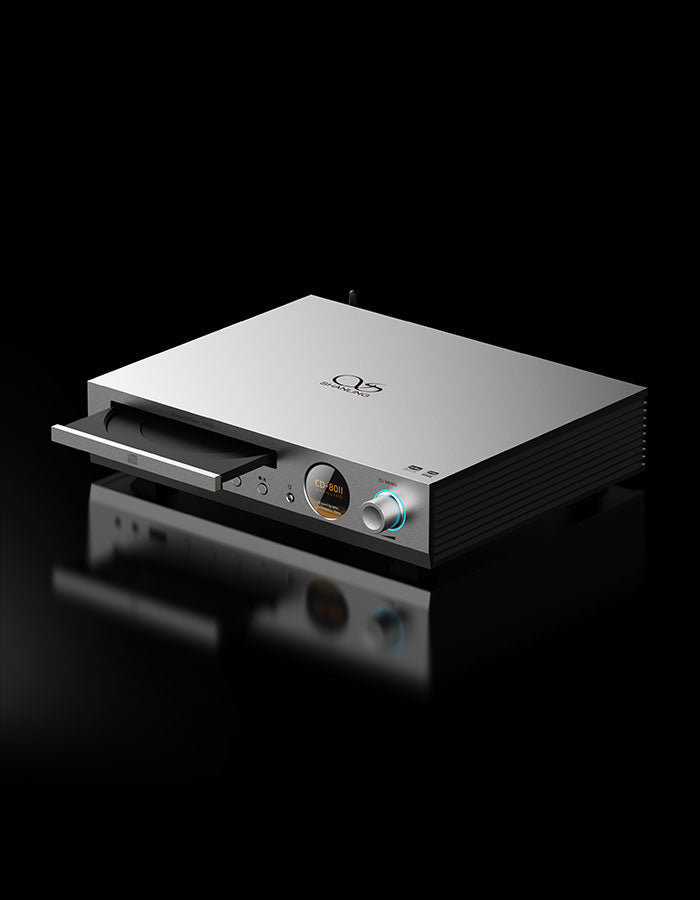

• Build & Design: Compact, unibody aluminum chassis with a tray-loading mechanism (upgraded from slot-loading), front-mounted controls, and an IR remote.
• User Experience: Offers gapless playback, works well with the Eddict Player app, and is praised for fast, lag-free operation.

• Dimensions (W x D x H): 280 x 205 x 52 mm
• Weight: 2.6 kg
• Platform: Ingenic X1000E
• DAC: Cirrus Logic CS43198
• Bluetooth Input: BT 5.0 (LDAC, AAC, SBC)
• Display: 1.28-inch (240 × 240 px) color screen

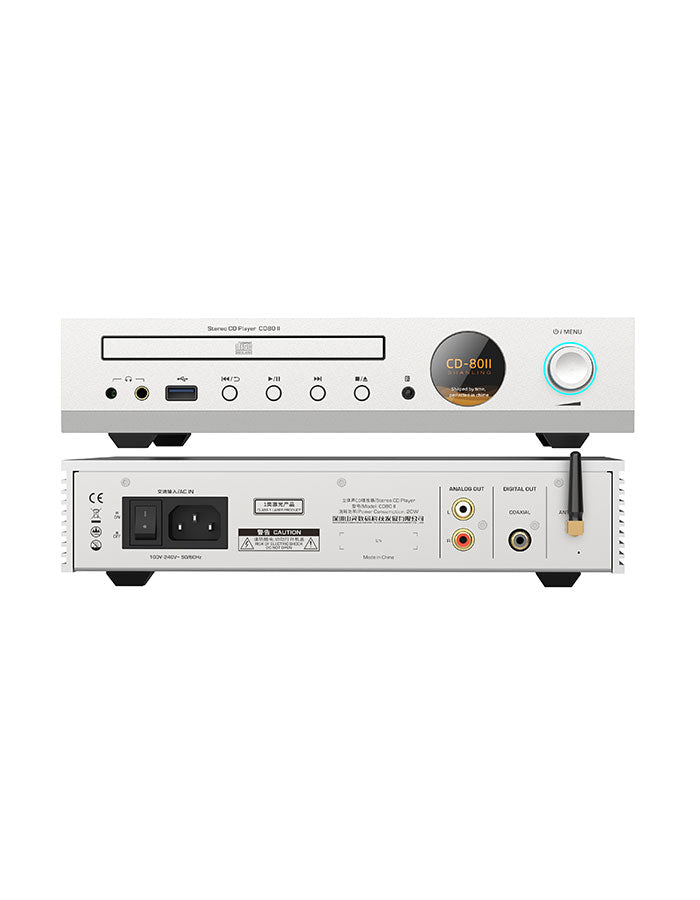

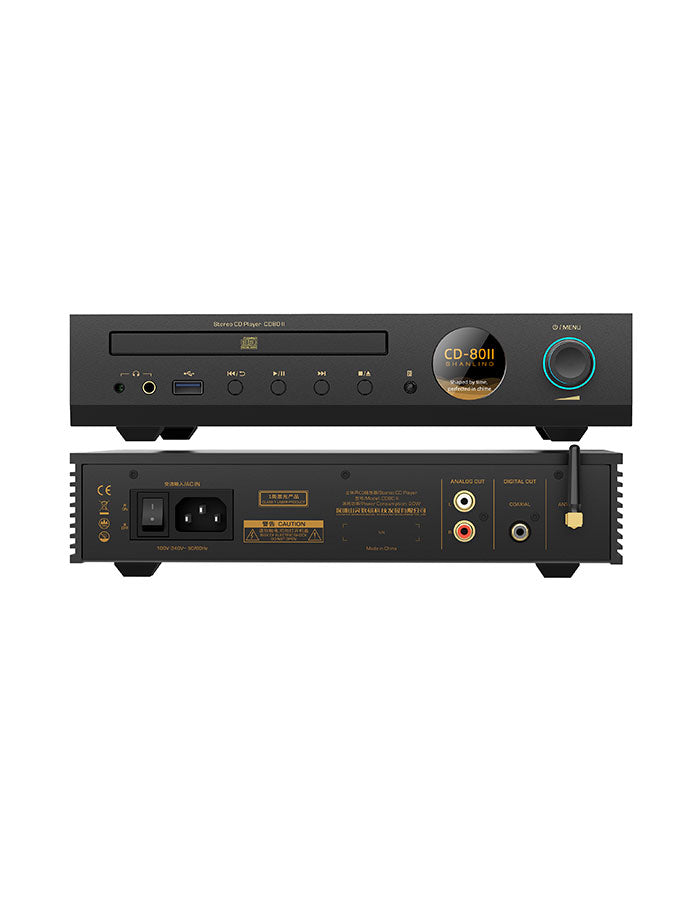

• Controls: Front-panel buttons & knobs; IR remote; Eddict Player smartphone app
• Supported Disc Types: CD / CD-RW / CD-R
• USB Hi-Res Playback: up to 384 kHz / 32-bit, DSD256
• USB File Formats: DSD, DXD, APE, FLAC, ALAC, WAV, AIFF, DTS, MP3, WMA, AAC, OGG, MP2, M4A, AC3, OPUS, TAK, CUE

RCA Line-Out

• Output Level: 2.6 Vrms
• Frequency Response: 20 Hz – 40 kHz (-0.2 dB)
• THD + N: 0.0004%
• Dynamic Range: 124 dB
• Signal-to-Noise Ratio: 124 dB
• Output Impedance: 100 Ω

Digital Coaxial (S/PDIF)

• Output: up to PCM 192 kHz / 24-bit

3.5 mm Headphone Out

• Power: 215 mW @ 32 Ω
• Frequency Response: 20 Hz – 40 kHz (-0.2 dB)
• THD + N: 0.0007%
• Channel Separation: 75 dB @ 32 Ω
• Dynamic Range: 125 dB
• Signal-to-Noise Ratio: 125 dB
• Noise Floor: 117 dB (< 1.4 µV)
• Output Impedance: 0.4 Ω

4.4 mm Balanced Headphone Out

• Power: 850 mW @ 32 Ω
• Frequency Response: 20 Hz – 40 kHz (-0.2 dB)
• THD + N: 0.0007%
• Channel Separation: 112 dB @ 32 Ω
• Dynamic Range: 127 dB
• Signal-to-Noise Ratio: 127 dB
• Noise Floor: 113 dB (< 2.2 µV)
• Output Impedance: 0.7 Ω

Inside the Box

• Quick Start Guide × 1
• Product Manual × 1
• Shanling Warranty Card × 1
• RC-3T Remote Control × 1
• Antenna × 1
• Power Cable × 1
