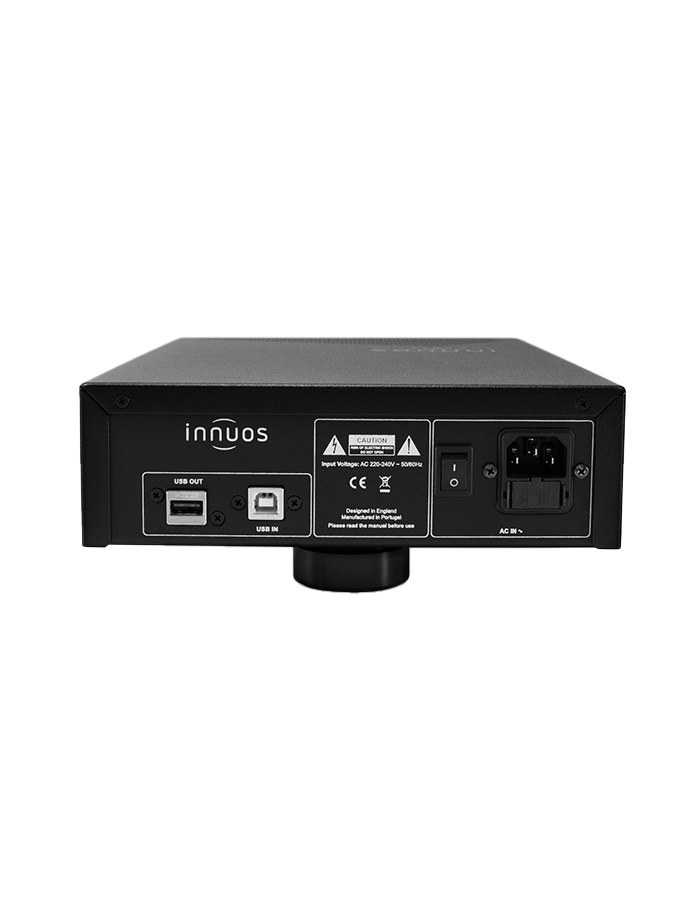

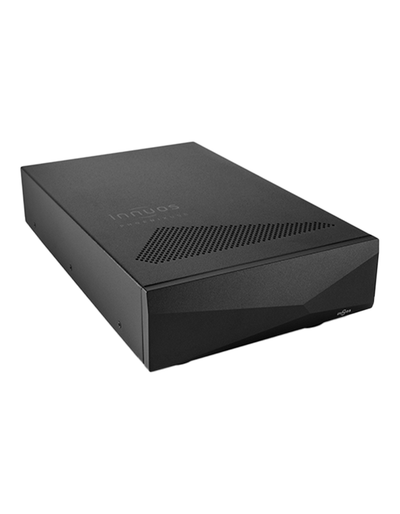

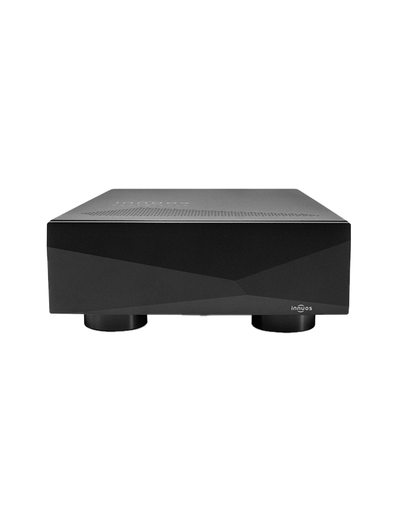

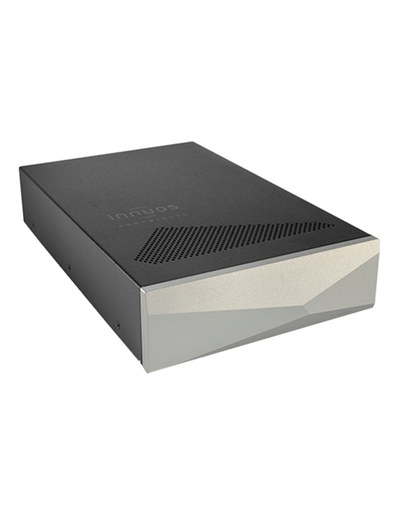

The PhoenixUSB Reclocker takes the USB signal from any source and completely regenerates it to an extremely high-precision signal to feed into your DAC, allowing it to perform at its best.
Pairs well with
In stock! Ships within 1-3 business days
30-day returns - see return policy
Contact Us For Details Or To Purchase!
An audio expert will respond to discuss your needs.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Cables: FREE 2-4-day domestic shipping.
Components: FREE domestic shipping on most of our component and speaker products. -
Customer Support
Our expert audio enthusiast will guide you through this musical journey. Rob is available to answer your questions so that you can join the countless high-end audio systems satisfied clients.
-
FAQ’s
Audio Art Cable strategically assembles cost effective Hi-fi systems with overachieving performance. The cable mission is simple, deliver factory direct to consumers at an exceptional price. Components are curated from the best manufacturers around the world with a value that cannot be surpassed.
-
Contact Us
(619) 255-6451
rob@audioartcable.com
or click the chat icon
Product details
Description
The USB chip regenerating the signal contains no switching regulators. All 3 independent voltages to the chip originate from an independent linear power supply with further regulation provided by 3 sets of LT3045 regulators. The use of a 3ppb OCXO clock running directly at 24MHz and connected via a board track just a couple of inches away from the USB chip. Therefore, no precision is lost within cables and connectors, as is the case when using an external master 10MHz clock with an additional 24MHz clock generator. Two independent Statement-level linear power supplies, one dedicated to the OCXO clock and the other used for powering the USB chip/5V USB line.
Specifications
Power
Mains Supply: 230V AC / 115V AC - 2x Internal Linear Power SupplyPower Consumption: 3W idle, 7.5W peak
Physical
Dimensions: 215mm x 342mm x 87mm (W x D x H)Weight: 5 Kg
In the box:
→ PhoenixUSB Reclocker→ Mains Cable
→ USB Cable
→ Getting Started guide
