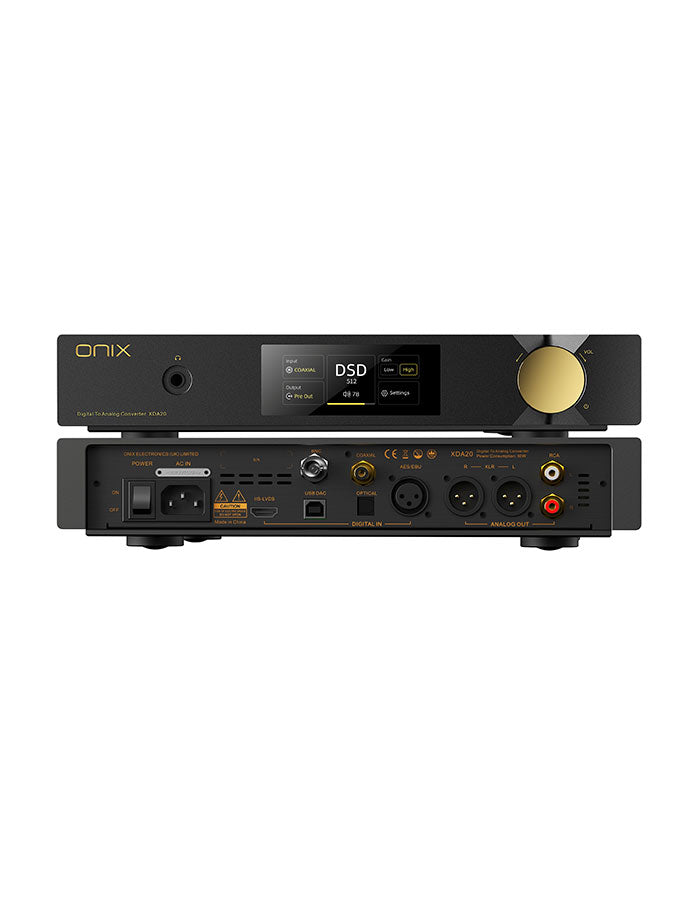

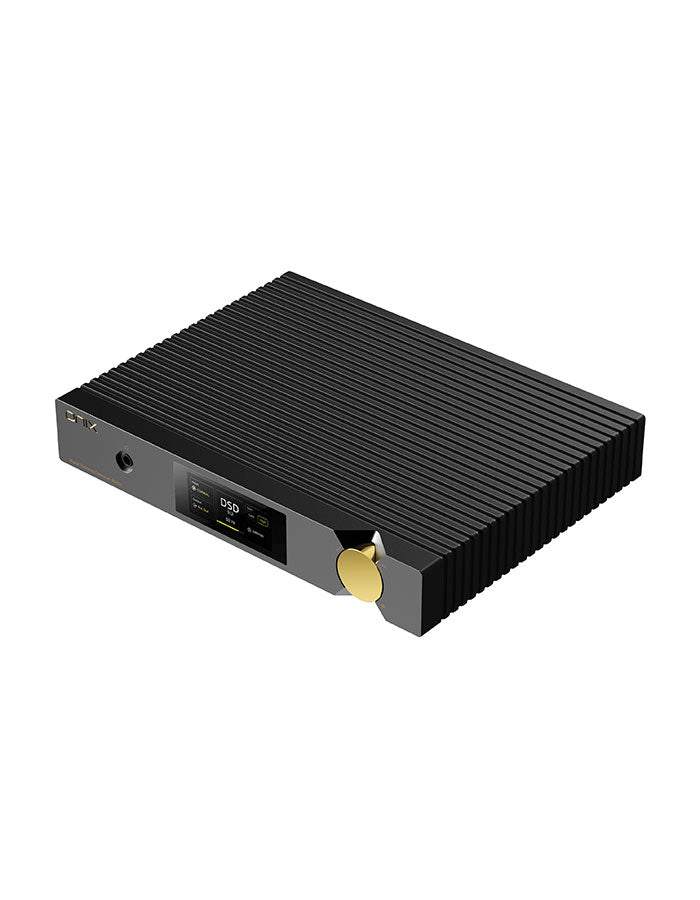

ONIX Zenith XDA20 High-End DAC / Headphone Amplifier
In stock
The ONIX Zenith XDA20 offers exceptional clarity, with an ability to reveal subtle musical details, versatile connectivity (USB, I2S, Coax, Optical), and strong headphone amplification due to it's dual ESS ES9039Pro DACs, eight OPA1611 op-amps, and dual Talema transformers for a robust power supply.
Building Up Zenith Line
XDA20 is the second device to join our Zenith line, a dedicated range of products focused on High-End desktop and speaker Hi-Fi setups. XDA20 represents the High-End DAC to be paired with the previously released XST20 SACD Transport and upcoming XMT20 Streamer.
High End DAC Assembly
The ONIX XDA20 draws inspiration from our ONIX Miracle System and features the same ESS Flagship DAC, the ES9039Pro. However, for the XDA20, the DAC circuit got upgraded to a pair of these amazing top-grade DACs and utilizes eight pieces of OPA1611 in our in-house developed I/V Conversion Circuit.
Superior Power Supply
Clear and stable power is the key to true high fidelity sound, which is why XDA20 comes with combinations of 15W 25W Talema transformers and the superb Vishay capacitors for power filtering.
Advanced I2S Input
We designed the Zenith line to create the ultimate Source – DAC pairing, utilizing the immaculate I2S connection between the devices. As such, the XDA20 performs at its best when running from the I2S input, ideally when combined with out XST20 or XMT20 transports.
But to ensure compatibility with other I2S transports on the market, we added our special FPGA-assisted I2S circuit into the XDA20, offering 10 different pin-outs for easy matching with all types of transports.
- Weight: Approximately 5.7kg
- Size (including base): 320x240x62mm
- Gain compensation: high, low
- D/A conversion chip: 2*ES9039PRO chips
- USB DAC receiver chip: XMOS XU316
- Control mode: touch screen/remote control/knob
Supported specifications
- SPDIF input: PCM: 192kHz/24bit, DSD: DOP64
- I²s input: PCM: 768kHz/32bit, DSD: DSD512
- USB DAC input: PCM: 768kHz/32bit, DSD: DSD512
RCA output
- Output level: 2.1V
- Frequency response: 20Hz-40kHz (-0.5dB)
- THD+N: 0.0003% ( A-Weight@2.1Vrms )
- Dynamic range: 123dB
- Channel separation: 122dB
- Signal to noise ratio: 123dB (A-Weight)
- Noise: 117dB
XLR output
- Output level: 4.2V
- Frequency response: 20Hz-40kHz (-0.5dB)
- THD+N: 0.0003% ( A-Weight@4.2Vrms )
- Dynamic range: 127dB
- Channel separation: 126dB
- Signal to noise ratio: 127dB (A-Weight)
- Noise: 114dB
6.35mm headphone output
- Output power:
- Low gain: 101mW@32 Ω( 1.8Vrms@32 Ω)
- High gain: 1620mW@32 Ω( 7.2Vrms@32 Ω)
- High gain: 252mW@300 Ω( 8.7Vrms@300 Ω)
- Frequency response: 20Hz-40kHz (-0.5dB)
- THD+N: 0.003% ( A-Weight@1Vrms )
- Dynamic range: 121dB
- Channel separation: 69dB
- Signal to noise ratio: 120dB (A-Weight high gain)
- 117dB (A-Weight low gain)
- Noise: 112dB (low gain)
- Output impedance: 3.3 Ω
