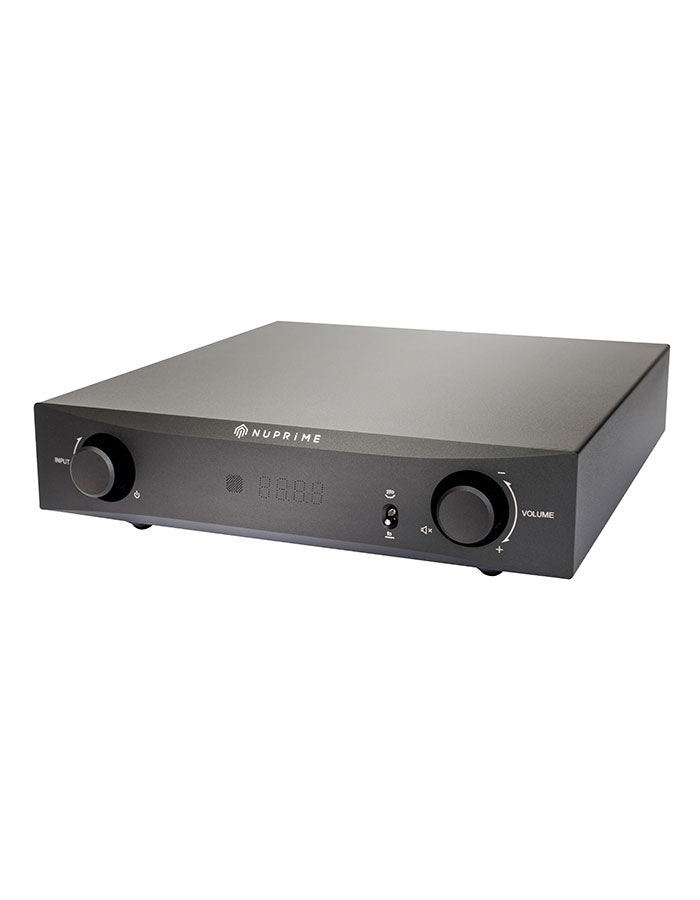

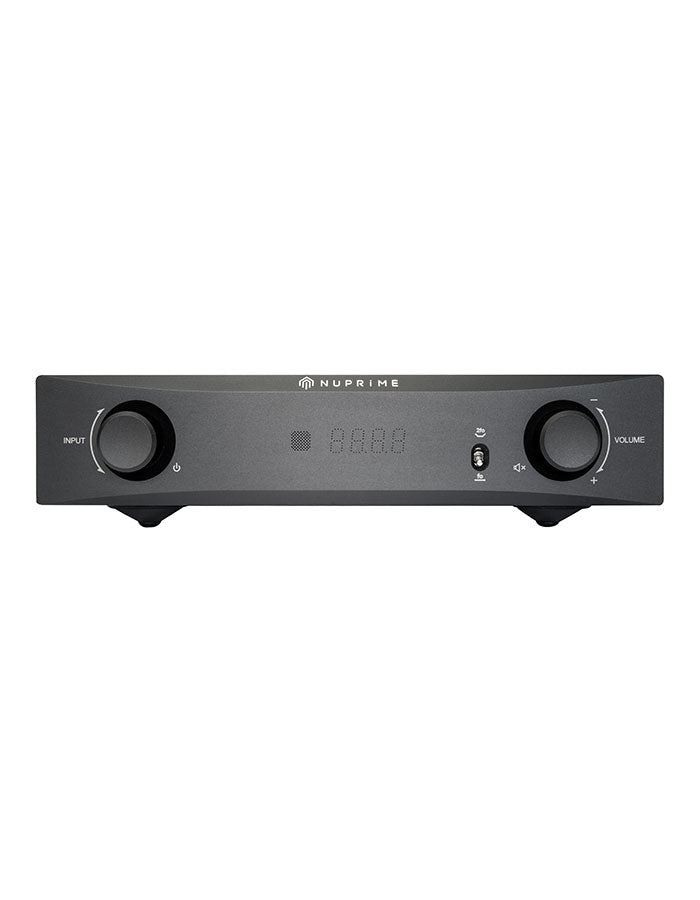

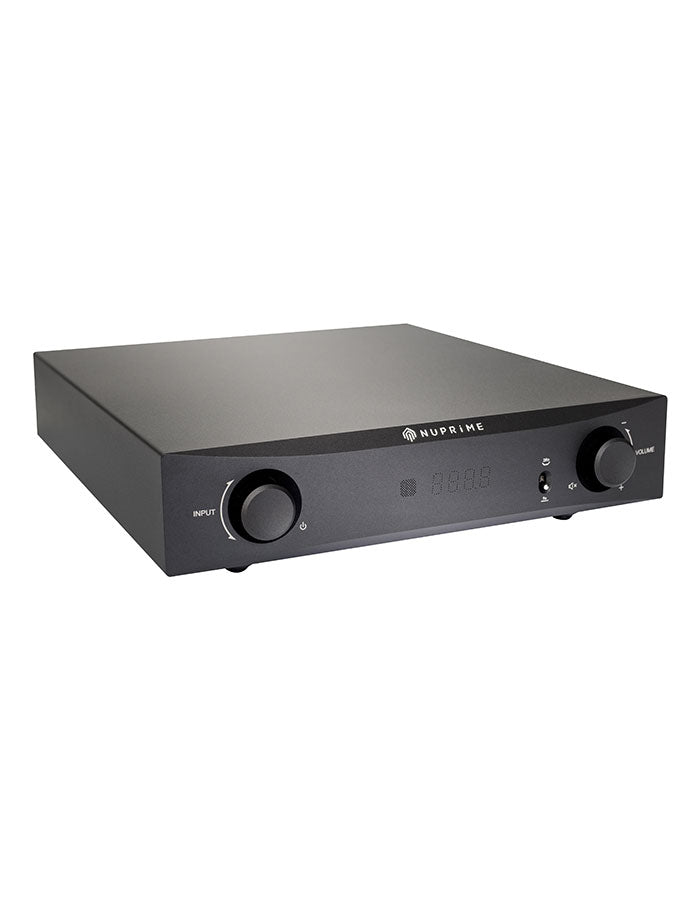

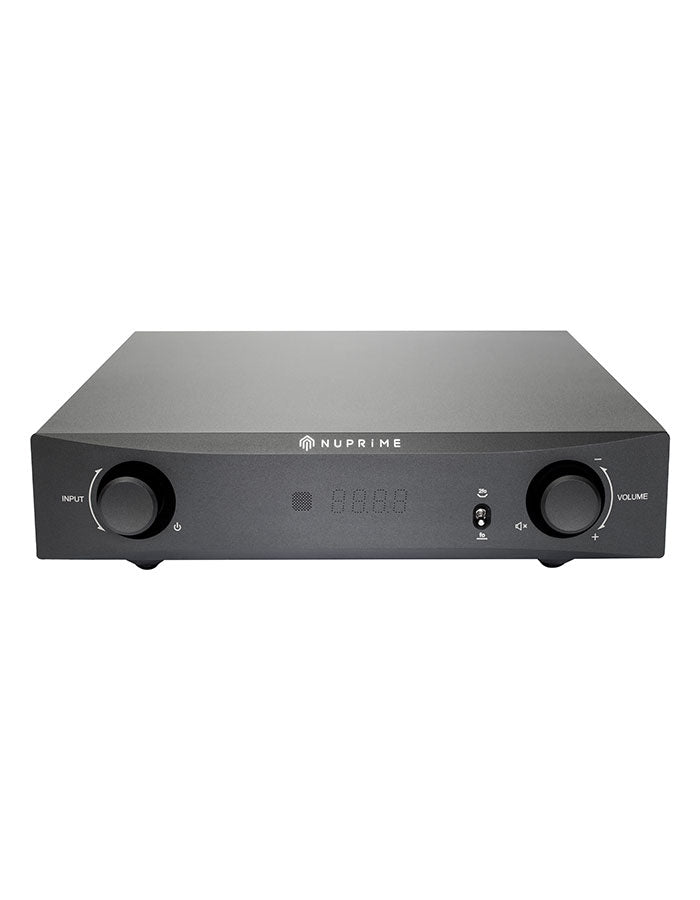

NuPrime IA-9X Integrated Amplifier
In stock
NuPrime’s IA-9X is an integrated amplifier designed to work well in an analogue audio system. It combines two cutting-edge technologies – NuPrime ODC and Harmonic Generation circuits – to offer adjustable sonic characteristics. This makes it perfect for either studio monitoring or relaxing music listening.
The IA-9X offers the unique ability to customize its sound characteristics to suit your musical preferences.
NuPrime Only Distortion Cancellation (ODC) circuit for ultra-low distortion for neutral and detailed sound.
Harmonic generation circuit (utilizing Class A transistors) for slightly warm, end-rhyme, and rich sound similar to that of a vacuum tube amplifier.
A toggle switch that allows you to select only ODC circuit or ODC with natural harmonics. In Ultra- Low Distortion mode, it is typically suitable for studio monitoring or music with many dynamics, such as Rock & Roll. Alternatively, you can increase natural harmonics when relaxing and listening to more vocal or classical music.
The ODC class D PWM module include two NuPrime’s new ultra-low distortion amplifier modules (THD=0.0014%) composed of MUSES8820 op-amp in a new delta sigma circuit. It has excellent ultra-low distortion and high driving force characteristics.
NuPrime IA-9X pre-amp includes a MM phono input. The input and output use a special audio Relay Switch, which has the lowest interference and highly accurate transmission, to switch the source.
The phono input has a variety of settings for input resistors and capacitors to match different MM cartridges. PRA-9X phono amplifier is a 2-stage RIAA amplifier that utilises NJR MUSES8820 audio quality op-amp to provide an accurate RIAA curve and low distortion at high amplification and performance.
Features
LP vinyl RIAA phono amplifier circuit, with adjustable input capacitance and impedance.
1 set of Phono input, 1 set of XL R input, 2 sets of RCA input.
Digital control (with 99 segments) of analog volume circuit. Automatic memory when powered off.
Input and output Trigger for power on/off control of multiple devices.

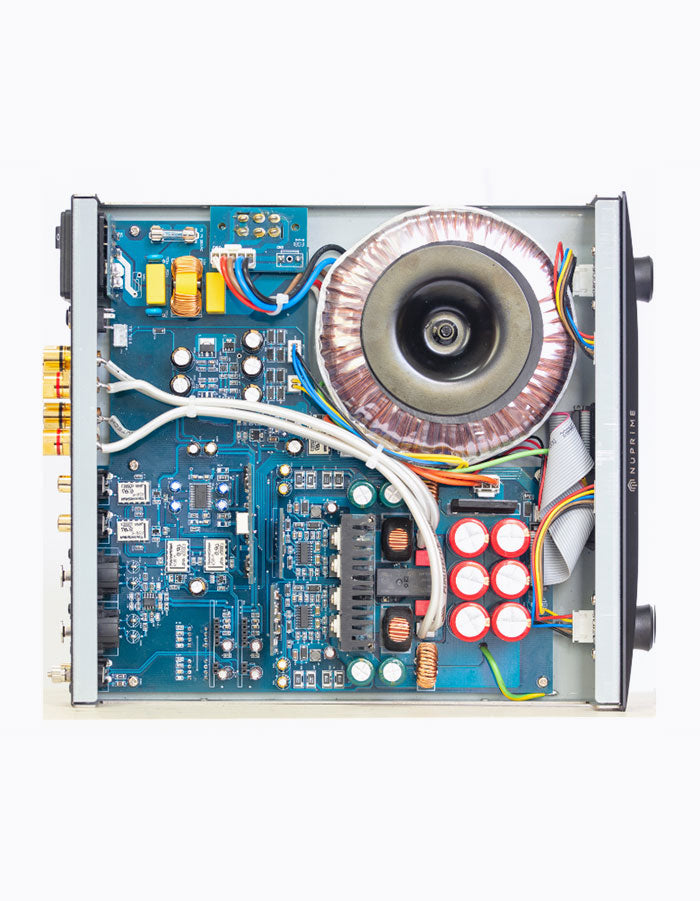

Nuprime specially customized audio-specific capacitors, 13200uf and 25A high-current bridge rectifiers, providing fast and dynamic speaker driving force.
Specifications:
Power Output (RMS): 90W @ 8 Ohms, 145W @ 4 Ohms
Power Output (peak): 100W @ 8 Ohms, 160W @ 4 Ohms

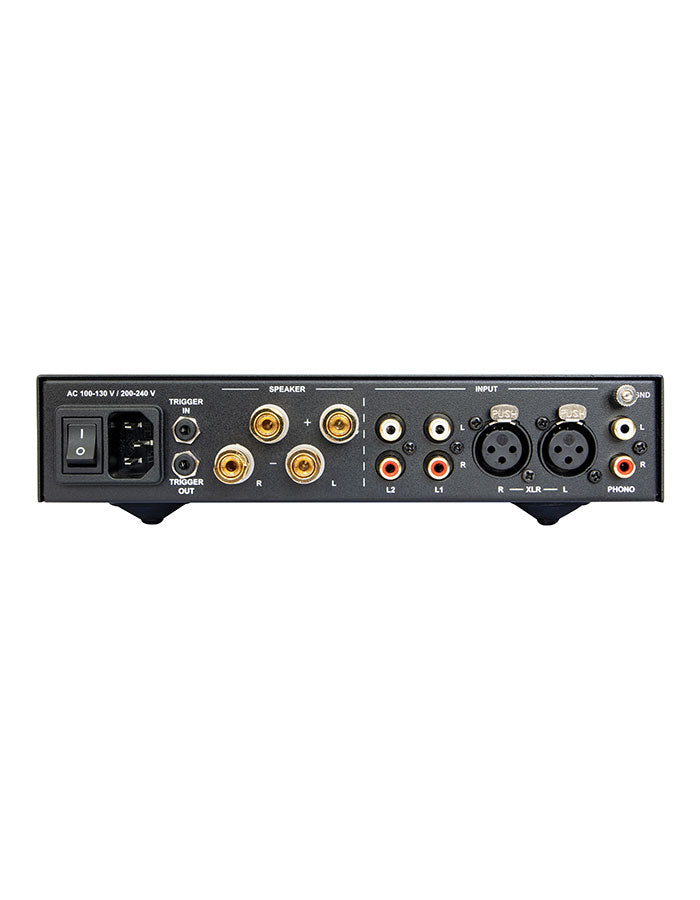

Inputs:
1x Phono Stage
2x Analog Stereo RCA
1x Analog Stereo XLR
1x Trigger in: DC12V in (3- pin 3.5mm phone jack)
Outputs:
2 x Speaker Out
1 x Trigger Out: DC12V Out (3-pin 3.5mm phone jack)
Gain: 24.61 dB
Sensitivity (to rated power): 1.5Vrms
Input Impedance: 47K Ohms
Output Impedance: 20m Ohm
IA-9X WATT / THD / S/N (typcial) : @5W (0.0014%, 95dB) , @50W (0.003%, 105dB)
Frequency Response: 10Hz to 50kHz (-3dB)
Standby Power : 4.6W @ 115V outlet, 3.3W @ 230V outlet
Idle Power : 13.5W @ 115V outlet, 11.5W @ 230V outlet
Phono Stage:
Input resistance: 32K ohm / 47K ohm / 100K ohm
Input capacitance: 100 pF / 220 pF / 320 pF
MM Input Sensitivity: 4.0 mV @ 1KHz
GAIN: MM input to L INE output (Vol./Max.) => 65dB @ 1K Hz
Dimensions and Weight:
Worldwide AC voltage: (115VAC / 230VAC) with Voltage Select Switch
AC Fuse: Slow blow, 5A, 250VAC
Color: Black or Silver
Product Dimension: 60 x 235 x 281 mm (H x W x D)
Product Weight: 3.8kg
