1MΩ input impendance, high power, and full-balanced design delivering the most transparent and detailed signal with a wide frequency bandwidth and rich harmonics.
The AMG HPA is the world’s first headphone amplifier that utilizes the 1MΩ input impedance design, delivering the most transparent and detailed signal from the source to the rest of the audio chain.With the intimate listening experience that headphones provide, the stark difference in the level of performance easily demonstrates the advantage of the AMG 1MΩ design.
Pairs well with
In stock! Ships within 1-3 business days
30-day returns - see return policy
NuPrime AMG HPA Headphone Amplifier
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Cables: FREE 2-4-day domestic shipping.
Components: FREE domestic shipping on most of our component and speaker products. -
Customer Support
Our expert audio enthusiast will guide you through this musical journey. Rob is available to answer your questions so that you can join the countless high-end audio systems satisfied clients.
-
FAQ’s
Audio Art Cable strategically assembles cost effective Hi-fi systems with overachieving performance. The cable mission is simple, deliver factory direct to consumers at an exceptional price. Components are curated from the best manufacturers around the world with a value that cannot be surpassed.
-
Contact Us
(619) 255-6451
rob@audioartcable.com
or click the chat icon
Product details
Description
The input stage utilizes Ultra-High Bandwidth (communications applications), Low-Noise JFET for the 1MΩ input impedance circuitry. Amplification circuitry uses a Single-Ended, Non-Negative Feedback Class A module for a wide frequency bandwidth and rich second order harmonics.

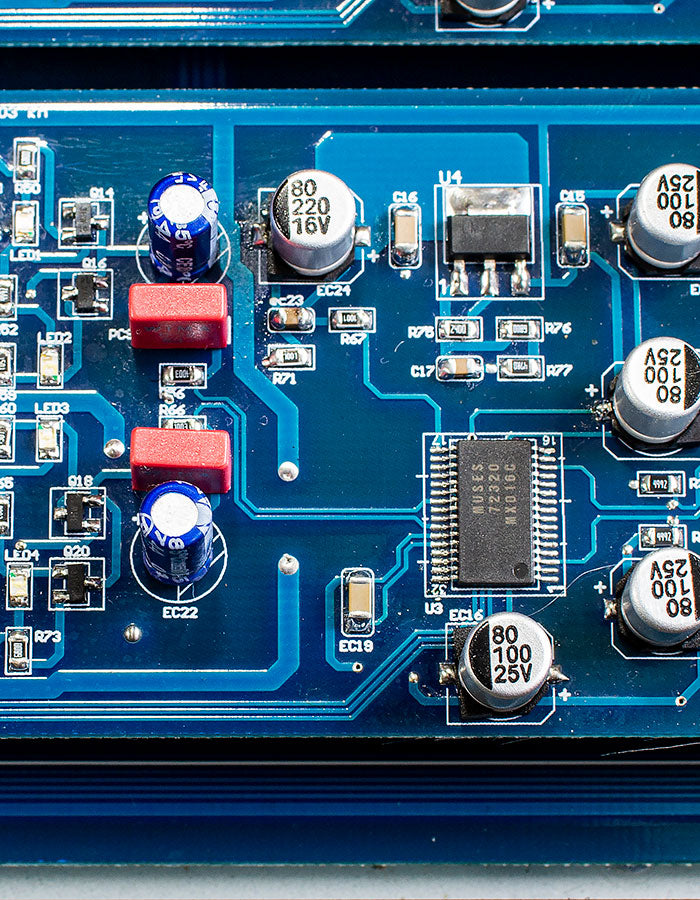

Fully balanced amplification that consists of independent circuitries for input, volume, amplification and power output stages. The volume control uses two MUSES72320 to achieve a fully balanced 100 levels (0-99) of volume adjustments. This is the best volume control we’ve put into a product and likely the best for any headphone amplifier.

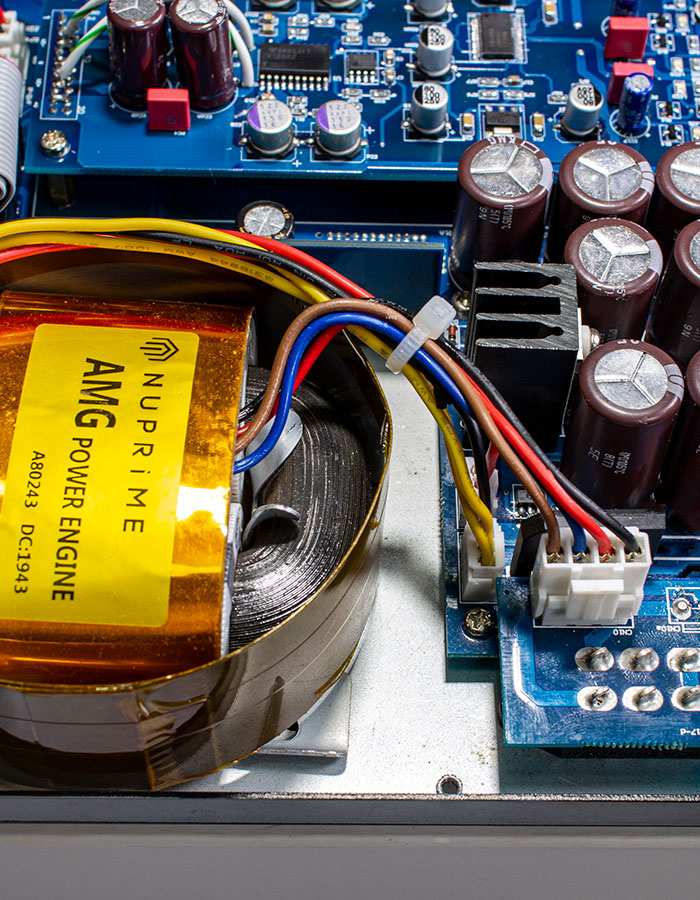

A specially customized R-Core transformer and 26000uF of filtering capacitors used in the power supply ensures that the circuitries are provided with fast and stable power.

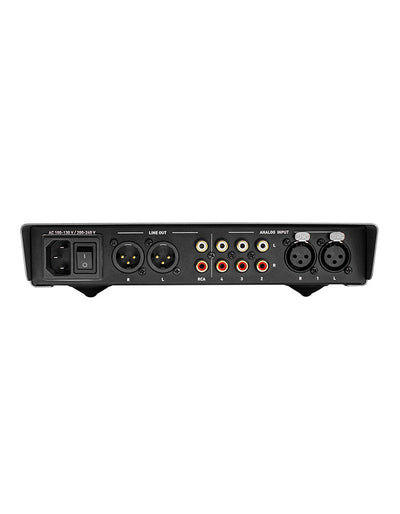

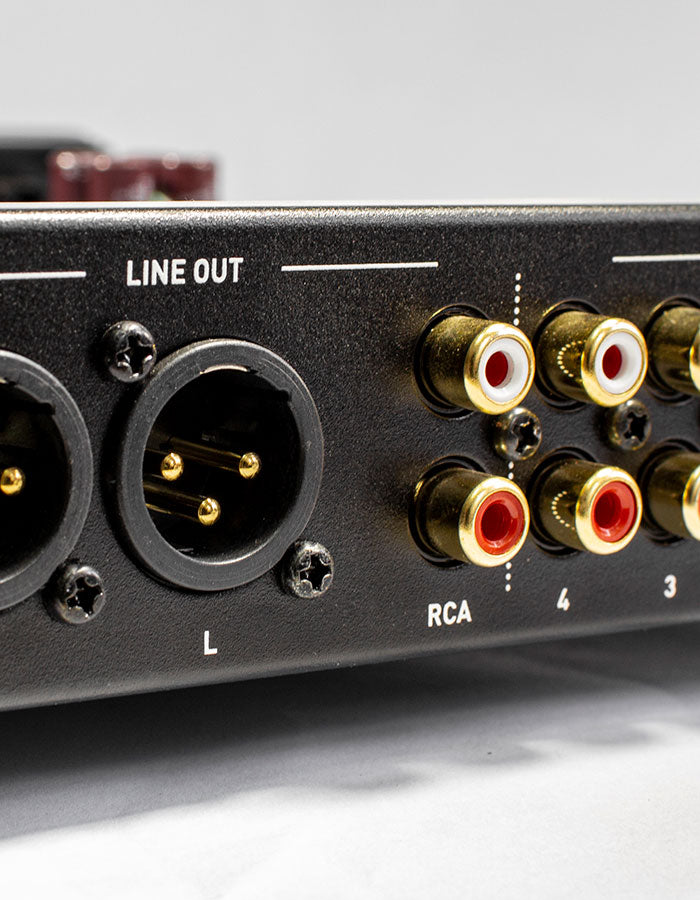

Besides having the headphone outputs, the AMG HPA also has 2 sets (XLR and RCA) of analogue outputs where it could be used as a reference level pre-amp with 1MΩ inputs.
Specifications
Inputs:
1 x Balance XLR
3 x Analog Stereo RCA
Outputs:
1 x 6.3mm Headphone Out
1 x 4.4mm Balance Headphone Out
1 x 4 Pin XLR Balance headphones out
1 x Stereo RCA Out
1 x Balance XLR Out
Input Impedance:
Balanced In: 1M Ohm @ 10 Hz ~ 200 kHz
Line In: 1M Ohm @ 10 Hz ~ 200K Hz
6.3mm Headphone Output Power: Max 2000mW @ 32 ohm / 150mW @ 600 ohm
Balanced Headphone Output Power: Max 3500mW @ 32 ohm / 300mW @ 600 ohm
Capable of driving headphone with impedance as low as 8 ohm.
Dynamic Range > 80 dB
THD+N: 0.05 %
S/N ratio > 100 dB
Frequency Response: 20 Hz to 200KHz (-3dB)
Crosstalk Attenuation: min. 80 dB @ 1 kHz
Worldwide AC Voltage: 90VAC~130VAC / 210VAC~ 250VAC with Voltage Select Switch
AC Fuse: Slow-blow, T2A, 250VAC
Color: Grey
Product Dimension: 55 x 235 x 300 mm (H x W x D)
Product Weight: 2.5kg
