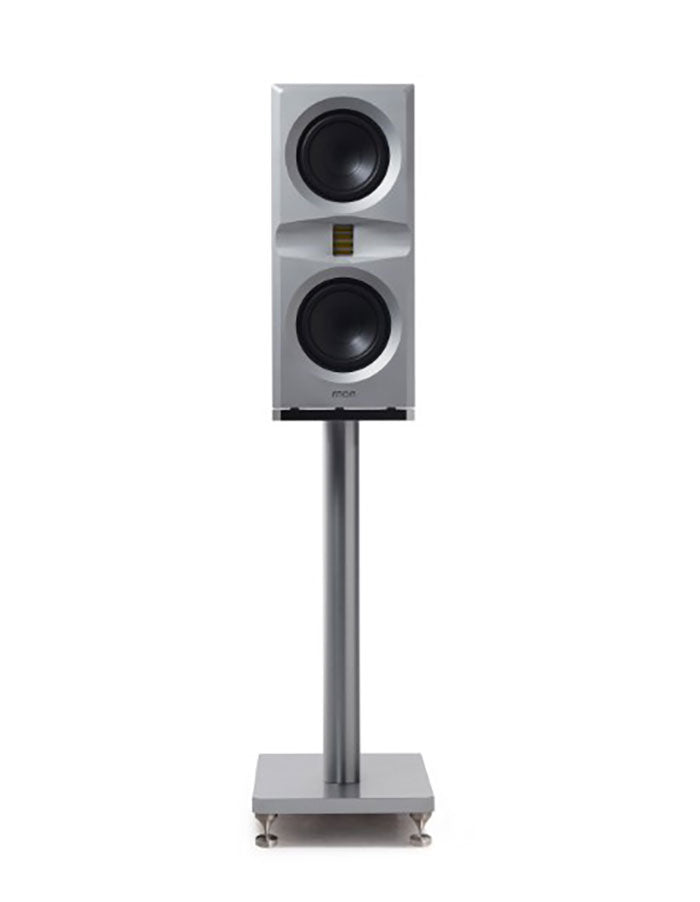

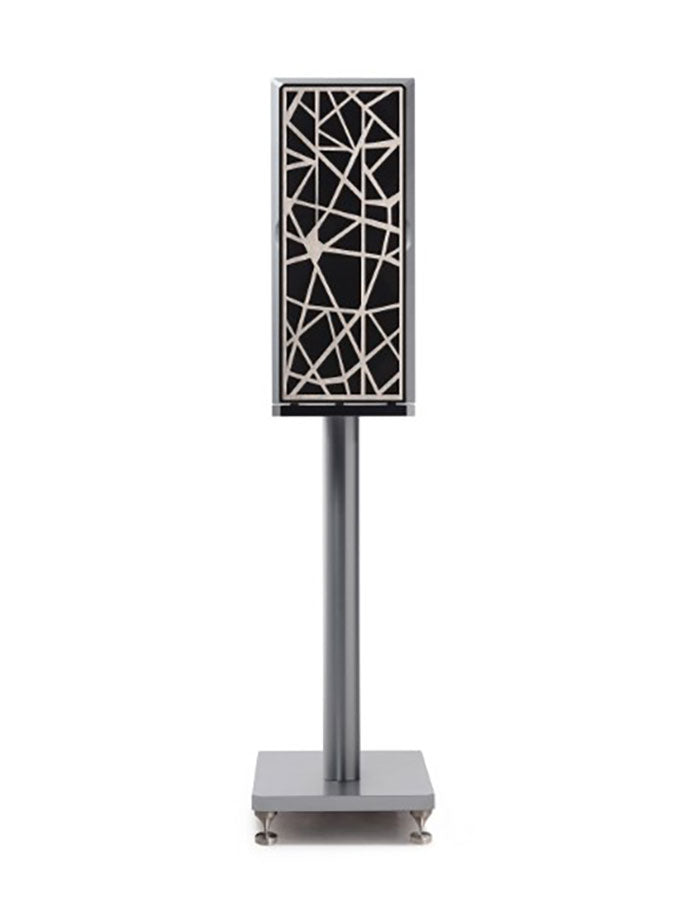

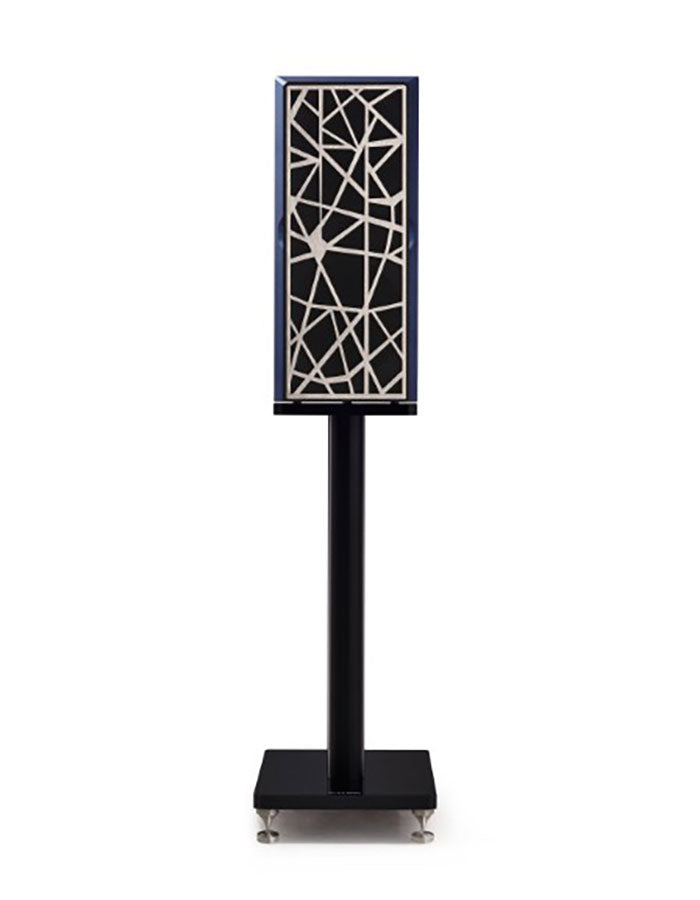

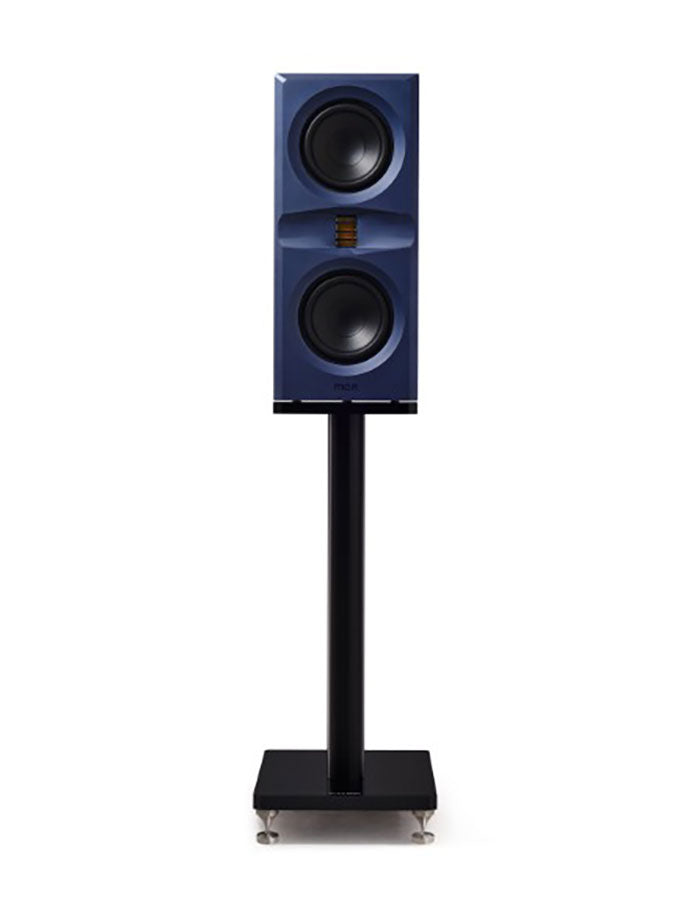

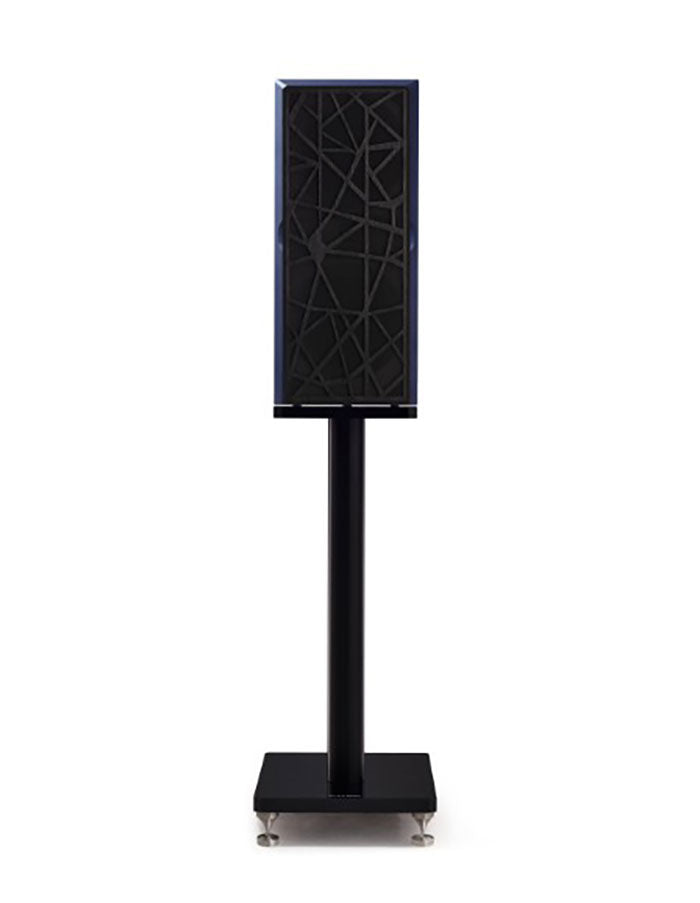

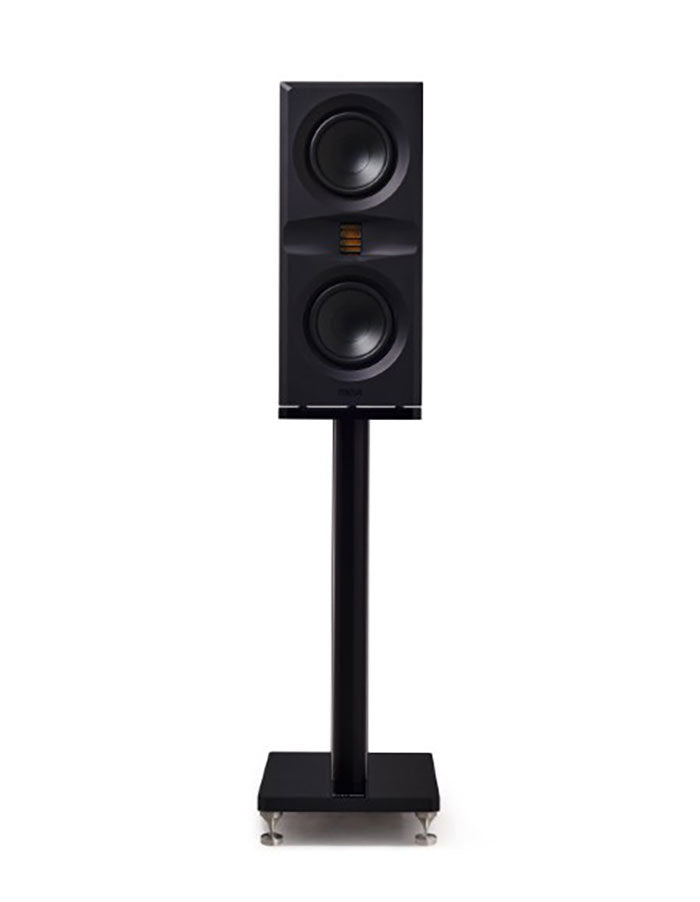

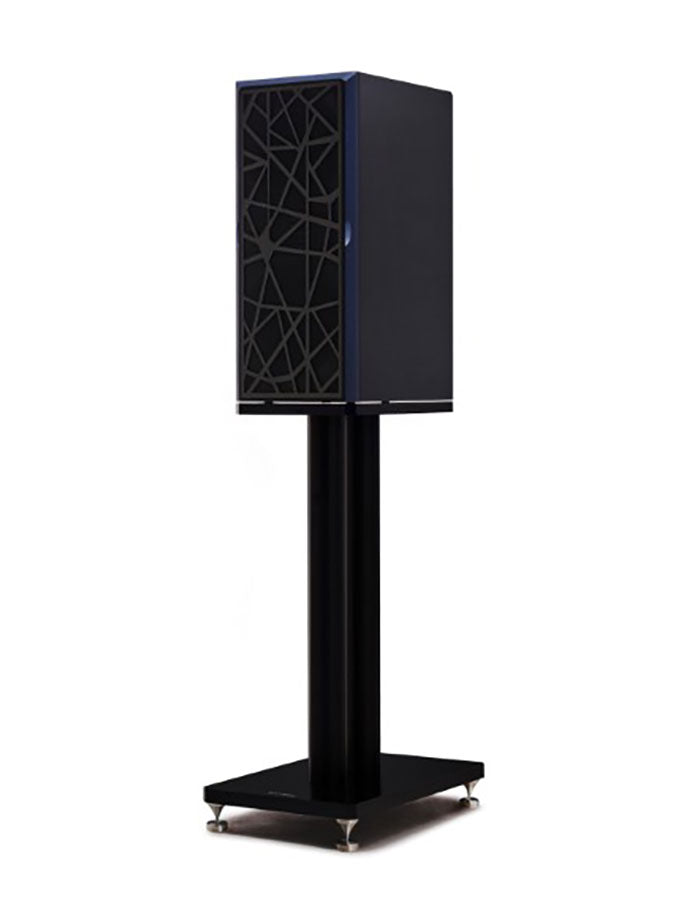

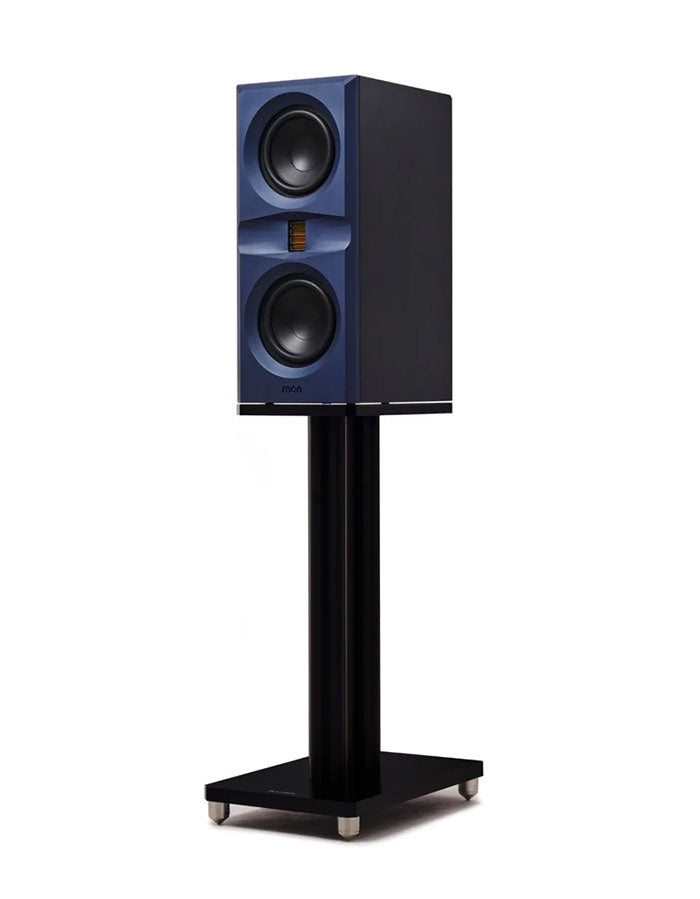

Mon Acoustic Platimon Virtual Coaxial ONE MKII

Vertically Coherent Acoustic Design

The PlatiMon VC-1 Speakers combine a precision stand-mounted design into one vertically coherent acoustic structure, with a proprietary stand, designed to optomise every element of performance.

This architecture ensures:

• Seamless frequency integration
• Precise phase alignment
• Controlled dispersion
• Natural tonal continuity from a bass foundation extending to 38 Hz, to upper frequency harmonics

Unlike conventional stand mounted speakers that rely on stacked drivers within a single enclosure, the Virtual Coaxial architecture of VC-1 minimizes cabinet-induced coloration and preserves transient speed throughout the full range.

The result is a soundstage that is expansive, stable, and holographically focused.

Refined Micro-Texture and Musical Density

The MK2 revision introduces newly engineered woofer and tweeter systems that dramatically enhance sonic refinement.

The most significant advancement lies in the texture of sound itself:

• Micro-dynamics are more articulate
• Tonal surfaces feel more tactile and layered
• Transients are cleaner yet more organic
• Background silence appears deeper and more resolved

Music is no longer simply reproduced — it is sculpted with finer particulate precision.

Extended High-Frequency Transparency — 35 kHz

The newly developed black-diaphragm AMT tweeter extends usable response from 23 kHz to 35 kHz.

This expanded extension enhances:

• Harmonic openness
• Air and spatial depth
• Cymbal decay realism
• Vocal breath detail
• Upper-octave smoothness without glare

The MK2 achieves a level of clarity and extension approaching that associated with diamond or beryllium tweeters, while maintaining the speed and efficiency advantages of AMT technology.

Controlled Bass Foundation — 38 Hz

The integrated low-frequency system has been re-optimized for:

• Deeper extension to 38 Hz
• Improved impedance stability
• Greater transient coherence
• Tighter bass articulation

The MK2 presents bass not as exaggerated weight, but as controlled authority — maintaining clarity even in complex orchestral or dynamic passages.

Electrical and Acoustic Stability

With a nominal 4-ohm load and 90 dB sensitivity, the MK2 offers improved amplifier friendliness compared to the previous version.

Impedance behavior has been refined to ensure smoother load characteristics across the crossover regions, resulting in more consistent dynamic control.

The MK2 Evolution

The MK2 is not a re-voiced speaker. It is a more refined, more linear, and more transparent expression of the original design philosophy.

Where the original emphasized speed and clarity, the MK2 adds sophistication — elevating resolution, harmonic density, and spatial realism.

PlatiMon VC One – Key Specifications

• Type: Passive 2-way MTM (Mid–Tweeter–Mid) bookshelf module
• Drivers: 2 × 5.25″ (133 mm) midrange drivers, 1 × AMT high-frequency tweeter
• Frequency Range: 38 Hz – 35 kHz (±3 dB)
• Crossover Frequency: ≈ 3.1 kHz
• Sensitivity: 90 dB (2.83 V / 1 m)
• Nominal Impedance: 4 Ω
• Recommended Amplifier Power: 40 – 250 W
• Cabinet Construction: CNC-milled aluminum enclosure with internal bracing and resonance control
• Finish Options: Premium lacquer or custom anodized colors (custom colors non-returnable)
• Dimensions (W×H×D): Approx. 230 × 260 × 380 mm (9.0 × 10.2 × 15 in.)
• Weight: ≈ 14 kg (31 lbs) per speaker
• Highlights: Exceptional imaging and tonal purity / AMT tweeter delivers open, natural highs / Designed for standalone or paired use with VC Two
