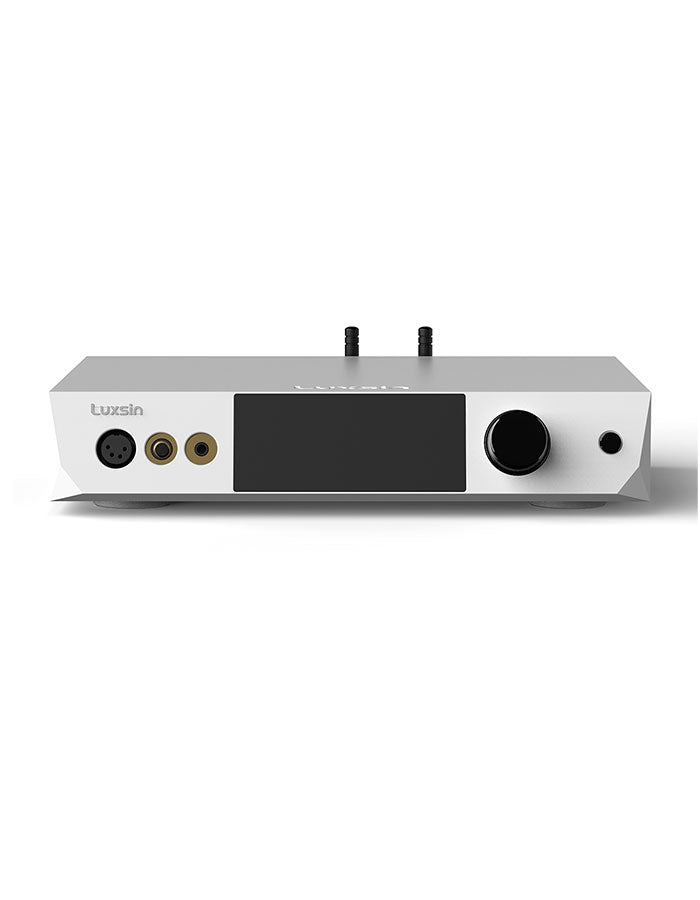

Luxsin Audio Flagship Headphone DAC/AMP X9

HP-EQ System

The X9’s unique HP-EQ technology applies real-time hardware-level EQ adjustments based on each headphone’s frequency response. This enables a sound signature closely aligned with the ideal Harman curve, providing an audio experience that resonates with a wide range of listener preferences. It also supports custom EQ profiles with one-click switching, backed by a growing database of over 2500 headphone models.

Precision Perfected

Engineered with a fully balanced R2R volume control circuit composed of high-precision components, it enables left-right channel balance adjustments with exceptional accuracy of 0.1dB, ensuring precise and distortion-free audio performance.

Impedance Auto-Detect System

Luxsin’s self-developed impedance detection system automatically measures the impedance of connected headphones via the 6.35mm or 4.4mm ports and intelligently recommends the most suitable output gain setting. Utilizing advanced bypass detection technology, this system ensures precise impedance measurement with zero impact on sound quality.

True Flagship

With an ultra-low ripple of just 40nV, the motherboard features a star-shaped voltage distribution circuit that cleanly separates digital and analog power paths. The AK4499EX DAC is stabilized by an OPA1612 op-amp, providing an ultra-stable reference voltage for highly accurate signal processing. With a THD+N of -120dB, the system delivers outstanding clarity, resolution, and dynamic range.

Crossfeed & Adjustable Soundstage

The X9 features advanced digital crossfeed for a natural, speaker-like sound, reducing fatigue during long sessions. Users can also adjust soundstage depth and width, with both features implemented digitally to ensure precise control without the distortion or coloration typical of analog solutions.

4.0-inch Full-Color Touchscreen

Featuring a 4.0-inch full-color touchscreen, it offers a vibrant, high-definition display for an intuitive and visually engaging user experience. The display can be turned off for a completely immersive, blackout listening experience, while the device automatically enters standby mode when no signal is detected, ensuring efficiency and convenience.

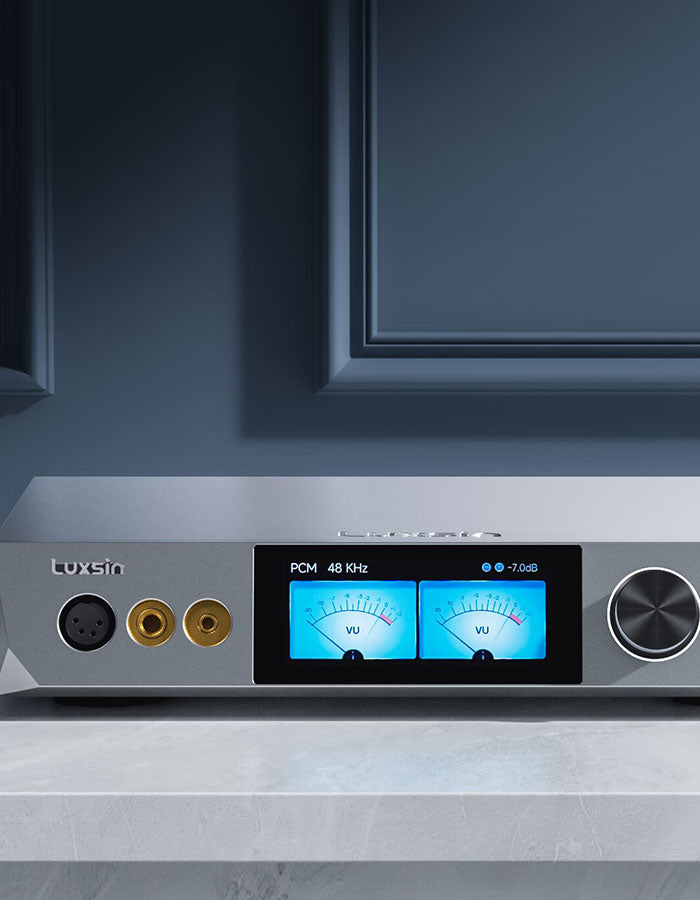

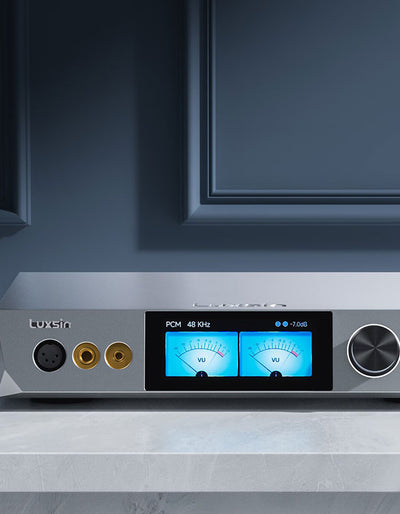

Visible Rhythm

The X9 features a dynamic VU meter that visually captures every subtle fluctuation in the audio, providing a real-time graphical representation of the sound. With multiple VU meter styles to choose from, users can personalize their visual experience while enjoying the music.

True Full Balance

Every stage, from signal input decoding and AK4499EX DAC to OP1612 IV conversion, LPF filtering, R2R volume control, dynamic feedback, and the 6120A2 headphone amplifier, is powered by a fully differential balanced circuit. This design ensures uncompromising audio performance, delivering unparalleled sound clarity, precision, and depth.

Smart Control

The X9 runs on an advanced automotive-grade RTOS, ensuring stable and efficient control of all I/O interfaces. It supports both infrared remote and wireless control via phone or computer, with OTA updates for easy firmware upgrades and ongoing performance improvements.

Dynamic Negative Feedback

Luxsin Dynamic Negative Feedback (DNF) technology, utilizing the OPA1612 + TPA6120A2 combination, significantly reduces harmonic and intermodulation distortion, ensuring a cleaner, more transparent sound with minimal coloration while accurately reproducing every sonic detail. This advanced design enhances tonal purity and dynamic expression, delivering a refined and immersive listening experience.

Audiophile-grade Components

To achieve ultimate sound quality, every component has been meticulously chosen. This includes premium red WIMA capacitors, gold-plated aluminum electrolytic capacitors, high-grade green non-polarized capacitors, numerous 0.1% high-precision low-temperature drift resistors, and TI BB’s OPA1612 op-amps.

OCC Cables

Ohno Continuous Cast (OCC) silver-plated cables.

Clock

Ultra high precision femtosecond clock.

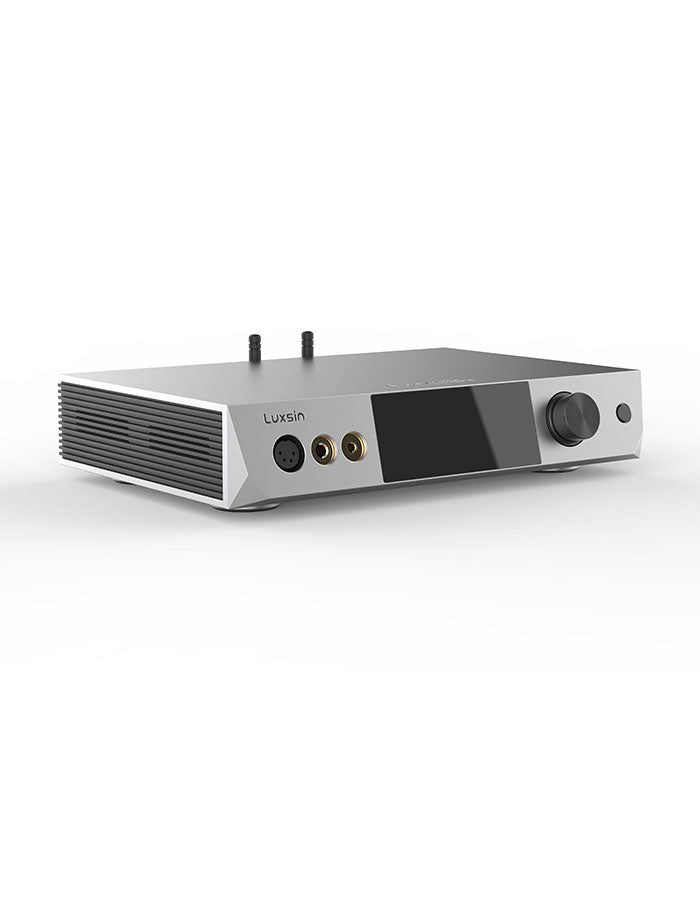

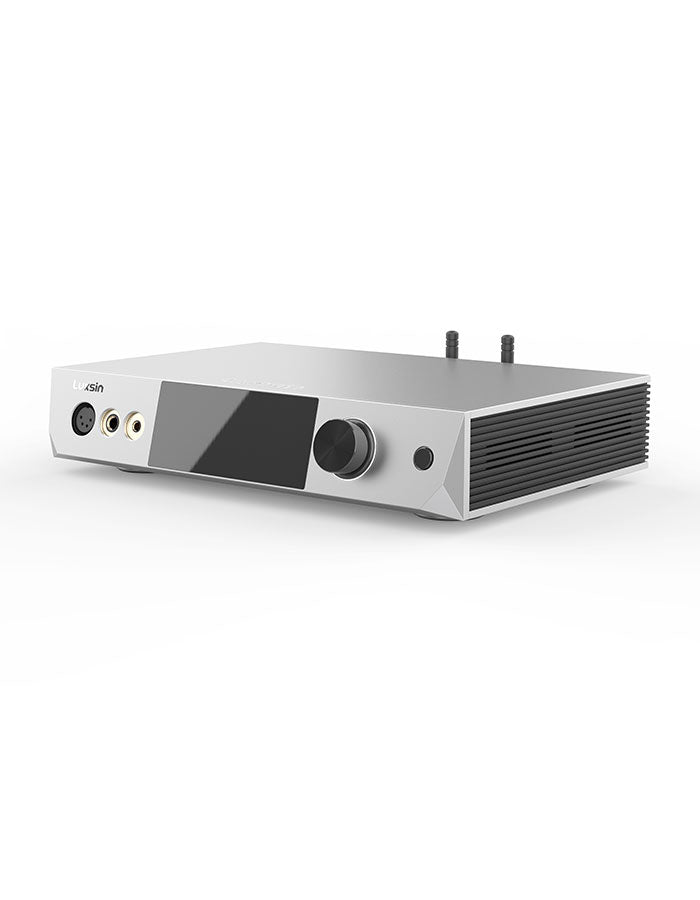

Diamond-cut Design

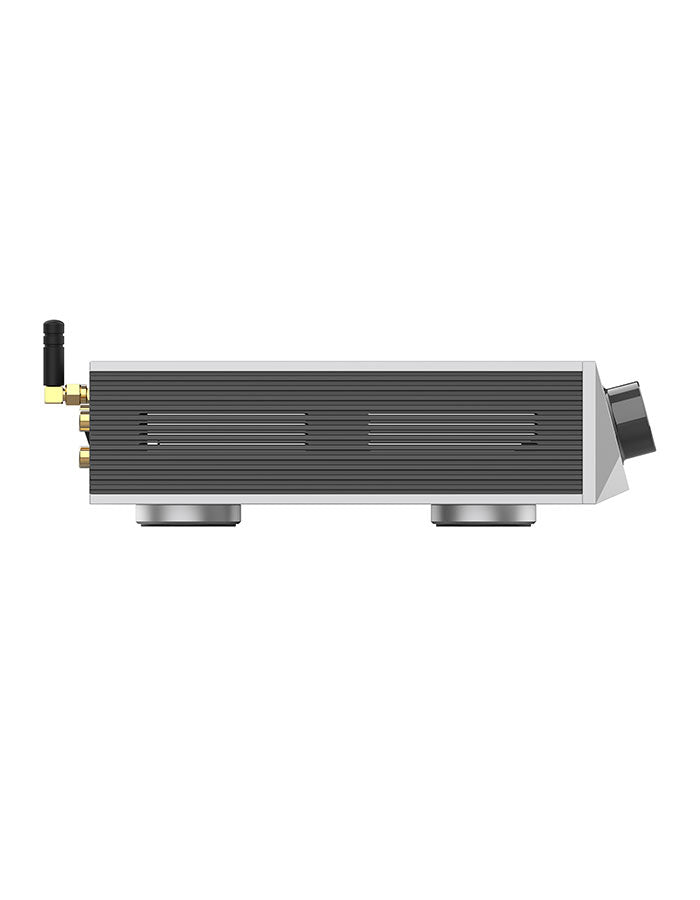

The diamond-cut bevel design of the front panel, set at a 15° incline, not only enhances its aesthetic appeal but also improves ergonomic touch control. The full CNC-machined aluminum chassis ensures excellent heat dissipation, durability, and a sleek, elegant appearance.

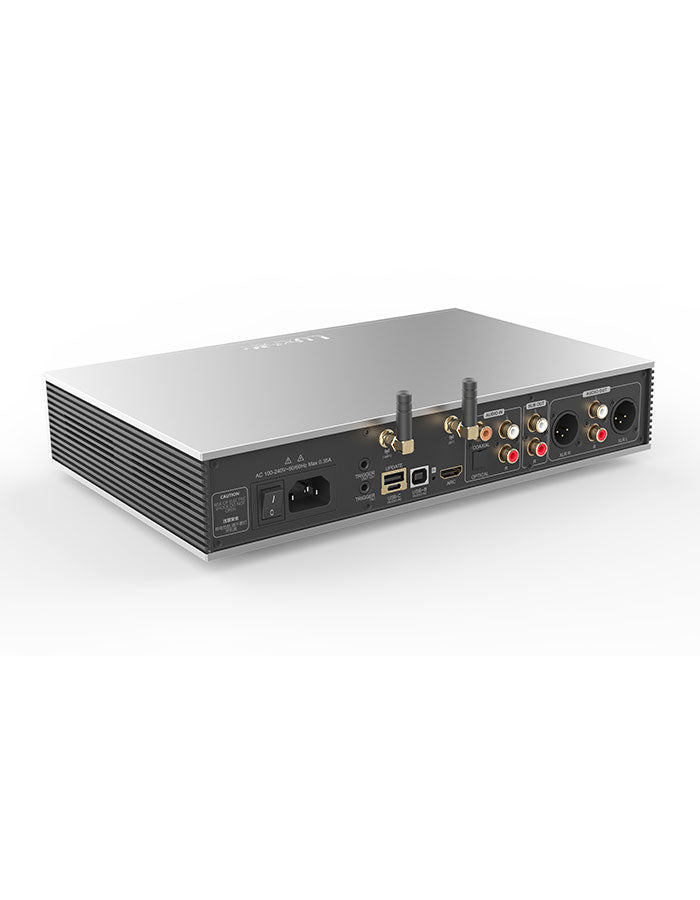

Headphone AMP and PreAMP in One

The X9 is equipped with an extensive range of connectivity options, including HDMI ARC, optical, coaxial, analog inputs, USB-B/USB-C, 12V trigger ports, and dual subwoofer outputs. This allows for seamless integration into various audio setups, providing flexibility for both home and professional audio environments. As a reference-grade DAC, headphone amplifier, and preamplifier, the X9 delivers exceptional signal control and dynamic audio performance, setting a new standard in desktop audio.

Audio

• Play & DAC: support DSD512，PCM 768KHz 32-bit
• Bluetooth audio input: BT5.0，support AAC/SBC
• USB-B audio input: support Windows (10, 11)，Android，IOS。support DSD512，PCM 768KHz 32-bit
• Optical/Coaxial audio input: support PCM 192KHz 24-bit，DoP64
• HDMI ARC: support PCM 192KHz 24-bit
• Analog input: RCA（unbalance），max gain +10dB
• Analog audio output interface: XLR (balanced)+RCA (unbalanced)+subwoofer output

XLR Audio Output

• Output level: 4.2Vrms@0dBFS
• Frequency Response: 20Hz~20KHz (±0.25dB)
• Dynamic Range: > 128dB
• Signal-to-Noise Ratio (SNR): >128dB
• THD+N: <0.000096% (-120.3dB) @ Unweighted
• Crosstalk: >-117dB

RCA Audio Output

• Output level: 2.1Vrms@0dBFS
• Frequency Response: 20Hz~20KHz (±0.25dB)
• Dynamic Range: > 125dB
• Signal-to-Noise Ratio (SNR): >125dB
• THD+N: <0.00010% (-119dB) @ Unweighted
• Crosstalk: >-114dB

Headphone Audio Output

• Output level: 4-15Vrms@0dBFS
• Frequency Response: 20Hz~20KHz (±0.25dB)
• Dynamic Range: > 128dB
• Signal-to-Noise Ratio (SNR): >128dB
• THD+N: <0.00016% (-116dB) @ Unweighted

Details & Dimensions

• Model: X9
• Display: 4-inch TFT Fully Laminated Touchscreen（960X400）
• Hardware solution: DAC：AK4191EQ+AK4499EX ；Bluetooth decoding：QCC5125
• Audio processor: AKM 7739 DSP
• Op-Amp chip: OPA1612
• dimension: Width: 300mm * Length: 206mm * Height: 65mm
• Power supply: Ultra-Low Noise Linear Power Supply
• Rated Power: 25W
• Packing list: Power Cable ×1, Remote Controller ×1, USB-B Cable×1, User Manual ×1
• Color: Silver
• Weight: 3.72kg
• Operation method: Touchscreen, Infrared + Bluetooth Remote Control, Luxsin App (compatible with Android and iOS)

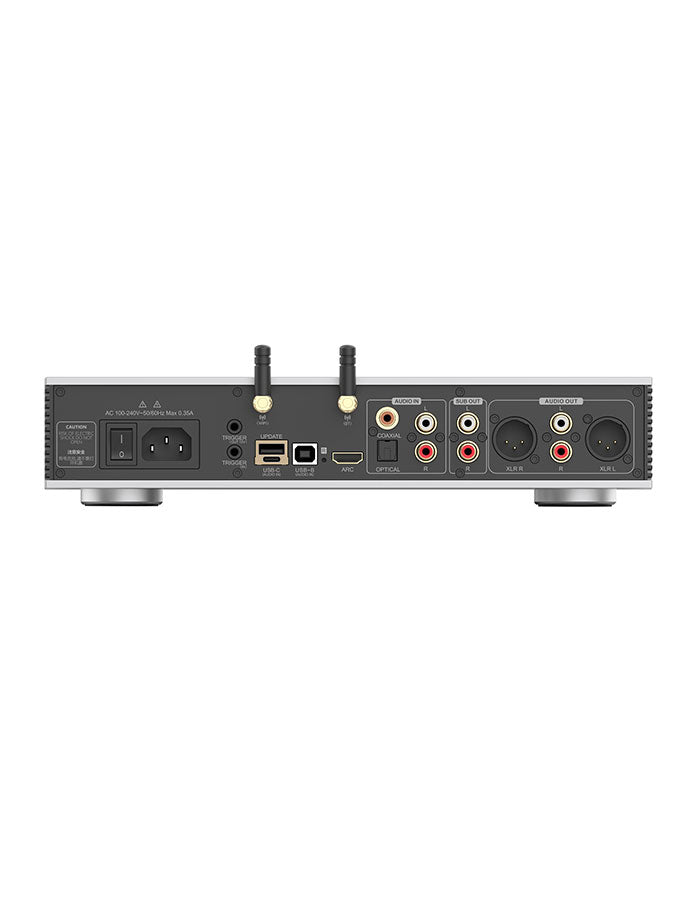

Input

• USB-A Port: For Firmware Updates Only
• USB- B Port: USB Audio System Compatibility: Windows (10, 11), Android, iOS; Supports up to Stereo DSD512, PCM 768kHz/32-Bit
• USB Type-C: USB Audio System Compatibility: Windows (10, 11), Android, iOS; Supports up to Stereo DSD512, PCM 768kHz/32-Bit
• Analog (unbalanced input): RAC*2（unbalanced），Max Gain +10dB
• Optical: Support up to PCM 192KHz 24-bit，DoP64
• Coaxial: RAC*1
• Bluetoth input: BT5.0，support AAC/SBC
• HDMI ARC: support PCM 192KHz 24-bit
• TRIGGER Connection: 3.5mm Headphone Jack (TRIGGER IN ×1 + TRIGGER OUT ×1)
• WiFi: WiFi 2.4G / 5G
• Volume Knob: Encoder Knob
• Power Button: Single Press: Mute, Long Press: Standby
• Power Switch: Rocker Switch
• Power Supply: AC 100-240V~50/60Hz
• Controller: 12-Button Infrared Remote Control

Output

• Balanced Circuit Output: XLR3 Balanced Socket
• Unbalanced Circuit Output: RCA*2
• Subwoofer Output: RCA*2
• Balanced Headphone Output: 4.4mm Socket ×1 + XLR4 Balanced Socket ×1
• Unbalalced Headphone Output: 6.35mm Socket
