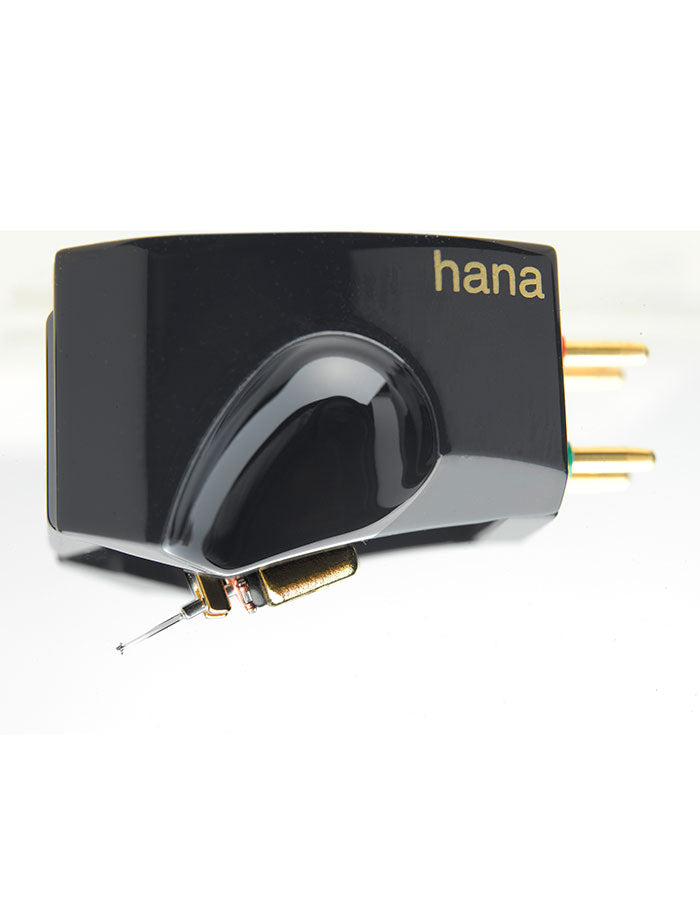

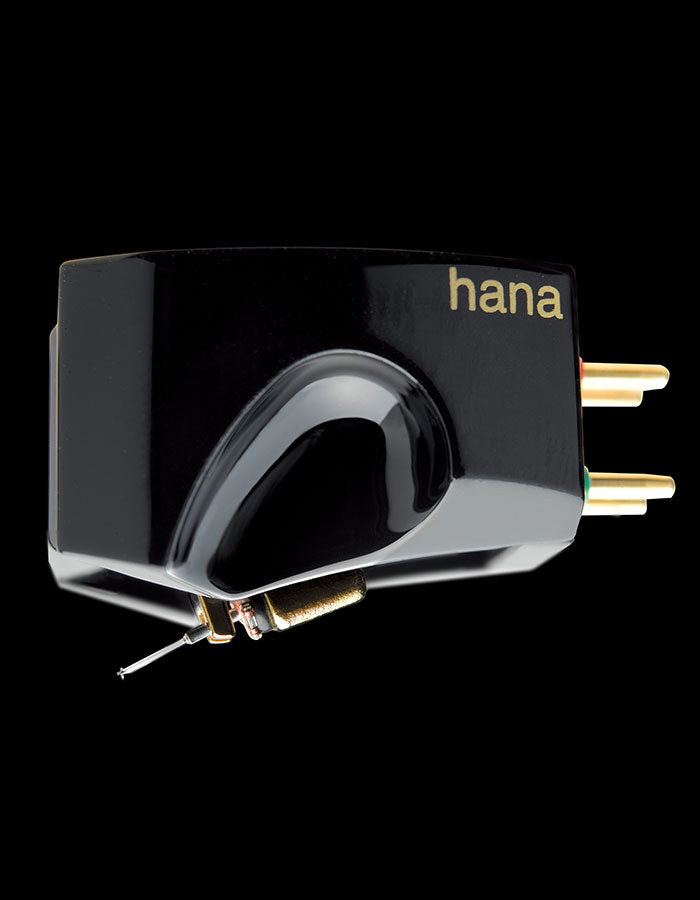

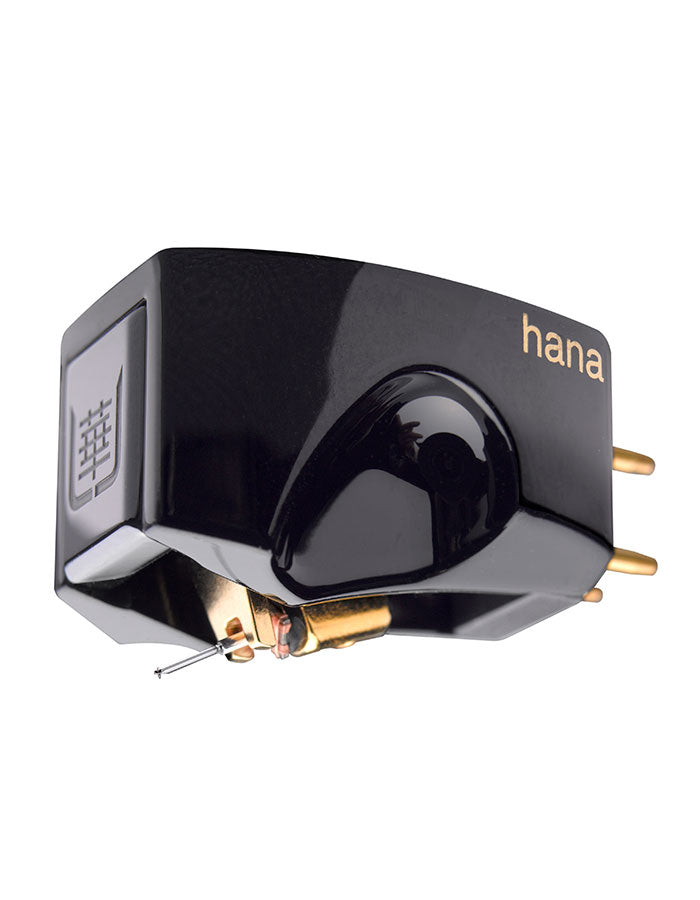

Hana Umami Black Cartridge

In stock

In stock

Audio Art Cable USA

HANA-UMAMI-BLACK

$11,500.00

The HANA-Umami Black continues the brand’s legacy of “Brilliant and Gorgeous” sound. Master cartridge designer Masao Okada-san of Excel Sound celebrates over 5 decades of innovation and excellence with his new masterpiece, featuring a diamond cantilever and new “OKD” High-Efficiency Moving Coil Generator. The Umami Black is much more than just an Umami Red with a diamond cantilever.

Diamond Cantilever

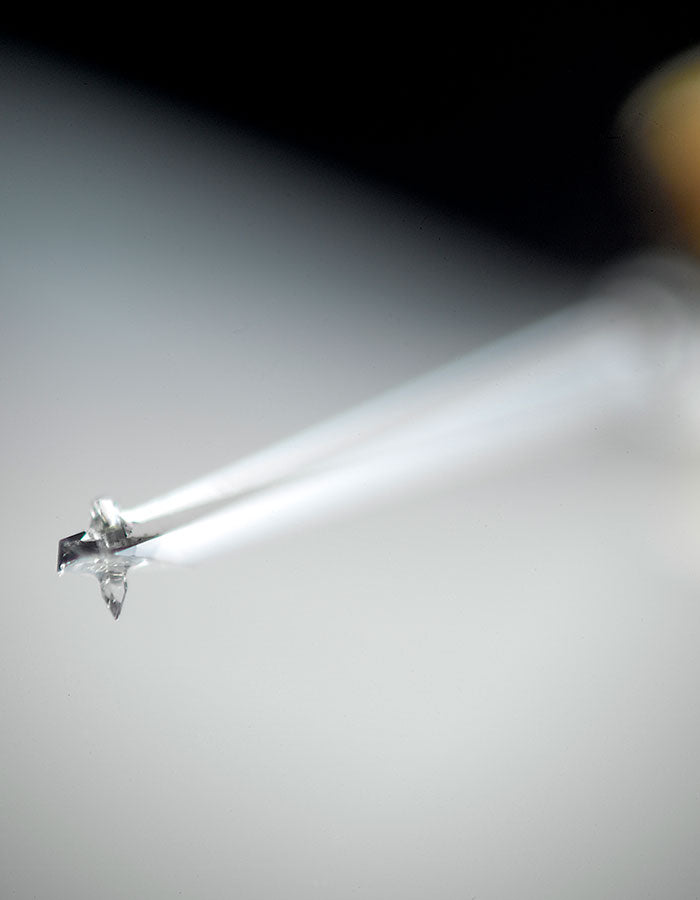

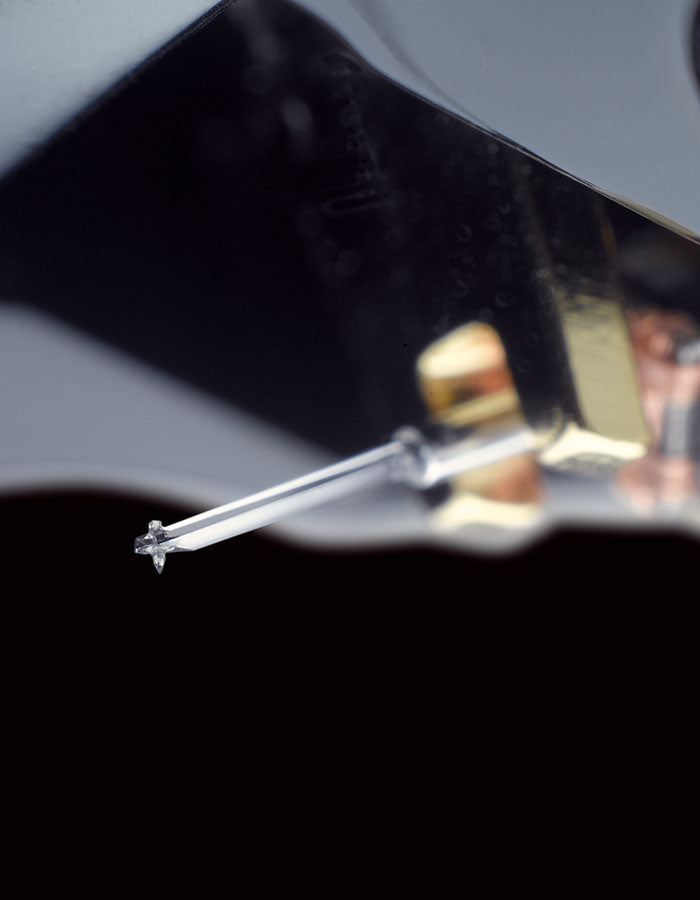

In a category first for HANA, the Umami Black incorporates a diamond cantilever, the hardest possible material, ideal for signal transfer.

High-Efficiency “OKD” Moving Coil Generator

Another category first, the Umami Black uses the newly developed “OKD” with the world’s first “Integrated Pole Piece and Rear Yoke” and Inverted U-shaped Front Yoke, optimizing energy transfer from the diamond cantilever.

Inverted U Front Yoke

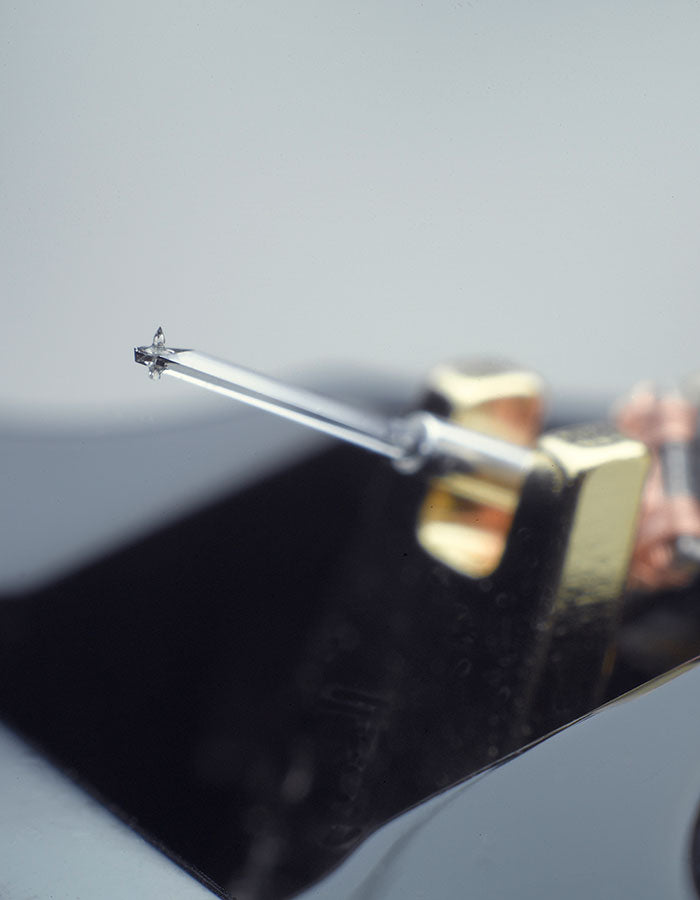

The U-shaped (bifurcated) inverted front yoke is engineered for both mechanical resonance control and magnetic field alignment, while also providing precise support for the diamond cantilever.

High-Power Rare Earth Magnet

Unique to the Umami Black, the rare earth neodymium-iron-boron (NdFeB) magnet is used for the high-efficiency generator, delivering superior energy conversion.

Hybrid Carbon Armature

A 2mm square hybrid Carbon permalloy armature, comprising 78% carbon-infused nickel-iron, is precisely hand-wound with 30-micron, 4N high-purity copper wire on Excel’s proprietary machinery. This ultra-light moving coil has an output of 0.3mV and a 5 ohm impedance.

Special Urushi Enameled Finish

The HANA-Umami Black features an exquisite Urushi lacquer finish, applied through a specialized thermosetting process, bonding to the aluminum body via vapor deposition.

Material: Duralumin (A7075)
Shape: Auricle open air
Finish: Urushi lacquer, thermosetting process
Stylus: Microline Nude Diamond
Cantilever: Diamond
Structure: “OKD” generator with Integrated Pole Piece and Rear Yoke, Inverted U Front Yoke
Armature Material: Permalloy, 78% carbon-infused nickel-iron
Armature Shape: 2mm Square Plate
Parts Material: Pure Iron
Magnet: Neodymium (NdFeB)
Coil Impedance: 5Ω
Output Voltage: 0.3mV
Load Impedance: > 50Ω
Cryogenic: "OKD" generator included with Integrated Pole Piece and Rear Yoke, U Front Yoke, Gold Plated Output Pins
Frequency Response: 15-50,000Hz
Output Balance: 0.5dB/1kHz
Channel Separation: 30dB/1kHz
Tracking Weight: 2g
Trackability: 70 µm/2g
Dynamic Compliance: 10 x 10-6 cm/dyne (100Hz) Estimated at 17 x 10-6 cm/dyne at 10Hz
Cartridge Weight: 11.3g
