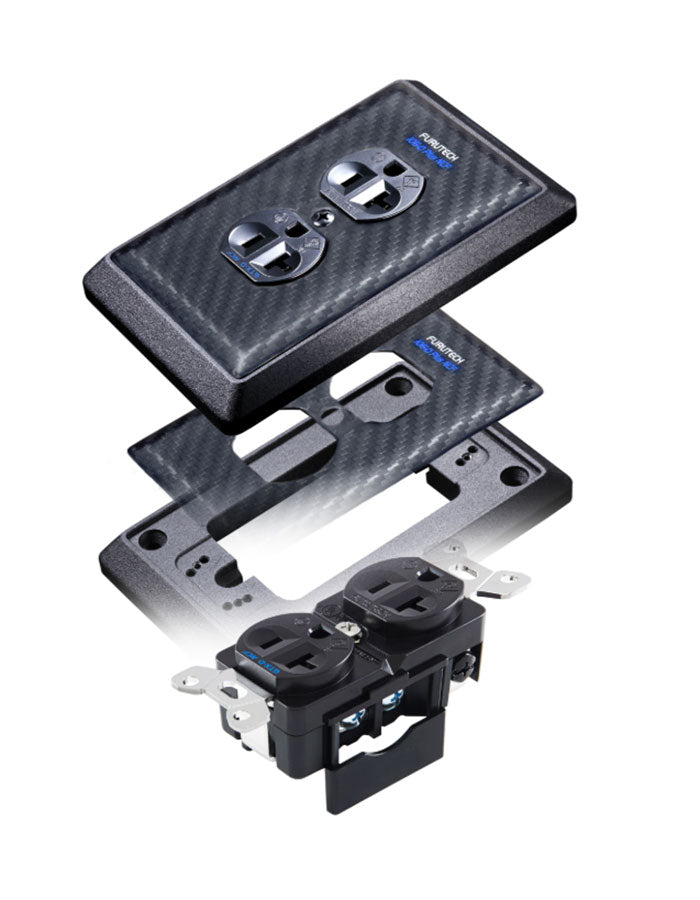

Furutech Top-Line Receptacle Bundle

Furutech GTX-DR NCF High-End Performance Duplex Receptacle (Pure Copper conductors with NCF technology) and Rhodium Plating
This is a NEW version of the GTX DR receptacle. The basic body style and features are retained, and the conducting parts are made of pure copper. The Nano Conductor Formula (NCF) is NEW from Furutech featuring a pure copper AC receptacle like the original GTX, which translates into even higher performance that is obvious to the listener at even the first blush of music.

Furutech 106-D NCF Plus High End Performance Duplex Damper Outlet Cover
NCF Damper Outlet Cover 106-D Plus NCF is Furutech’s “Top of the line” Receptacle Cover. After a multitude of tests involving the best in damping materials, Furutech brings you, its masterpiece. This combination of carbon and NCF will be the final touch to your complete AC chain. **Improved version of the 106-NCF outlet cover

Furutech GTX Receptacle Wall Frame
Beautifully crafted special grade aluminum CNC processed chassis effectively shields against RFI (Radio Frequency Interference).

Furutech GTX-DR NCF High-End Performance Duplex Receptacle (Pure Copper conductors with NCF technology) and Rhodium Plating:
Rhodium-plated α (Alpha) Pure Copper Conductor (0.8mm) Nonmagnetic stainless conductor spring system
Body material: Nylon/fiberglass with a special anti-resonance nano-sized crystalline, piezo ceramic particles and carbon damping material
Cover material: Polycarbonate with a special anti-resonance nano-sized crystalline material “NCF” Parts set with nonmagnetic 2.0mm-thick stainless brace plate
Specified for wire diameters of 4mm (set screw)
GTX-D NCF(R)
Dimensions: 104.0 mm (L) x 47.2 mm (W) x 28.0 mm (H)
Total attention to detail and build quality extends right down to a specially designed patent-pending conductor pressure plate (see below) that increases contact area Furutech spade terminal FP-205 recommended for 10 AWG wire

Furutech 106-D NCF Plus High End Performance Duplex Damper Outlet Cover:
Formed from a hybrid NCF 3K diagonal pattern carbon fiber sheet over an EMC neutralizing multi-layered NCF glass fiber base plate with a special NCF coating material finish - for the most effective damping and electromagnetic interference minimizing EMC faceplate available.
New Improved Outlet Cover for GTX-D NCF / GTX-D / FPX duplex receptacle designs.

Suggested torque: 10Kgf·cm (0.98N·m) max.
Cover overall size: 72.1 x 116.4 x 5.3 mm±0.3mm
Net Weight: 25.9g approx. (± 1.5g)
Stainless fixed screw size: M4 X 12mm (L)

Furutech GTX Receptacle Wall Frame:
Material thickness: chassis plate 13.0mm Finished with an extremely effective non-resonant coating. Includes Special Teflon damping foil and SUS Receptacle fixed screw 4 pcs (M3) and SUS Plate fixed screw 2 pcs (50mm overall length). Suitable for use with GTX-D or GTX-S receptacle and 104-D or 104-S carbon fiber finished cover. Dimensions: 135.0mm (L) x 86.0mm (W) x 13.0mm(H) -0/+0.3mm
