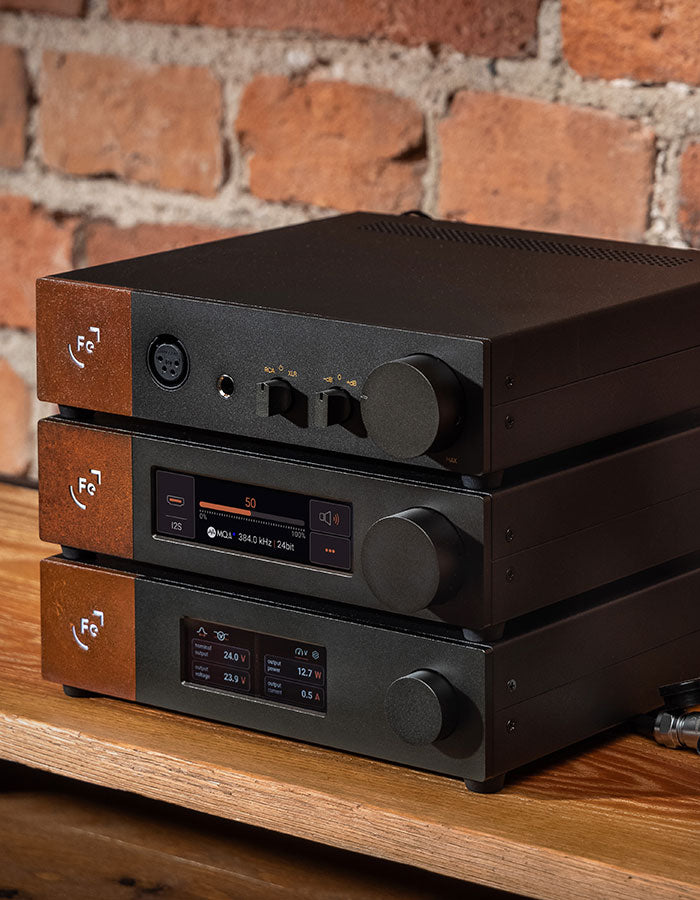

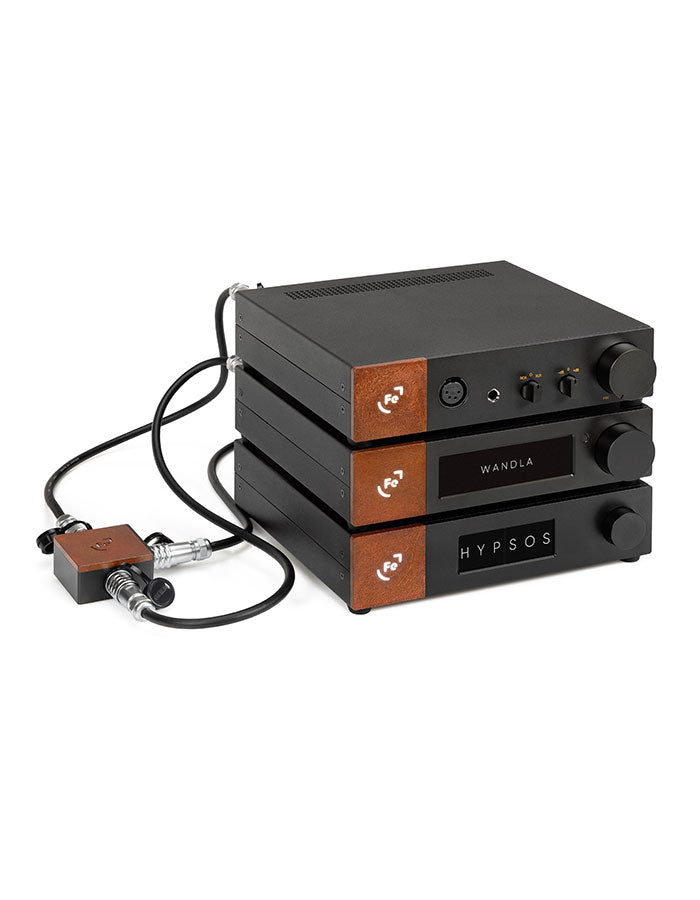

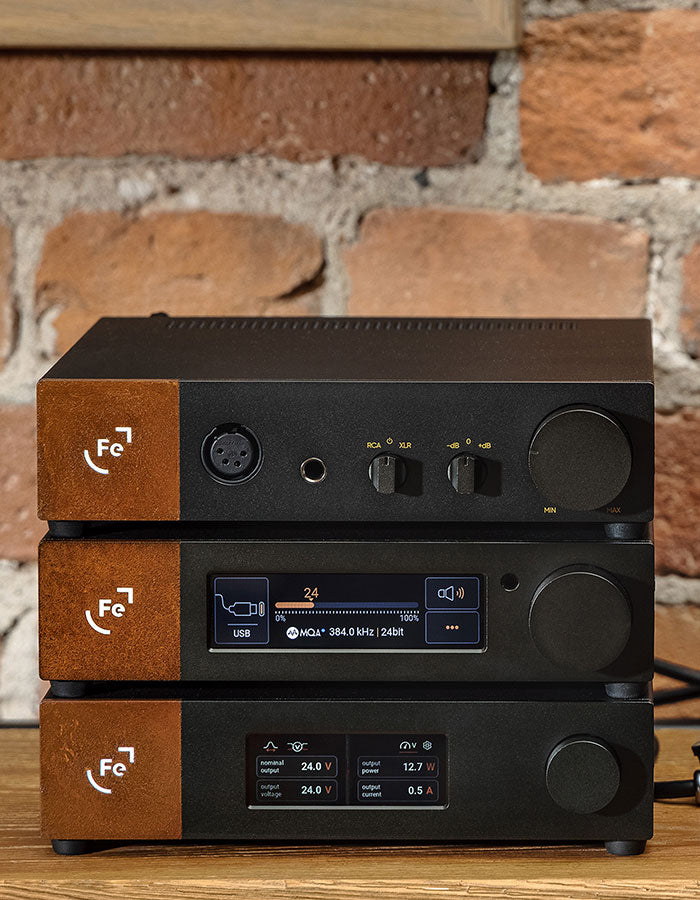

Ferrum Audio Stack

Ferrum Audio Stack

• Power Supply Options
  • HYPSOS
  • HYPSOS Dual Output
• DAC Options
  • WANDLA

• DAC/Amp Options
  • WANDLA HP (with integrated amplifier)

• Amplifier Options
  • OOR

Hybrid Power System - linear/switching hybrid design to get the advantages from both techniques - low ripple and noise as well as fast transient response and high efficiency.

Easy Setup Procedure - using pre-configured settings from the list of supported devices or setting custom parameters manually. Wide continuous output voltage range of 5-30V with up to 6A of current delivered to the load, divided over two outputs. Now HYPSOS is even more universal than it already was.

Sweet Spot Tuning (SST) - possibility to fine tune the output voltage for the best sound. The voltage level can be safely adjusted on the fly to allow easy comparison testing.

4T Sensing Design (4TSD) - ensuring the exact voltage level precisely at the point of the powered device DC input terminal - special cable design and feedback to ensure as constant voltage as possible at every moment. This technique eliminates the harmful effects of the cable’s resistance effectively improving transient response.

Advanced Automation - compatibility with Apple TV remote, Trigger in/out connector; possibility to automate power-up of the devices with standby mode even without dedicated trigger connection.

Extremely Safe to Use - Automatic Transformer Voltage Adjust (ATVA), electronic output voltage polarity switch and overvoltage, current limit and short protection.

Detailed and revealing yet unfatiguing sound - makes your current audio setup perform to its potential. Tweak the sound modifying the voltage level on the fly and use the preferred combination of the 4-Terminal Sensing and Spread Spectrum Mode settings.

HYPSOS Dual Output - comes with a high quality DC power cable fitted to order to connect to the most commonly used DC inputs. Custom cables can be made to order.

Ferrum HYPSOS:

Power input: 110-120 & 220-240V AC/50-60Hz (EU/US Version)
90 – 110Vac/50-60Hz (JP Version)IEC C14 power inlet, a fuse holder with power on/off switch plus two-stage EMI filter for low impedance load with better noise attenuation in low frequency applications
Mains cable: US/EU/UK
DC OUT cable: 5×2.5mm DC plug / 5×2.1mm
Output Voltage Range: 5-30 [V]
Max Continuous Output Current (for V_out below 13,3V): 6 [A]
Max Continuous Output Current (for V_out higher than 13,3V): l_out= 80[W] / DCout[V]
Maximum Impulse Current: 9A
Maximum Impulse Power: DC V_out*9A (270W for 30V)
Max Continuous Output Power (for V_out below 13,3V): P_out = V_out[V] * 6[A]
Max Continuous Output Power (for V_out higher than 13,3V): 80W
Dimensions (without knob, feet and connectors) (W x D x H , mm / inches): 217.5 x 206.5 x 50.0 / 8.6 x 8.1 x 2.0
Net weight (kg / lb): ~ 2,89 / ~ 6.2
Primary winding fuse: IEC 5x20mm, 250V 3.15A, slown-blown for Japan version / 250V 2A, slown-blown for Europe, US version
Secondary winding fuse: Littefuse 154004T, 4A
Power consumption: 230VAC, 50Hz @ 12VDC out/: Idle – 6VA @ 15W load – 30,7VA @ 60W load – 98VA @ 80W load – 133,9VA

Ferrum HYPSOS Dual Output hybrid power system:

Power input: 110-120 V AC & 220-240 V AC / 50-60 Hz (EU/US)
100 V AC / 50-60 Hz (JP)
Mains: IEC C14 power inlet, fuse holder, power on/off, two-stage EMI filter
Mains cable: EU, UK, AU or US
DC out cable: 5.5 x 2.5 mm or 5.5 x 2.1 mm DC plug
Voltage, current and power specifications showed below are for both outputs combined. Same voltage is shared on both outputs. Current and power are combined from both outputs. 4TSD functionality is only active on the main output.
DC outp. voltage range: 5-30 V
Max. cont. outp. power: 60 W
Max. cont. outp. current: 6 A
Primary winding fuse: IEC 5×20 mm, 250 V 3.15 A, slow-blow (JP)
250 V 2 A, slow-blow (EU/US)
Power consumption: @ 230 V AC / 50 Hz and 12 V DC out:
no load (idle) – 6 VA, ~ 80 W load – 133.9 VA
Dimensions (W x D x H): 21.7 x 20.6 x 5 cm / 8.6 x 8.1 x 2 inch (without knob, feet and connectors)
Net weight: 3.05 kg / 6.72 lbs

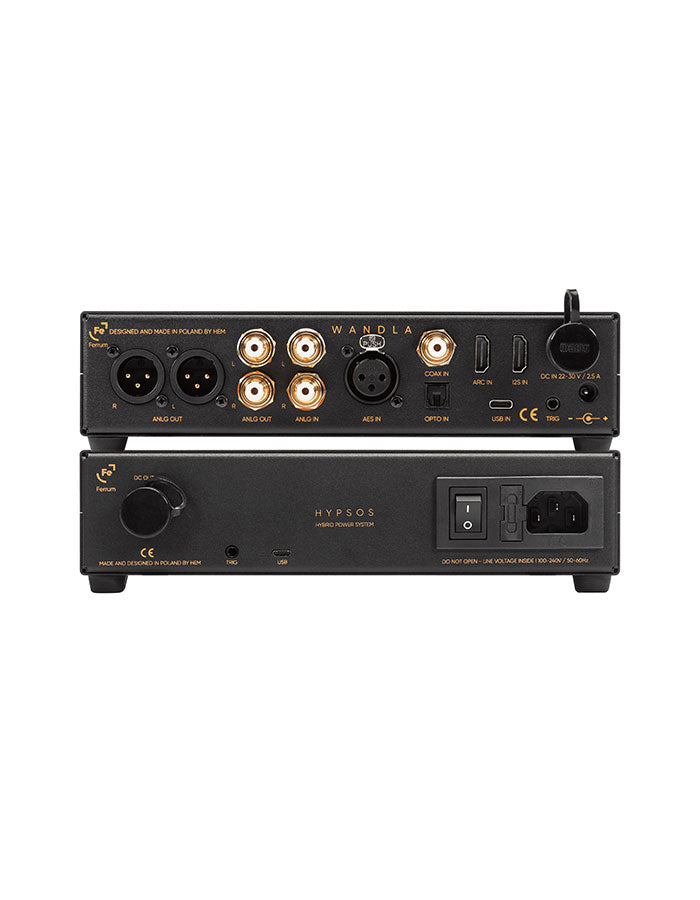

WANDLA:

Operation: Fully balanced, proprietary IC power amp
DAC chip: ESS Sabre ES9038PRO
DAC resolution: 768k/32bit, DSD 256
Digital inputs:
-AES/EBU (up to 196kHz/24bit, DoP 64)
-Optical S/PDIF (up t/24bit)
-Coaxial S/PDIF (up to 192kHz/24bit, DoP 64)
-USB-C (up to 768kHz/32bit, DSD 256)
-ARC (up to 192kHz/24bit), TV input with CEC
-I2S (up to 768kHz/32bit, DSD 256), PS Audio® compatible
MQA®: decoder and renderer (on all digital inputs)
Analog inputs: RCA
Analog input Vmax: 9,5V RMS (2 – 3,5V RMS recommended)
Analogue input imp:47kΩ
Line outputs: balanced XLR; unbalanced RCA
Volume control: analogue with bypass option / digital for DAC operation only
Output level: @0dBFS, 1kHz sine 9,3V RMS balanced, 4,65V RMS unbalanced
Frequency response analong inputs: 10Hz – 200kHz +/- 0,1dB
DAC THD: 121dB (0,00009%); THD+N: -115dB (unweighted)
Analog input THD: 123dB @ 2V RMS output level
Dyn. range analog: 127dB (A-weighted)
Dyn. range digital: 127dB (A-weighted)
Crosstalk: 120dB for 1kHz, better than -100dB for 20Hz -20kHz
Output impedance: 22Ω unbalanced
Output impedance: 44Ω balanced
Power consumption: 10W idle / 15W max
Power inputs: 5,5/2,5 mm DC connector centre positive proprietary FPL 4-pin DC connector (FPL), 22-30VDC
Power adapter: 100-240 VAC to 24VDC
Dimensions: 21,7 x 20,6 x 5 cm
(WxDxH): 8.6 x 8.1 x 2.0 inch
Weight: 1,8 kg/3.97 lbs

WANDLA HP DAC/PREAMP with Headphone AMPLIFIER:

Fully Balanced - WANDLA HP offers a fully balanced, composite IC headphone amplifier design, fine tuned for WANDLA.
Powerful - WANDLA HP’s headphone amplifier can output a hefty 3.5 Watts at 50 Ω (balanced).
Dynamic - WANDLA HP’ headphone amplifier has an impressive dynamic range of 122 dB.
Proprietary optimized ARM chip offers the shortest signal path possible, making 5 chips redundant
Four proprietary Signalyst filters
Proprietary 4-pin Ferrum connector for HYPSOS
Balanced XLR and unbalanced RCA line outputs
Digital and Analogue volume control
EES Sabre ES9038PRO with selected filter
Remote control included

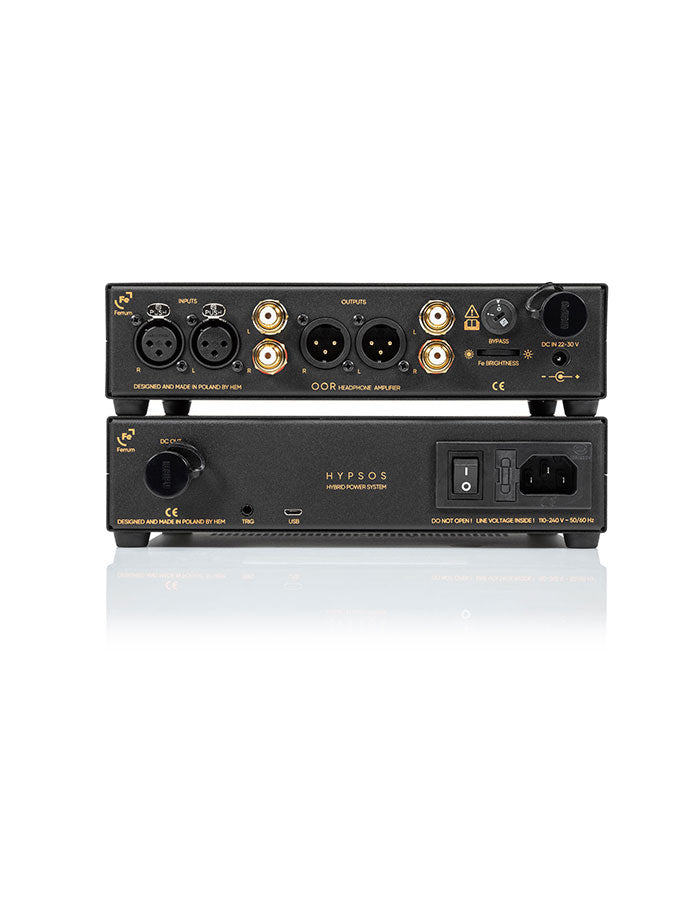

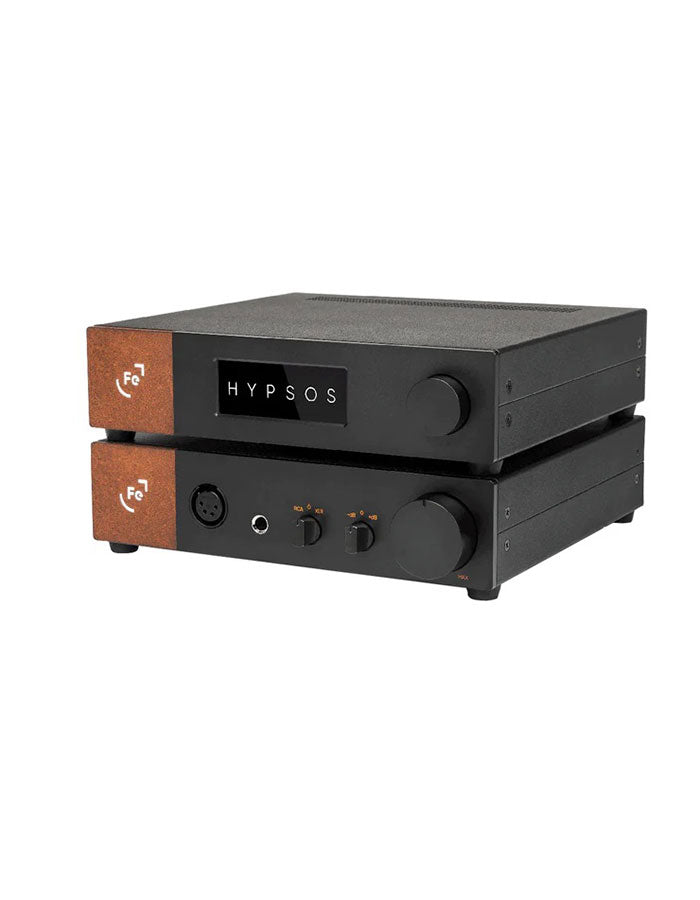

OOR:

Gain (dB):balanced -4 dB, + 6dB, +16 dB / single ended -10 dB, 0 dB, 10 dB
Operation: Fully balanced, proprietary discrete power amp technology
Inputs: XLR, RCA, 2.5 mm DC connector centre positive, proprietary 4-pin DC connector
Outputs: Balanced 4-pin XLR, 6.35 mm jack
Frequency Response: 20 Hz – 100 kHz 0.1 dB
Output Power Single Ended: 400 mW into 300 Ω, 2 W into 60 Ω
Output Power Balanced: 1.600 mW into 300 Ω, 8 W into 60 Ω
THD on balanced output: 0.00011% / -119 dB, 1 mW into 50 Ω; 0.00028% / -111 dB, 100 mW into 50 Ω
THD on unbalanced output: 0.00008% / -122 dB, 1 mW into 50 Ω; 0.00028% / -111 dB, 100 mW into 50 Ω
Dynamic range: 130 dB (A-weighted)
Input Impedance: 94 kΩ
Output Impedance Single Ended: 22 Ω on pre-amp
Output Impedance Balanced: 44 Ω on pre-amp
Output headphones Impedance: < 0.3 Ω
Power Consumption: Idle <15 W
Power Adapter: 100/240 V AC to 22-30 V DC
Dimension (W x D x H) (In/cm): 8.6 x 8.1 x 2.0 inch / 21.7 x 20.6 x 5 cm
Weight (kg/lbs): 1.8 kg / 3.97 LBS
Price: 1.995 EUR/USD
