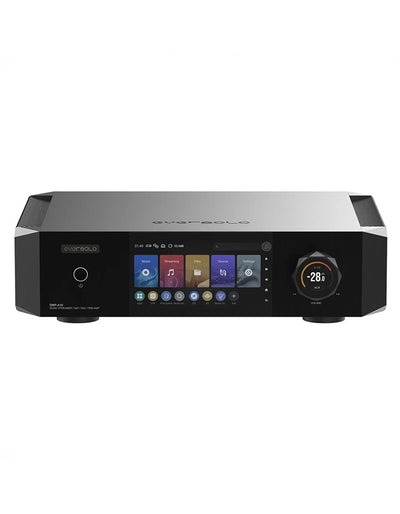

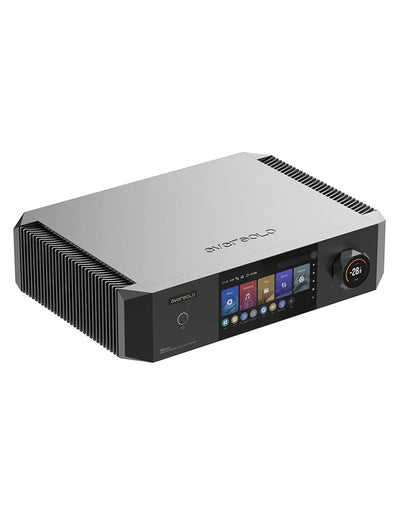

Eversolo DMP-A10 Flagship Streaming DAC, Preamp

High-Resolution Playback: Supports multiple high-res formats, ensuring exceptional audio clarity and fidelity
Dual DAC Chipset: Equipped with high-performance DAC chips for balanced, detailed sound
Touchscreen Interface: Intuitive control via full-color 6.5" LCD touchscreen for ease of use
Wi-Fi & Bluetooth 5.0 Connectivity: Stream seamlessly with both wired and wireless options (including SFP Fiber + ethernet)
Expandable Storage: Supports up to 4TB external storage, offering ample space for large music libraries
Multi-Room Compatibility: Can integrate with other Eversolo devices for a synchronized home audio experience
Premium Build Quality: Designed with robust materials for durability and an elegant aesthetic

Feature Packed

EverSolo EOS Audio Engine
EOS (EverSolo Original-Sampling-Rate Audio Engine) was developed by in-house engineers and enables bit-perfect audio playback that bypasses any Android OS restrictions on which EOS is built.

ES9039PRO DAC
Powered by the industry-leading ES9039PRO DAC chip, the DMP-A10 brings audio to life with its HyperStream IV architecture and enhanced signal processing capabilities, significantly reducing distortion and noise to provide pure audio output.

OCXO Clock System
The EverSolo custom-developed temperature control technology for OCXO clock system ensures both audio crystal oscillators (45.1584MHz and 49.152MHz) operate at a constant optimal temperature point, thus eliminating frequency fluctuations caused by temperature changes, delivering extremely low phase noise. Therefore, with jitter levels below 50fs, more accurate clock signals are provided to the audio system, adding more clarity, detail and air in sound.

EverSolo DMP-A10 streamer OCXO clock system closeup

Electrical Isolation
With a high-speed electrical isolation system, the DMP-A10 separates noise and interference from different circuit boards. The complete physical isolation eliminates any possible interference to audio circuits in the transmission of system circuit signals, ensuring that the audio signal remains pure and undisturbed. The display panel features a shielding design as well, resulting in outstanding audio clarity and precision for an unrivaled listening experience.

Isolated USB Audio
By incorporating an advanced electrical isolation circuit, the DMP-A10 minimizes interference from high-noise power sources and grounding loop issues when connecting external DACs and USB devices. Utilizing iCoupler ® technology, it transmits both the clock signal and data to the isolated side in the correct time order and then resynchronizes them to maintain consistency. This ensures that USB signals are transmitted with high fidelity, reducing jitter and maintaining signal accuracy.

SFP Fiber Network Interface
To eliminate interference from high-frequency noise in network switches and other network equipment, the DMP-A10 introduces an SFP Fiber port, allowing users to connect DMP-A10 to local network via fiber optics. In this case, cleaner audio is delivered without electrical connection between the network switch and the DMP-A10. Traditional RJ45 Ethernet connections are also supported for easy integration. (*SFP module needs to be purchased separately.)

Digital to Digital Converter
The DMP-A10 supports DDC (Digital to Digital Converter) functionality. Digital signals from USB audio input, coaxial/optical input, and ARC input can be output as SPDIF signals or analog signals after various EQ adjustments. Additionally, analog signal input can be captured by the high-spec ADC (up to 192kHz) , then output as SPDIF signals or analog signals after EQ adjustments.

Dual Power Supplies
To further enhance sound purity, the DMP-A10 features dual power supplies with ultra-low background noise, providing stable power output for both the digital system and analog audio circuits. The ripple of the analog audio power supply can be reduced to below 30µVrms, creating a quiet and pure listening environment. Additionally, it incorporates a patented intelligent switching technology for the linear power supply voltage input, enabling compatibility with voltages worldwide without flipping switches.

Rich Selection of Inputs and Outputs
DMP-A10 can connect to a variety of audio devices which a number of digital inputs and outputs. You get the classics like USB, Optical, and Coaxial, as well as newer standards like HDMI, Bluetooth, WiFi, and wired ethernet connections.

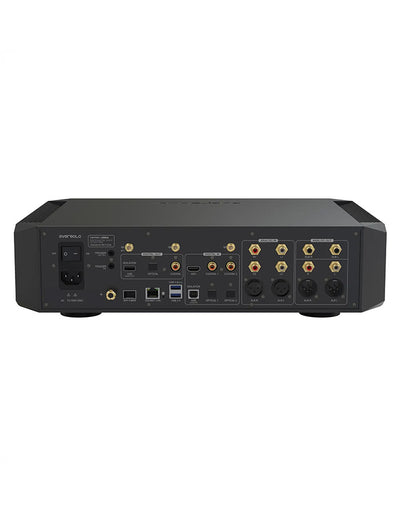

EverSolo DMP-A10 streamer inputs and outputs closeup

Dual Subwoofer Outputs
With two dedicated subwoofer outputs, expanding your audio system is easy and flexible. If you love deep, balanced bass that’s perfect for creating an immersive experience in both stereo and home theater, the DMP-A10 is your ideal ally.

Fully Balanced Analog Preamp Circuit
The DMP-A10 is equipped with a high-performance fully balanced preamp circuit, supporting XLR/RCA analog inputs. It features a +10dB analog gain and the R-2R analog volume control, ensuring ultra-low noise and distortion, providing better signal-to-noise ratio, dynamic range, and other performance metrics.

Music Services Galore
The DMP-A10 incorporates popular music services like TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music etc. You can take advantage of numerous high-quality online music services and revel in the allure of limitless streaming music along with support for numerous third party APPs for high resolution audio direct output using the original EOS engine. (*The number of installed music services is dependent upon the certification progress and subject to the installed firmware - more music services to come!)

Wireless Music Streaming
Roon Ready (*certification in progress), Tidal Connect, and DLNA are supported. High quality music can be streamed online to mobile devices on the same LAN, making it simpler to enjoy online music services and easier to play back music at home.

In addition to two high-speed USB 3.0 ports and two sets of SSD slots, the DMP-A10 supports NFS, SMB, UPnP, and more sharing protocols, allowing you to stream media from NAS devices or network drives effortlessly. Even high-bitrate files like DSD512 master recordings can be played without stuttering. Additionally, it supports loading and playing music from WebDAV, Plex, Emby and Jellyfin.

Room Correction Technology
With Eversolo Digital Room Correction, the DMP-A10 analyzes your listening environment with the high-precision microphone, adjusting sound frequencies through complex algorithms to eliminate acoustic issues. The result? A listening experience that feels more immersive and lifelike, tailored specifically to your space.

Smart Control App
Android + iPhone/iPad control apps are available for the DMP-A10. In addition to basic playback control and system settings, they support asynchronous viewing of music library data and menus. Screen mirroring is also supported by installing third-party App.

Specifications
Model: EverSolo DMP-A10
Material: Aluminum alloy
Display: 6.5" LCD touchscreen
DAC: ES9039Pro
Audio Processor: XMOS XU316
Storage: 4G DDR4+64G eMMC
SSD: M.2 NVMe 2280 protocol, up to 4TB SSD
USB Ports: (x2) USB-A 3.0
Ethernet: RJ-45(10/100/1000Mbps)
SFP Fiber Network: Supports single-mode single-fiber, single-mode dual-fiber optical modules, as well as SFP electrical port modules
WiFi: 2.4G + 5G
DAC Decoding: Supports up to stereo DSD512 Native and PCM 768KHz 32-Bit
Music Service: TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, Deezer etc.
Streaming: Roon Ready, TIDAL Connect, WebDav, UPnP, DLNA etc.
Bluetooth Input: BT 5.0, supports SBC/AAC
USB-B Audio Input: Windows(10, 11), Mac, Android, iOS | supports up to stereo DSD512, PCM 768KHz 32Bit
Analog Audio Input: XLR (BAL)+ RCA (pre-input) | Input range: RCA MAX 2.5 Vrms, XLR MAX 5 Vrms
Optical + Coaxial In/Out: Supports up to stereo PCM 192KHz 24Bit, DSD64 Dop
ARC Input: Supports up to stereo PCM 192KHz 24Bit
USB Audio: Supports up to stereo DSD512 Native, PCM 768KHz 32Bit
(Only supports DAC audio devices compliant with UAC standards.)
Analog Audio Output: XLR(balanced)+RCA(pre-output)
Control Methods: On-screen touch control, Android/iPhone/iPad APP control, remote control.
XLR Output
Output Level: 4.2V
Frequency Response: 20Hz~20KHz (±0. 15dB)
THD+N: <0.000078%(-122dB)
Dynamic Range: > 130dB
SNR: >130dB
Crosstalk: >-123dB
RCA Output
Output Level: 2.1V
Frequency Response: 20Hz~20KHz (±0. 15dB)
THD+N: <0.00009%(-121dB)
Dynamic Range: > 129dB
SNR: > 129dB
Crosstalk: > -122dB
Power Supply: AC 110~240V 50/60Hz
Rated Power: 30W
Dimensions: 17" x 12" x 4.6"
EverSolo 1 Year Warranty
