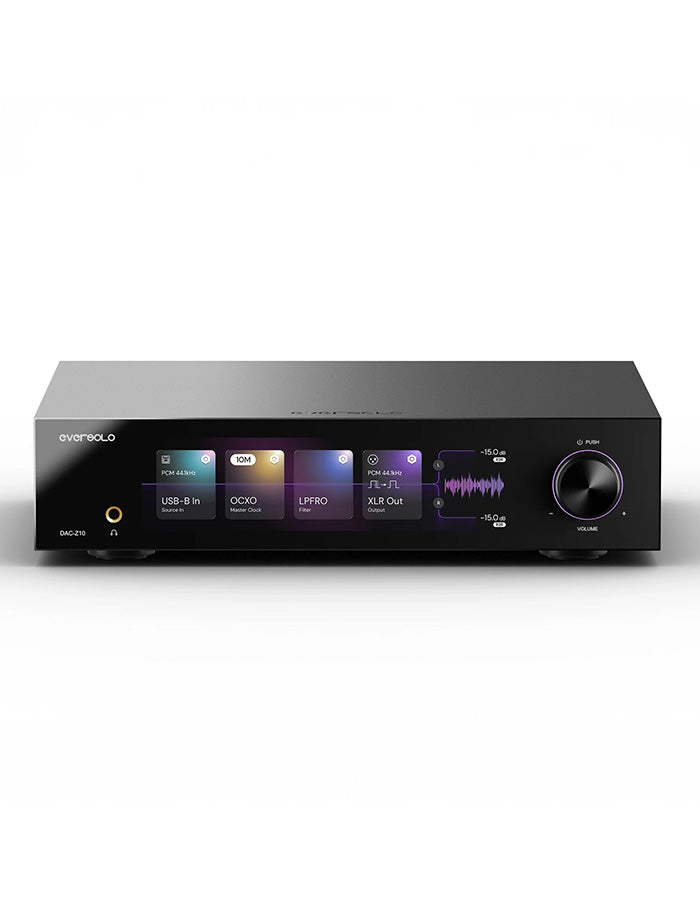

Eversolo DAC Z10 High-Resolution DAC and Headphone Amplifier

The DAC-Z10

The DAC-Z10 is built on Eversolo’s Fully Isolated Architecture (FIA), which completely separates the digital and analog domains to minimize interference and preserve signal purity. Three independent linear power supplies individually power the left channel, system, and right channel, allowing each to operate in an ultra-low-noise environment. Its decoding architecture features two sets of AK4191 + AK4499 DACs for independent left and right channels, combined with a fully balanced analog preamplifier that employs precise dual-channel R2R volume control. This configuration achieves superior DNR and lower THD+N, unlocking the full potential of the music.

Dual Decoding Modules

Built on a fully balanced architecture, the DAC-Z10 features dual independent AK4191 + AK4499 DAC modules for the left and right channels. Combined with AKM’s Velvet Sound™ technology, it strikes the perfect balance between precision and tonal richness.

R2R Volume Control

The DAC-Z10 employs a precise R2R resistor array for volume control, preserving the original signal at every level. From quiet listening to full volume, every nuance remains intact, delivering clean, accurate, and faithful sound.

Fully Balanced Preamplifier

The DAC-Z10 features a high-performance fully balanced preamplifier, supporting both XLR and RCA analog inputs with up to +10dB gain. Paired with a precision R2R analog volume control network, it delivers ultra-low noise and distortion, significantly enhancing dynamic range and signal integrity, allowing every nuance of the music to be reproduced with clarity and authenticity.

Accurate Clock System

• OCXO Temperature-Controlled Crystal Oscillator + Phase-Locked Loop Technology
• External 10 MHz & 25 MHz High-Precision Clock Support | FPGA Clock Reconstruction

Phase-Locked Loop Technology

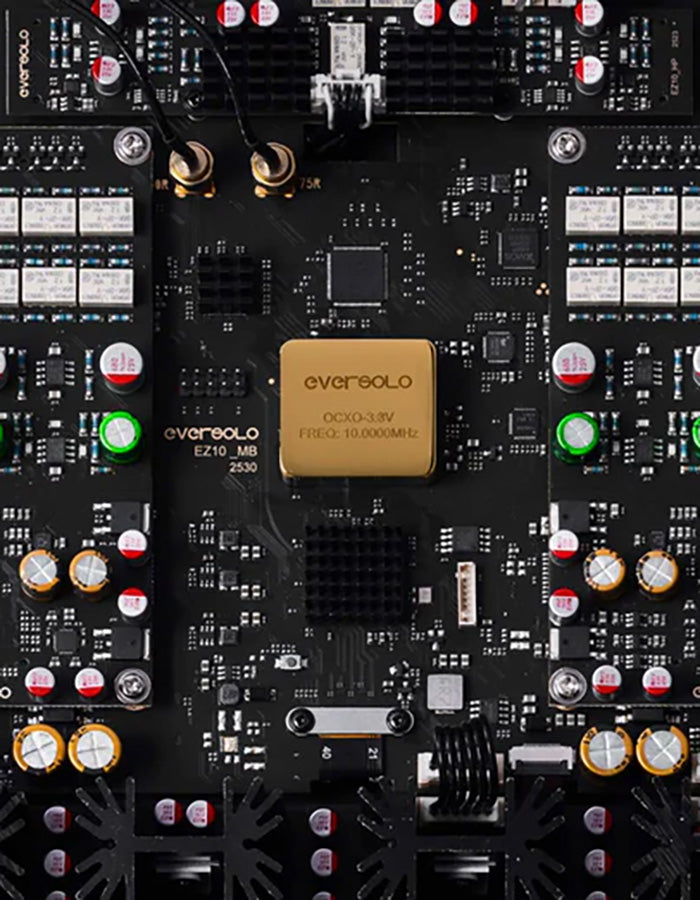

The DAC-Z10 integrates an OCXO temperature-controlled crystal oscillator and PLL (Phase-Locked Loop) technology to achieve precise clock reconstruction. Accurate timing is fundamental to high-resolution audio reproduction, and with the stability of the OCXO and the precision of PLL correction, the DAC-Z10 ensures that every note is delivered exactly as intended.

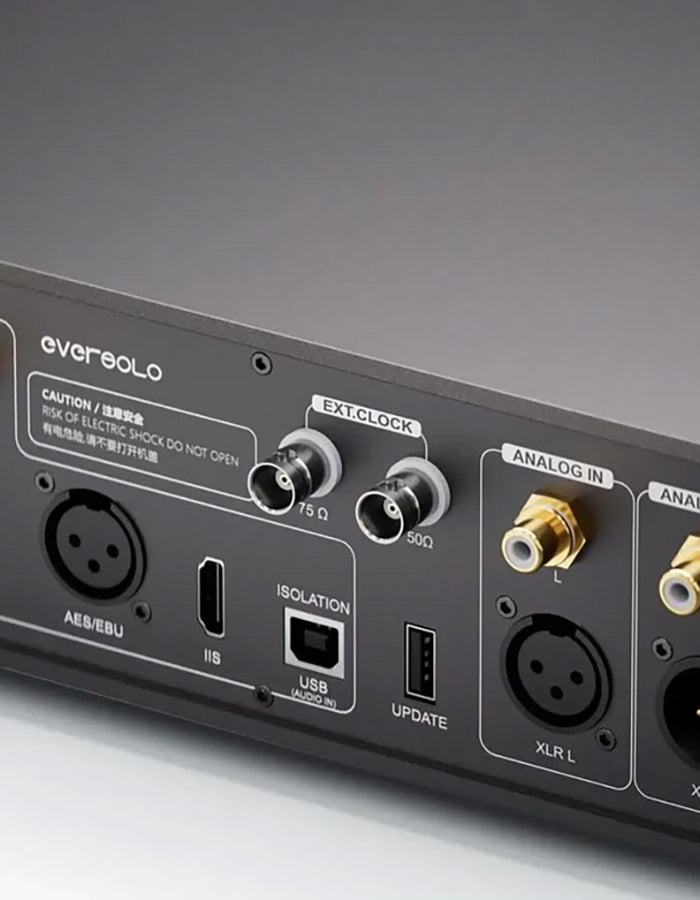

External Clock Support

Accurate timing is key to capturing every musical nuance. By supporting external high-precision clock, the DAC-Z10 takes clock stability and accuracy to the next level.

Input Specifications

• 10MHz
• 25MHz
• Input Impedance
  • 50Ω
  • 75Ω

FPGA Redefined

The DAC-Z10 features a built-in FPGA that shapes IIS data and refines the clock. Every digital signal is thus optimized to its purest form before reaching the DAC — you can truly hear the difference.

Capturing Every Nuance of the Music

The DAC-Z10 lets every listener hear the true sound. With ultra-low distortion and wide dynamic range, every note is crystal clear.

• Ultra-Low Distortion & Wide Dynamic Range

Multi-Core USB Audio Processor

The DAC-Z10 features a multi-core USB audio processor, offering higher processing speed and bandwidth to ensure lossless transmission of high-resolution audio data.

USB Audio In

• DSD512 Native
• PCM 768KHz/32Bit

Optical / Coaxial

• PCM 192KHz/24Bit
• DSD64 Dop

Grounding Post

The DAC-Z10’s grounding post channels noise away, eliminating even minor interference and preserving the purity of each note.

8-Mode IIS Digital Audio Input

Via IIS digital audio input, the DAC-Z10 offers 8 switchable modes and supports up to 768kHz/ 32Bit PCM and DSD512 Native. Its fully isolated hardware design separates signal and ground between devices, ensuring clean signals and enhanced audio clarity.

Isolated AES/EBU Input

To preserve signal purity, the DAC-Z10 features a dedicated isolated AES/EBU input, fully separating electrical noise between front-end and back-end devices. This isn’t just an engineering solution—it’s our commitment to pure sound.

HDMI ARC Integration

The DAC-Z10 is equipped with HDMI ARC, supporting both ARC and eARC modes for effortless integration into your home theater system. It not only decodes high-fidelity music but also delivers cinematic sound with stunning clarity and realism.

6.35mm Headphone Amplifier Module

The DAC-Z10 has a dedicated 6.35 mm headphone amplifier module that auto-detects impedance and adjusts gain, delivering powerful, detailed sound. High, medium, and low gain settings let you tailor playback to different headphones and listening preferences.

High Gain Output

• 1 W（16 Ω）
• 1 W（32 Ω）
• 0.16 W（300 Ω）

High Quality Bluetooth Module

The DAC-Z10 features a built-in Qualcomm QCC5125 Bluetooth module. Whether streaming from your phone or connecting directly via tablet, it delivers a high-fidelity wireless listening experience.

The Balance of Simplicity and Strength

The DAC-Z10’s chassis is crafted from aviation-grade aluminum. Rigid yet lightweight, it blends precision engineering with refined texture. Sleek in design, yet full of presence.

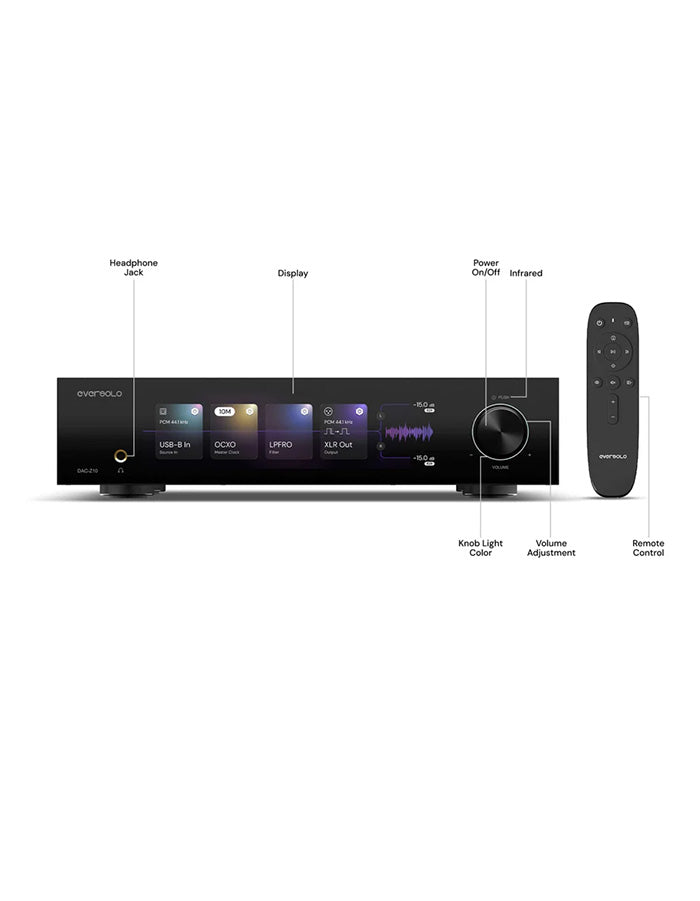

Smooth Control Experience

The DAC-Z10 features an 8.8-inch IPS touchscreen with a clear and intuitive interface. Switching inputs, adjusting volume, and checking format information are all at your fingertips.

Multiple Exclusive Colors

To let every user tailor the DAC-Z10 to their personal taste and space aesthetics, we offer multiple knob colors.

Intuitive Signal Path Display

On this interface, the path of sound is illuminated. Input sources, master clock, filter characteristics, XLR/RCA outputs, and the heartbeat of the R2R left/right channel volume control—all unfold clearly, revealing the full story of your music.

Sonic & Visual Enjoyment

The DAC-Z10 offers a variety of vintage VU meters and dynamic spectrum displays, allowing you to enjoy the visual beauty of sound while listening to music. With the DAC-Z10, every performance comes alive.

Accurate Signal Transmission

To ensure faithful sound reproduction, the DAC-Z10 offers two XLR polarity modes, allowing precise adjustment according to different system requirements. This guarantees stable and accurate signal transmission.

Music at Your Fingertips

The DAC-Z10 supports both mobile App control and touchscreen control. Manage your system remotely from your smartphone, or interact directly via the large touchscreen. No matter how you choose, your music is always within reach.

Basic Parameters

• Model: Eversolo DAC-Z10
• Display: 8.8" IPS
• Chassis Material: Aluminium alloy
• Main Processor: DCP8568
• DAC:
  • Left Channel: AK4191+AK4499
  • Right Channel: AK4191+AK4499
• Audio Processor: Multi-core USB audio processor
• OPA Chip: OPA1612
• Power: Triple ultra-low noise linear power supplies

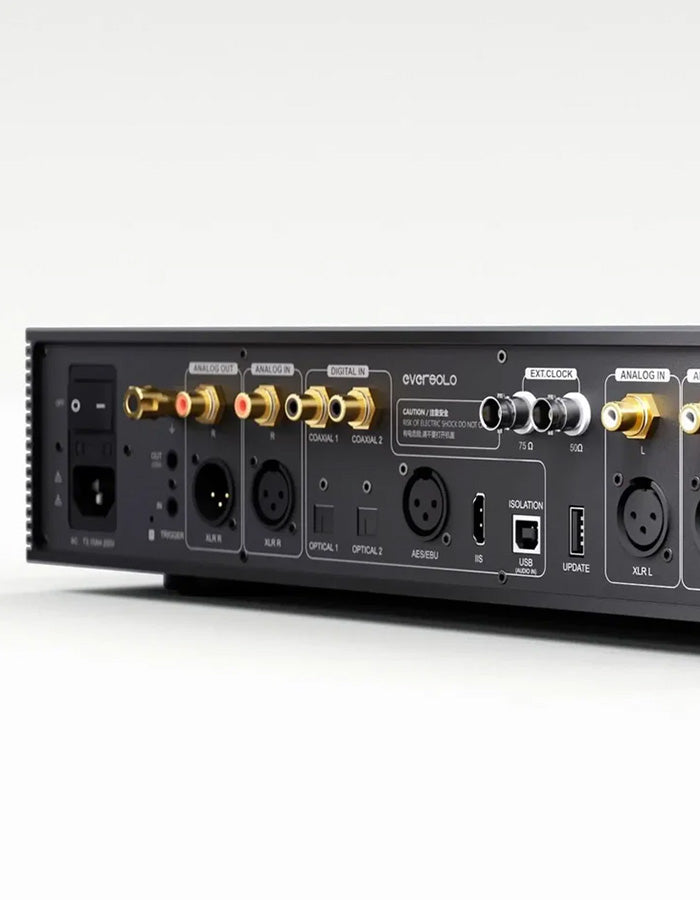

Audio Inputs and Outputs

• Bluetooth Audio Input: Qualcomm QCC5125 Bluetooth module, Bluetooth version: BT5.0; supports SBC/AAC Bluetooth audio protocols
• USB-B Audio Input: Compatible with Windows 10 and above, macOS, Android, and iOS; supports up to Stereo DSD512 / PCM 768kHz 32Bit
• IIS Input: Supports 8 mode configurations, up to Stereo DSD512 / PCM 768kHz 32Bit
• AES/EBU Input: Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
• Optical Audio Inputs *2: Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
• Coaxial Audio Inputs *2: Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
• ARC Input: Up to Stereo PCM 192KHz/24Bit
• Analog Audio Inputs: XLR (Balanced), RCA
• Analog Audio Outputs: Pre-out: XLR (Balanced), RCA; Headphone out: 6.35mm single-ended
• External Clock Input: Supports 10M/25M clock inputs with 50Ω or 75Ω impedance
• Recommended Headphone Impedance: 16–300Ω (Low Gain: 16–32Ω / High Gain: 32–300Ω)

Audio Characteristics

XLR Output Audio Characteristics

• Output Level (Vrms): 5Vrms @ 0dBFS
• THD+N @ No-wt: 0.00008% @ 1kHz (-122dB @ 1kHz)
• Noise @ No-wt: <1.2uVrms
• SNR @ A-wt: 130dB
• Frequency Response: 20Hz–20kHz (±0.1dB)
• Crosstalk: -130dB
• DNR @ A-wt: 130dB

RCA Output Audio Characteristics

• Output Level (Vrms): 2.5Vrms @ 0dBFS
• THD+N @ No-wt: 0.000097% @ 1kHz (-120dB @ 1kHz)
• Noise @ No-wt: <1.5uVrms
• SNR @ A-wt: 128dB
• Frequency Response: 20Hz–20kHz (±0.1dB)
• Crosstalk: -123dB
• DNR @ A-wt: 128dB

Headphone Audio Characteristics (Low Gain Mode)

• Output Level (Vrms): 4Vrms @ 0dBFS
• THD+N @ No-wt: 0.0003% @ 1kHz (-110dB @ 1kHz)
• Noise @ No-wt: <2.5uVrms
• SNR @ A-wt: 124dB
• Frequency Response: 20Hz–20kHz (±0.1dB)
• DNR @ A-wt: 124dB

Headphone Audio Characteristics (Mid Gain Mode)

• Output Level (Vrms): 5.6Vrms @ 0dBFS
• THD+N @ No-wt: 0.00018% @ 1kHz (-115dB @ 1kHz)
• Noise @ No-wt: <2.5uVrms
• SNR @ A-wt: 126dB
• Frequency Response: 20Hz–20kHz (±0.1dB)
• DNR @ A-wt: 126dB

Headphone Audio Characteristics (High Gain Mode)

• Output Level (Vrms): 7Vrms @ 0dBFS
• THD+N @ No-wt: 0.00013% @ 1kHz (-118dB @ 1kHz)
• Noise @ No-wt: <2.5uVrms
• SNR @ A-wt: 127dB
• Frequency Response: 20Hz–20kHz (±0.1dB)
• DNR @ A-wt: 127dB

Other Information

• Power Supply: AC 110~240V 50/60Hz
• USB Port: USB2.0*1（only for firmware upgrade）
• Control Methods: Touchscreen control, remote control, mobile App control
• Rated Power Consumption: 32W
• Dimensions: 365mm (L) × 310mm (W) × 88mm (H)

Packing List

• Remote control ×1
• Power cable ×1
• USB data cable ×1
• USB drive (for FW upgrade) ×1
• TRIGGER cable ×1
• Polishing cloth ×1
• User manual ×1
