Electrocompaniet AW 800 M Reference Monoblock Power Amplifier (Pair)

Electrocompaniet AW 800 M Reference Monoblock Power Amplifier (Pair)

AvailabilityIn stock

$45,000.00

The AW 800 M is Electrocompaniet’s brand-new flagship power amplifier. It replaces the legendary AW 600 NEMO as our most powerful monoblock power amplifier. The amplifier showcases an updated, yet unmistakable and distinctive Electrocompaniet design that is a perfect match for all current and legacy Electrocompaniet products.

Special Order, Ships in 6-8 days

Description
Specifications
Media Reviews

RE-DESIGNED

The AW 800 M encompasses the Electrocompaniet direct coupled high open loop bandwidth topology, further enhanced with high slew-rate and very high bandwidth amplifier stages. In addition, a brand-new output stage is designed that heavily shields the input and driver stages from the load and makes the output extremely stiff and unaffected by the connected load. This has the added benefit of significantly simplifying the workload of the already gently working feedback system and thus provides vanishingly low distortion figures.

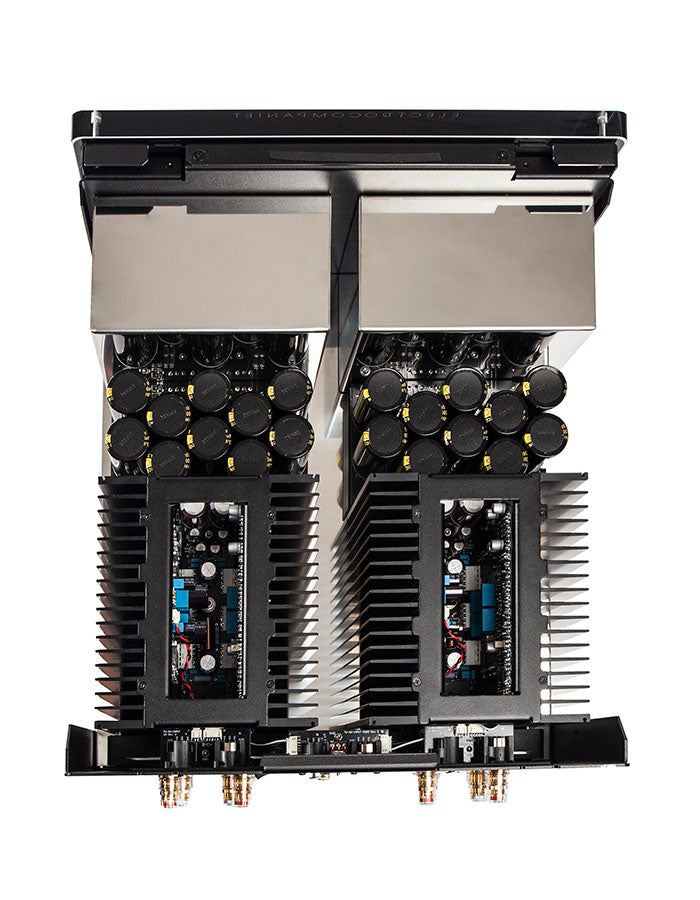

Power Supply HEAVILY UPDATED

To feed the output stage the power supply is heavily updated and now has a total of 210000 uF supply filtering.

Mains power input is DC and RF filtered. The twin toroidal, wire gauge upgraded transformers are magnetically and electrostatically shielded to keep any noise from intruding.

The internal ground reference has been vastly over dimensioned and kept fully free of rectifying and output currents. The result is a very clean, noise free output signal regardless of output power, providing a very stable sound stage with the blackest background possible at any sound level.

MONO, STEREO AND BI-AMPING OPERATING MODES

An intriguing new attribute of the AW 800 M is the ability to switch between mono, stereo and bi-amping operating modes, enabling you to upgrade your system or change your configuration while retaining your initial investment. Comfort upgrades are on/off switchable auto power down and switchable feature lighting, user switchable 115/230V mains voltage input as well as trigger input - ouput.

Improved CONSTRUCTION

The AW 800 M also features design upgrades, including a new front plate design with a 3D logo and the new power button design. The chassis has a new modular design construction and is re-engineered from the ground up.

The chassis design is enhanced by two black brushed aluminum rods over the top, which not only gives a much more rigid chassis, but also adds a beautiful decorative element. All housed in a matte luxurious finish that imparts the timeless Electrocompaniet look.

MADE IN NORWAY

SOUNDCARE® SUPERSPIKES™

is an all-in-one spike foot. The unique construction of the SuperSpikes eliminates the most common problem experienced when using a conventional spike: damaged surfaces, while offering the benefits of isolating the equipment from external vibrations in the environment.

Input impedance: 330 kΩ
Frequency resp. (in. filter active):0.5 – 220 kHz
Frequency resp. (in. filter dis.): 0.5 – 1.1 MHz
Voltage gain (mono, bal. input): 35 dB (x56)
Voltage gain (stereo, bal. input): 29 dB (x28)
Input-referred noise (20-20kHz): < 2 μV
SNR (ref. 1W/8Ω load, 20-20 kHz): 95 dB
SNR (ref. full power out, 20-20 kHz): 122 dB
Slew-rate (input filter disabled): 270 V/μs
DC output voltage: < 5 mV
THD+N: 0.0006 %
IMD: 0.001 %
Damping factor (8Ω load): > 1000
Power consumption standby: < 0.5W
Protection: DC, overload, temperature

RATED OUTPUT POWER STEREO:
8Ω load: 2 x 300 W
4Ω load: 2 x 600 W
2Ω load: 2 x 1000 W
RATED OUTPUT POWER MONO:
8Ω load: 800 W
4Ω load: 1500 W
2Ω load: 2200 W
WEIGHT & DIMENSIONS:
Weight: 55 kg – 122 lbs
Width: 406 mm – 15.98 inches
Depth: 488 mm – 19.21 inches
Height: 292 mm – 11.49 inches
*Features and specifications are subject to change without further notice.
