Product details

Description

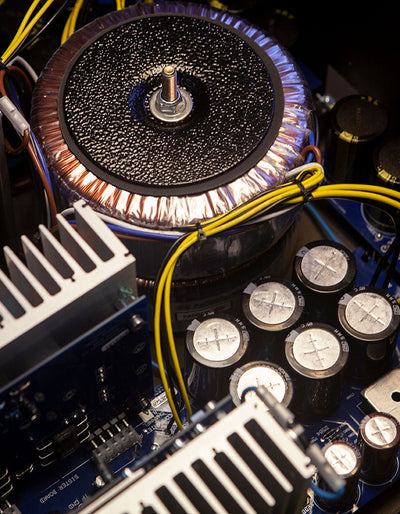

FLOATING TRANSFORMER TECHNOLOGY
A first class overall circuit design and state-of-the-art components.

PREMIUM QUALITY
100% Made in Norway
Every system is produced in our cutting-edge facilities on the west coast of Norway. Unlike other manufacturers, it is not only the design and assembly but also the complete production of the parts and components that is performed here. Producing the entire system right here in Norway allows us to ensure the highest possible quality.
Specifications

All measurements are made at 120V / 240V //50Hz / 60Hz
Amplifier section
Output Impedance (20 Hz - 20 kHz): < 0,008 ohm
XLR (balanced) input impedance: 110 kohm
Input sensitivity for rated output: 1 V
Max. peak current: > 100 A
THD (measured at 1 kHz half power, 8 W): < 0,001 %
THD (measured at 1 kHz -1 dB, 8 W): < 0,001 %
Noise (measured with both inputs shorted):
400 Hz - 30 kHz : 90 µV
10 Hz - 30 kHz : 100 µV

Rated output power
8 ohms: 2 x 250 W
4 ohms: 2 x 380 W
2 ohms: 2 x 625 W
1 ohms: 2 x 1100 W

Power consumption (no load or signal): 230 W

Dimensions
Width: 483 mm / 19 inches
Depth: 450 mm / 17 inches
Height: 210 mm / 8.2 inches
Weight: 39 kg. / 85.8 lbs.
