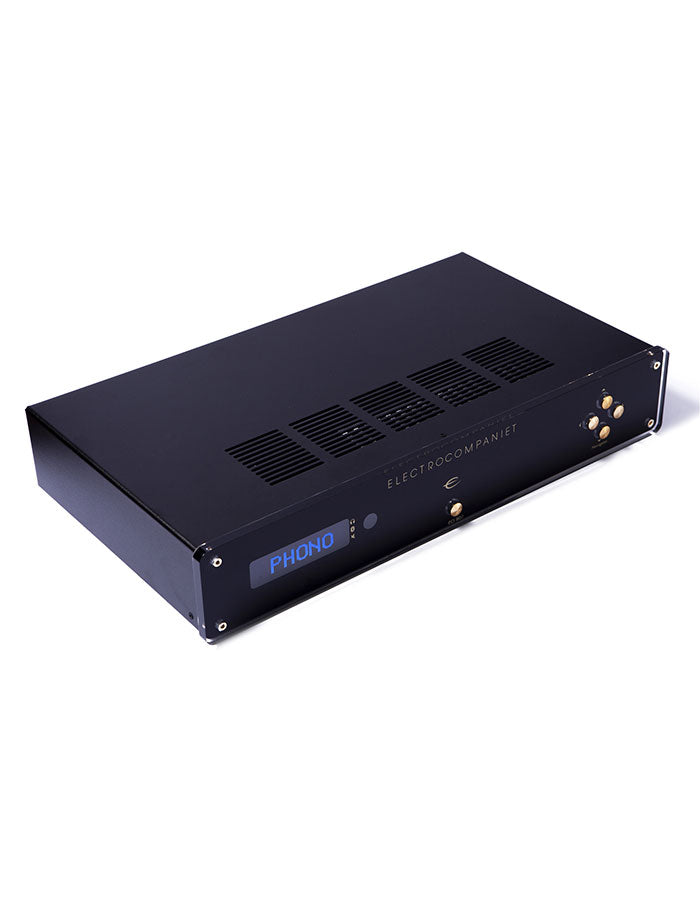

Electrocompaniet ECI 80D Integrated Amplifier
In stock
$3,900.00
The ECI 80D is Electrocompaniet's brand new, all-in-one integrated amplifier, offering 2x80 Watts into 8 Ohms and a robust 2x150Watts into 4 ohms, utilizing an proprietary in-house designed and developed Class A/B Amplifier.
It is equipped with a built-in phono stage enabling LP playback with MM cartridges, 2-way Bluetooth aptX-HD for both streaming from iOS, Android, Mac, or PC, and 2-way Bluetooth Streaming to enjoy wireless BT enabled headphones. All this and a 5 input DAC (3 Toslink, 2 COAX), that sounds simply sublime. Just add speakers and you are listening to your favorite music!
Connect Your Turntable - Built-in phono preamplifier with MM cartridge support enables you to connect your LP player directly to the ECI80D and enjoy your record collection.

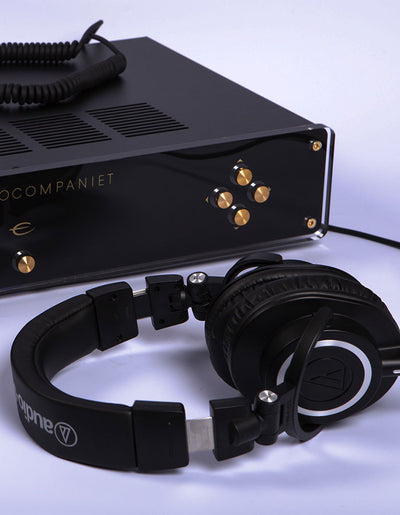

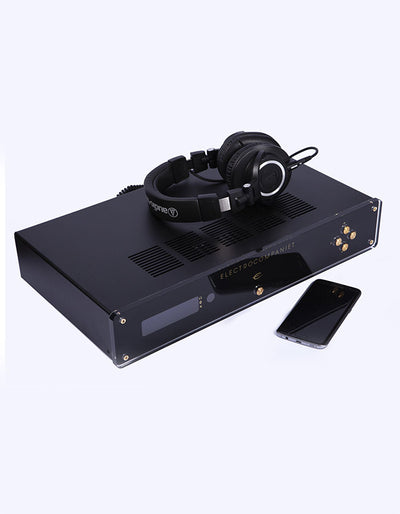

Dual Headphone Outputs - The ECI 80D has a built-in double headphone amplifier, enabling cabled headphone listening to 2 sets of headphones simultaneously!
HD Bluetooth Streaming- The ECI 80D supports HD Bluetooth streaming from your phone, tablet, PC or MAC. It also supports 2-way BT streaming to wireless Bluetooth headphones!

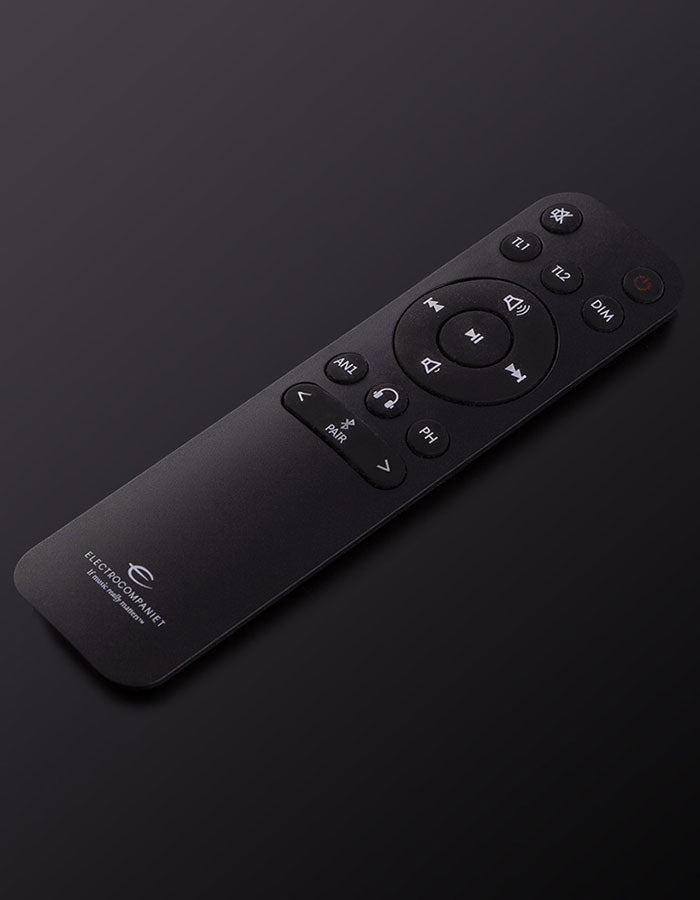

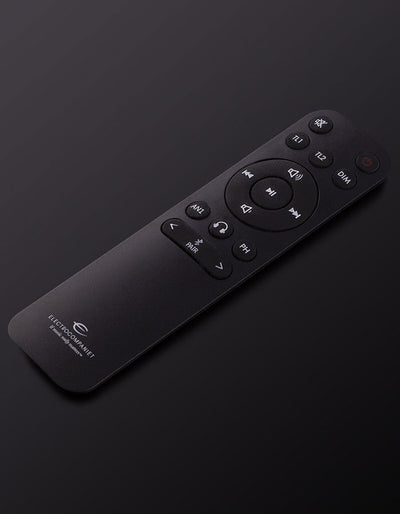

Remote Control - The ECI80D comes with a remote control, enabling you to control all its functions right from the comfort of your chair, sofa or couch.

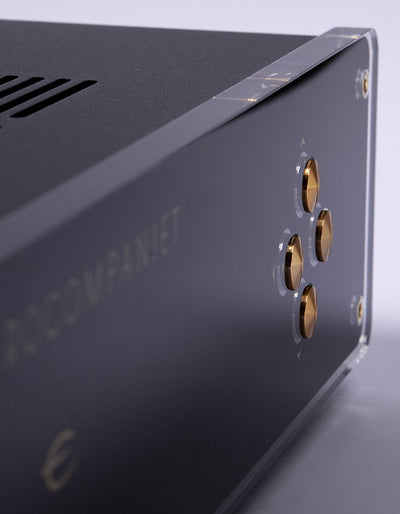

Attractive Form-Factor- ECI80D is an extremely substantial and dynamic integrated amplifier with an attractive form-factor, capable of controlling a wide range of speakers on the market.
| PREAMPLIFIER: |
| Input impedance: 75 kOhms |
| Noise floor:< -130dB |
| THD+N: < 0.002% |
| Frequency response (-3dB): 1 – 150 kHz |
| Volume adjustment range: - 110dB to +15 dB |
| OUTPUT AMPLIFIER: |
| THD+N: < 0.005% |
| Output power (into 8 Ohms): 2 x 80W |
| Output power (into 4 Ohms): 2 x 150W |
| Damping factor (8 Ohms load): > 300 |
| Frequency response (-3dB): 1 – 150kHz |
| SNR (input shorted, ref 1W into 8 ohms, A-weighted): 102 dB |
| Gain: 25 dB |
| Protection: DC, overload, temperature |
| RIAA PHONO: |
| Pickup support: Moving Magnet |
| Gain: 40 dB @ 1kHz |
| Input impedance: 47 kOhms || 100pF |
| RIAA correction accuracy: +/-0.1dB, 25-20kHz |
| Subsonic filter: -3 dB @ 14 Hz |
| THD: < 0.001% |
| SNR: 83 dB (A-weighted) |
| Overload margin: 30dB @ 1kHz |
| HEADPHONE AMPLIFIER: |
| THD+N: < 0.001% |
| Load impedance single output in use: > 16 Ohms |
| Load impedance both outputs in use: > 32 Ohms |
| Max output power (into 16 Ohms load): 0.4W |
| Max output voltage swing: +/-8V peak |
| Output impedance: 10 Ohms |
| Protection: DC, overload |
| DIGITAL & STREAMING: |
| Optical input: PCM: 44.1kHz/16bit up to 192kHz/24bit |
| Coaxial input: PCM: 44.1kHz/16bit up to 192kHz/24bit |
| Bluetooth support: BT5.0, A2DP, SBC, AAC, aptX-HD |

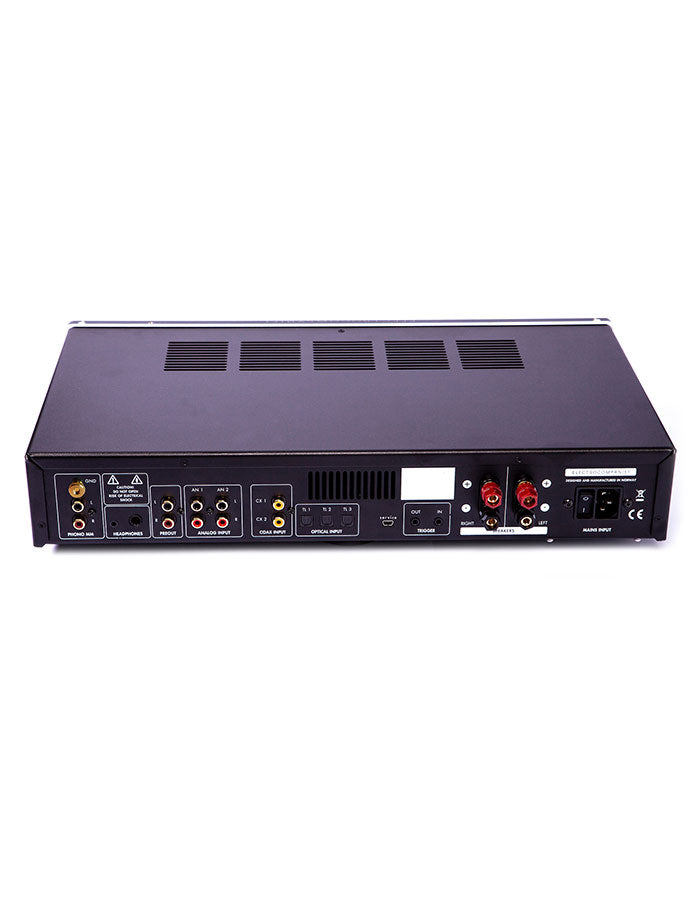

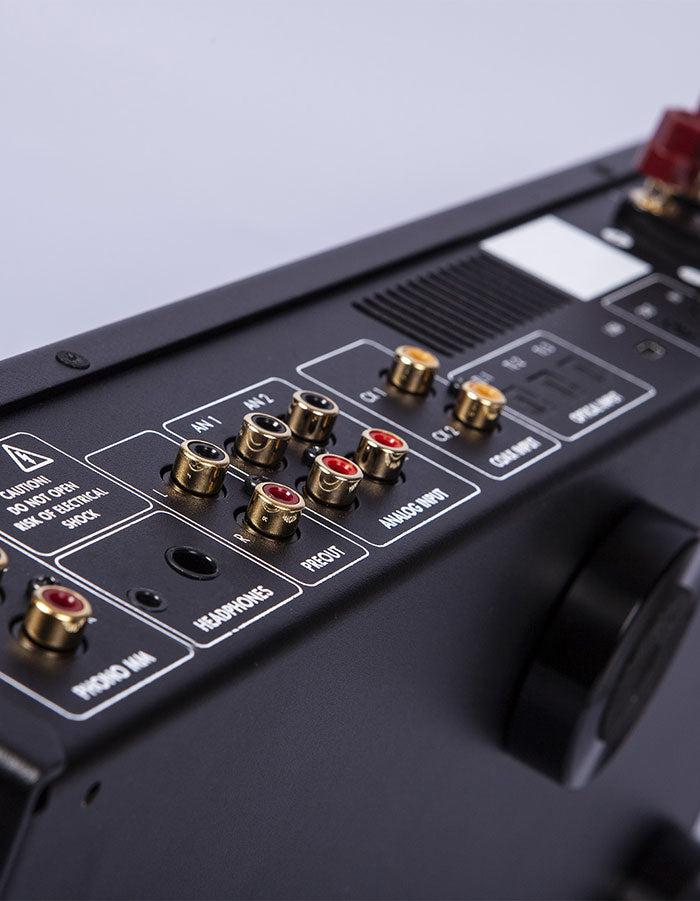

| CONNECTIVITY: |
| Digital inputs: 2 coaxial, 3 optical |
| Analog inputs: 2 RCA |
| Analog preamplifier output: 1 RCA |
| Service port: 1 USB |
| 12V trigger: 1 input, 1 output |
| Phono MM: 1 RCA |
| Headphone outputs: 3.5mm jack + 6.35mm jack |
| Speaker outputs: 1 pair binding posts |
| WEIGHT & DIMENSIONS: |
| Weight: 8 kg – 17.6 lbs |
| Width: 470 mm – 18.5 inches |
| Depth: 262 mm – 10.3 inches |
| Height: 90 mm – 3.5 inches |
| VOLTAGE & POWER CONSUMPTION: |
| Mains input voltage: 100-240VAC, 50/60Hz, 3A |
| Idle (no load or signal): 30 W |
| Standby: < 0.5 W |
| OFF (main switch OFF): 0 W |
| *Specifications are subject to change without further notice |
