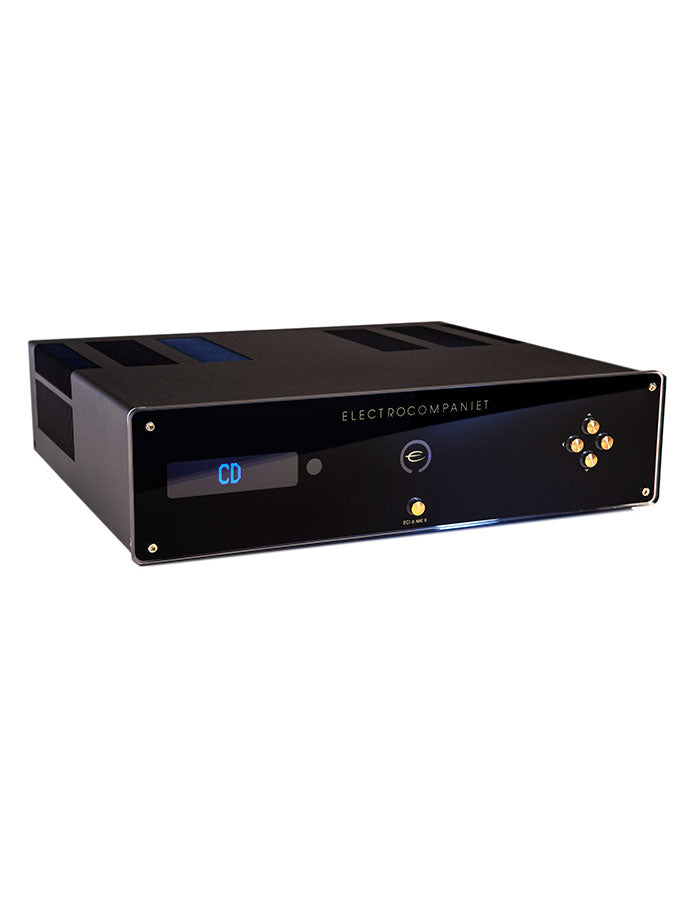

Electrocompaniet ECI 6 MK II Integrated Amplifier

Electrocompaniet ECI 6 MK II Integrated Amplifier

AvailabilityIn stock

$6,200.00

The new ECI 6 MKII is a powerful integrated amplifier equipped with 4 analogue inputs. The ECI 6 MKII offers 2 x 125 Watts into 8 ohms, 2x 200 watts into 4 ohms, and 2x 370 watts into 2 ohms, and is based on it's successful ECI 5 MK II predecessor. To enhance the design further, Electrocompaniet has equipped the ECI 6 MKII with an improved and enhanced power supply along with a more sophisticated preamplifier module.

As a result ECI 6 MKII offers the discerning audio enthusiast an extremely substantial and dynamic amplifier, capable of controlling a wide range of speakers on the market.

Description
Specifications
Media Reviews

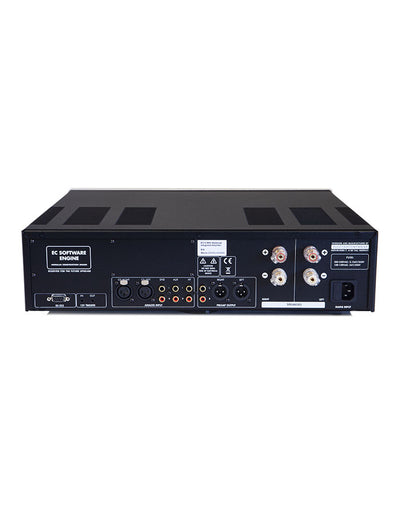

Connectivity- Analogue sources can be connected to one balanced (XLR) input and three single-ended (RCA) stereo inputs. With two preamplifier outputs, one balanced and one single ended, the ECI6-MKII is ready for future expansions.

Balanced Sound-The input stage is built from discrete circuits running in class A with zero feedback. The output stage runs with moderate amounts of negative feedback, carefully balanced between good bass extension and control, a detailed open midrange and a warm detailed top.

Modular Construction- The ECI 6 MKII is upgradable to ECI 6 DX MKII. Please contact your dealer for pricing and availability.

Preamplifier section
Input impedance ( Balanced input )	47Kohm
Maximum input level	10 Volt RMS
Noise floor ( 1Vrms, 20 - 20 kHz, balanced)	-135 dB
THD + N (1Vrms, 20 - 20 kHz, balanced)	<0.004%
Gain (Balanced)	0 dB

Amplifier section
Output Impedance	< 0,02 Ohm
Frequency response	1 – 150 kHz
Channel separation	> 120 dB
THD ( 20 - 20 kHz)	< 0.004%
Maximum peak current	>100A
Damping factor 8 ohm load	>350
I Input sensitivity 120W output	1.3Vrms
Input sensitivity HT 120W output	1Vrms
Gain HT Input	x36 (31 dB)
Rated output power
8 ohms	2 x 125 W
4 ohms	2 x 200 W
2 ohms	2 x 370 W
Power consumption	110 W
Standby	1W
(no load or signal)

Dimensions
Width	470 mm / 18.3 inches
Depth ( with a speaker terminals)	430 mm / 16,9 inches
Height	128 mm / 5 inches
Weight	20,5 Kg / 45 lbs.
