Musical Surroundings Nova III Phono Stage with Linear Power Supply
1 In stock
Audio Art Cable USA
MUSICAL-SURROUNDINGS-NOVA III-LINEAR POWER SUPPLY-1

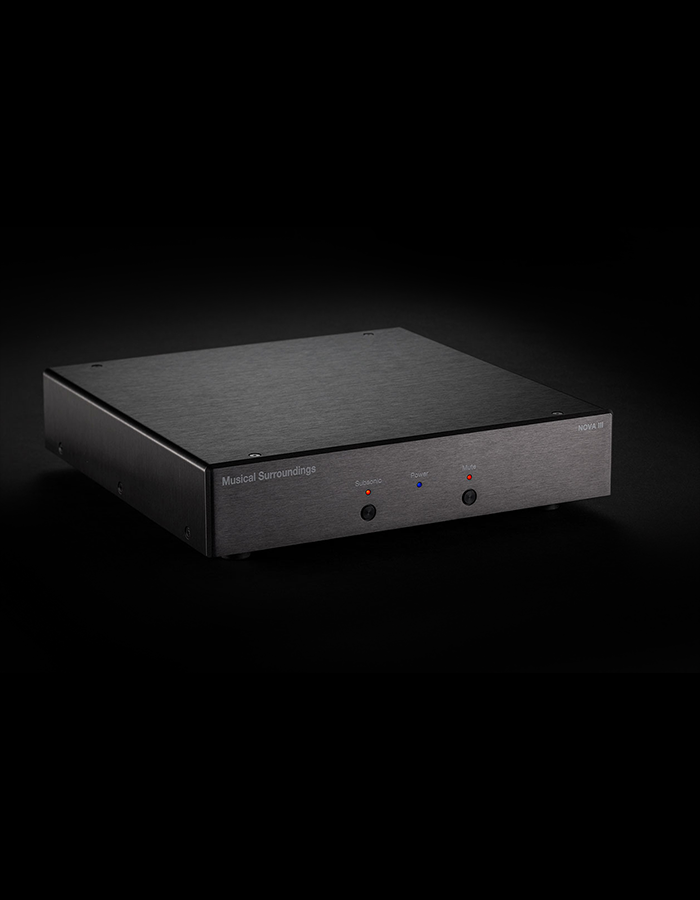

Built in California, the Nova III is the latest version of our larger phono stage with incredible flexibility and performance, delivering the best sound in its price range.

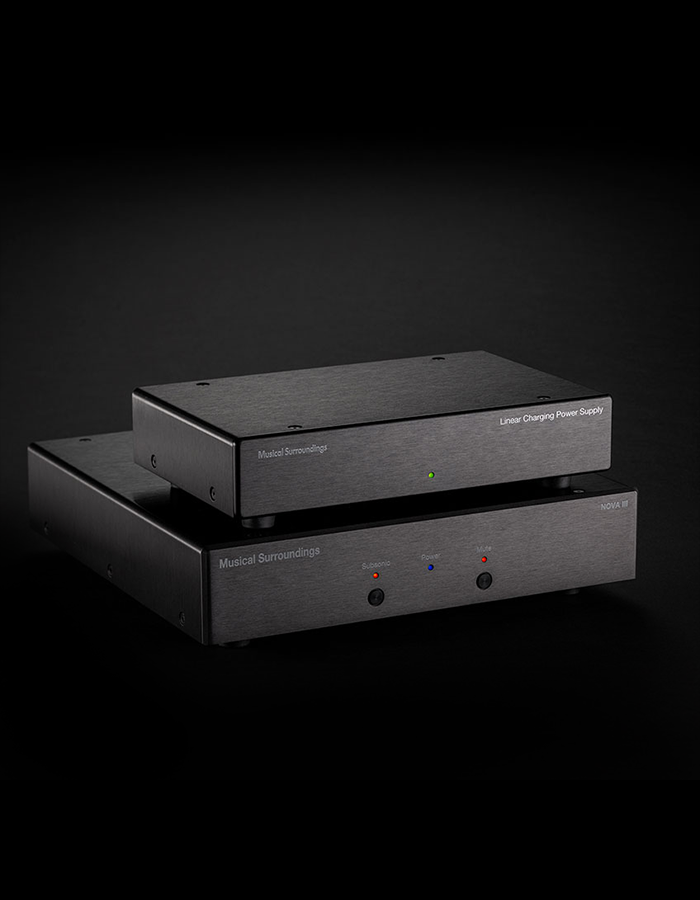

Michael Yee’s continued research into power supply designs has resulted in our Linear Power Supply (LPS). It was originally designed as a “no holds barred” power supply for charging the battery packs of our flagship Super Nova III phono stage. It is a “Classic Analog Power Supply” that uses a 50/60 Hz transformer, large storage capacitors, and low noise linear Voltage Regulators, all designed to achieve the goal of reducing noise for the best sound from an Audiophile Turntable System.
Mint Condition demo with low hours. Full manufacturer’s warranty.
Like the Phonomena II+, the Nova III has rear panel switches for easily accessible and highly flexible gain and loading adjustment. The Nova III incorporates a large, regulated internal power supply providing greater dynamics and image dimensionality, replacing the batteries used in previous generations. Further performance enhancements are available by adding the optional Linear Charging Power Supply. Audio Circuit Highlights • Super Matched Pair/Low Noise input devices • Hybrid RIAA Equalization • Michael Yee proprietary Subsonic filter • Micro-processor control for Mute and Subsonic • Multiple gain settings with 65dB maximum • Extensive loading settings on rear panel New Internal Power Supply • Super Low Noise voltage regulation • Isolated DC to DC converter • Dual Inductor de-coupling • 10,000µf of regulation • Polypropylene bypass capacitors • Linear Charging Power Supply (optional) • Black or Silver finish • Made in California
When used to power the Phonomena 2, Phonomena 2+, and Nova III phono stages, the LPS will dramatically improve their sound by providing cleaner power and eliminating the noise from a Digital Switching Power Supply. This switching noise is higher in frequency than the audio signals and can modulate the actual audio signal. The Power Supply Voltages may also have the switching noise on them. A Digital Power Supply also radiates via Magnetic Field Emissions that can be transmitted to other components in the Audio System. The LPS uses a Tamura Transformer to convert the line voltage to a usable voltage for the Musical Surroundings Solid State Preamps. Tamura Transformers are very well known for use in Tube Amplifiers, Tube Power Supplies and other audio circuits. Large filter capacitors and rectifiers are part of a noise reduction circuit before Ultra Low Noise, Low Dropout, Precision Voltage Regulators (Linear Technologies LT1965, LT3015). A Single Supply Connection (+22.5V) is supplied for Phonomena II, Phonomena II+, and Nova III. A multi-pin Split Supply Connection (+/-11.25V) is supplied for the Super Nova III and future designs.
Gain Switches (dB): 40, 44, 46, 48, 50, 51.5, 52.7, 53.7, 56, 57.5, 58.4, 59.4, 60
Input Load Switches (Ohms): 200pF/300pF, 30, 40, 50, 59, 80, 100, 121, 150, 243, 280, 380, 475, 660, 1k, 2k, 47k, 100k
Dimensions: 9 7/8”w x 9 7/8”d x 2.5”h
Weight: 5 lbs
Linear Power Supply
Dimensions: 8.5"w x 6"d x 2"h
Weight: 3 lbs
